JS 28 (7800824) - John Deere 22" Walk-Behind Mower (2012) Engine Group (7502555) Parts Diagram

22" Walk-Behind Mower

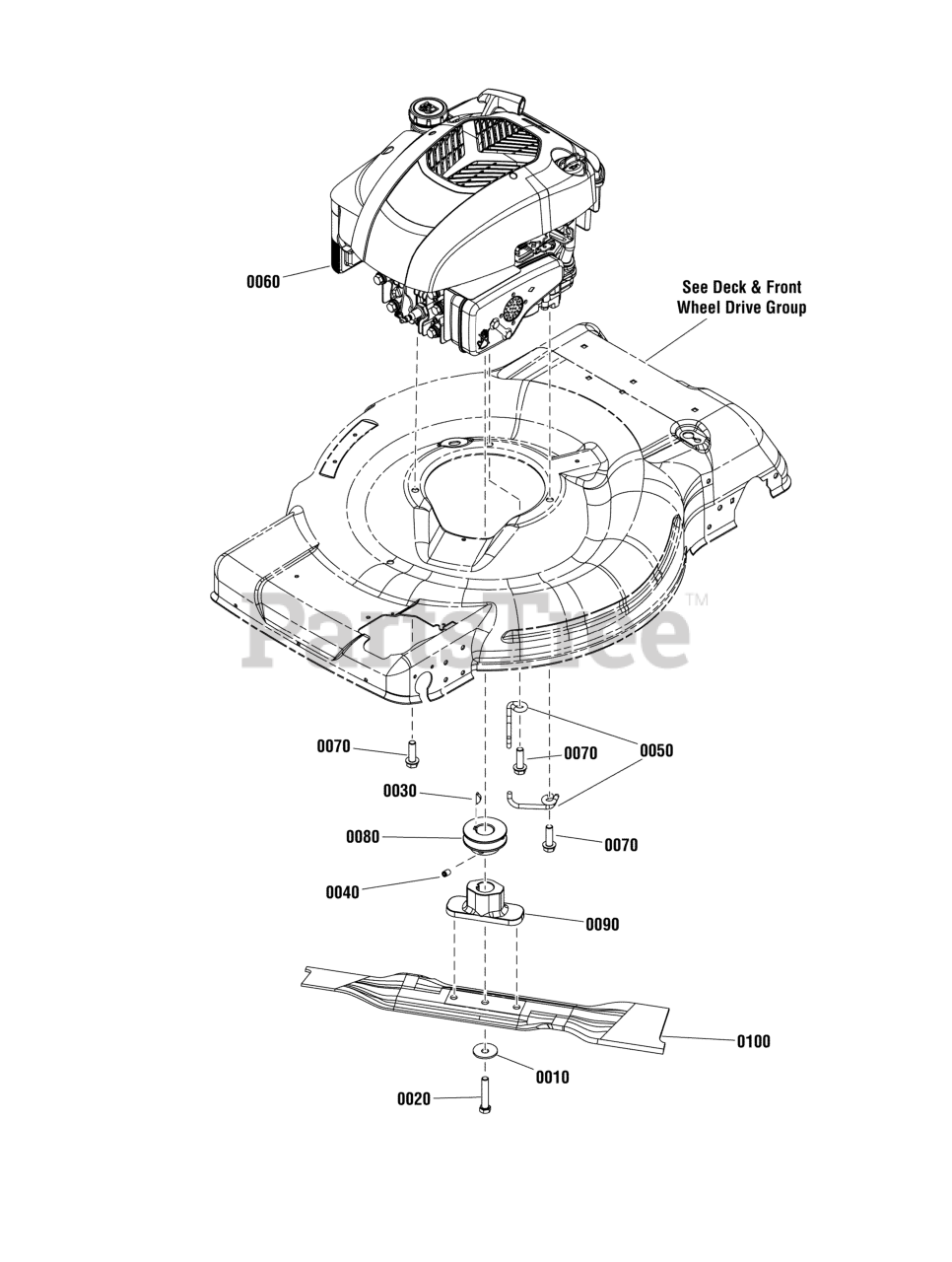

Engine Group (7502555) Parts Diagram

  • Title

0010

Murray 7012063SM

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

0020

Murray 7090167SM

SCREW, 3/8-24 x 2" Hex Head Cap, GR 5

$3.99

$

Usually ships in 2-12 days

0

0030

Murray 7091214YP

KEY, Hi-Pro, HP-506

$4.99

$

In Stock, only 1 left!

0

0040

Murray 7092086YP

SET SCREW, 5/16-18 x 1/2", Hex Recess

$4.99

$

Usually ships in 2-12 days

0

0050

Murray 7103517YP

BELT GUIDE, Engine, Front Wheel Drive

$3.49

$

Usually ships in 2-12 days

0

0060

Murray 128M02-0423-F1

* ENGINE, B&S Quantum, 7.25 Gross Torque

Note: (Engine Model: 128M02-0423-F1)

$

$

Currently unavailable

0060

Murray 128M02-0130-F1

* ENGINE, B&S Quantum, 7.25 Gross Torque

Note: (Engine Model: 128M02-0130-F1)

$

$

Currently unavailable

0070

Murray 7900072YP

SCREW, Hex Washer Self Tap, 3/8-16 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

0080

Murray 7105122YP

** PULLEY, Engine

$40.99

$

In Stock, only 1 left!

0

0090

Murray 7104332YP

** HUB, Blade, 22" Deere WBM

$16.99

$

Usually ships in 2-12 days

0

0100

Murray 7104331AYP

BLADE, Wave, 22" Deck, John Deere

$45.99

$

In Stock, only 1 left!

0
