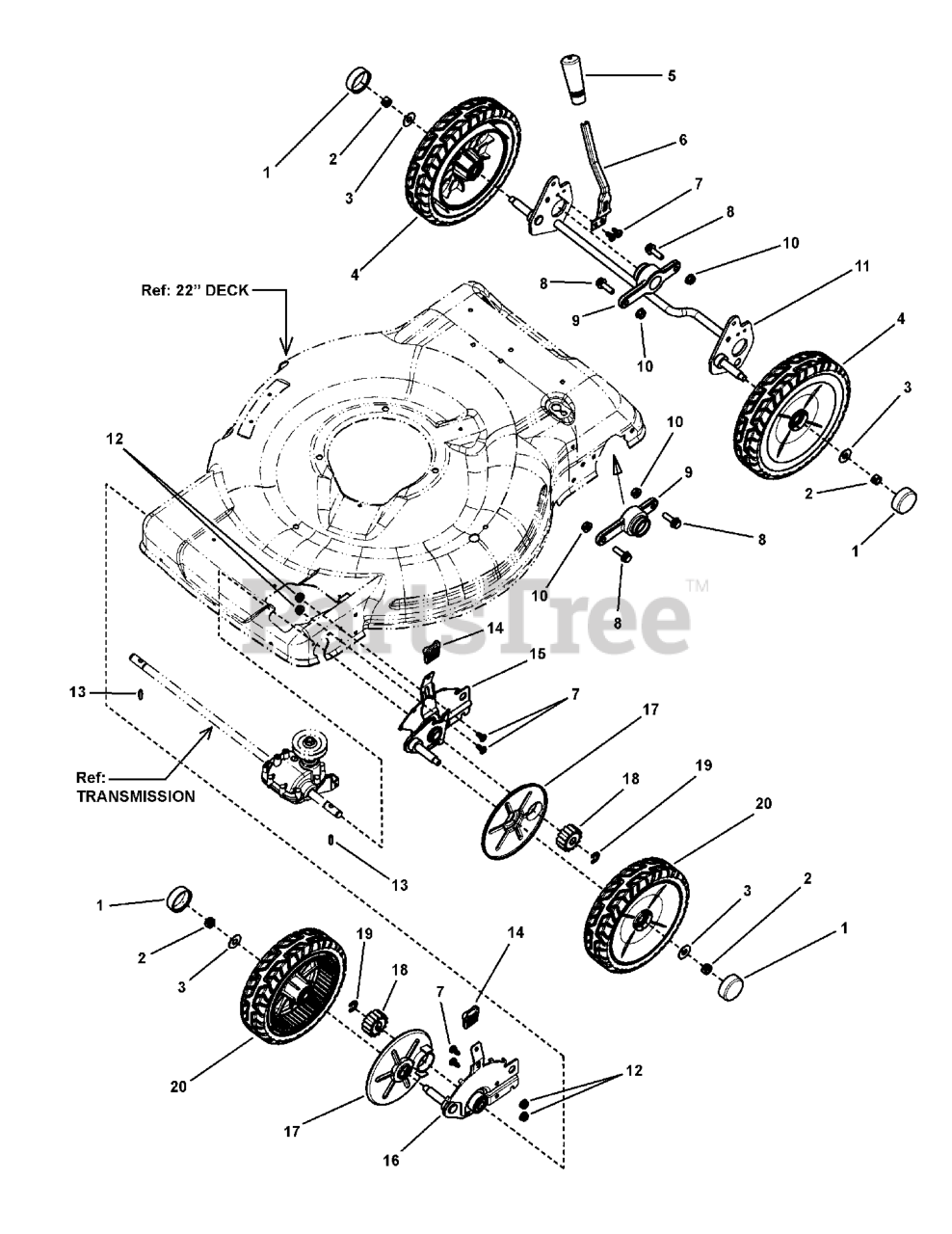

JS 26 (7800574) - John Deere 22" Walk-Behind Mower (2010) Group, Wheel, 3PT HOC, FWD, Deere Parts Diagram

22" Walk-Behind Mower

Group, Wheel, 3PT HOC, FWD, Deere Parts Diagram

  • Title

1

Murray 7101391YP

HUBCAP, ROUND, JD YELLOW

$4.49

$

In Stock, Qty 20+

0

2

Murray 1960251SM

HCLN - JAM - 3/8-16 YZ
(Superseded to 703230)

$4.99

$

In Stock, Qty 12

0

3

Murray 17X169MA

WASHER, FLAT, 1" OD X .387 ID
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

4

Murray 7500646YP

ASSY, WHEEL, W/BEARING 9" JD TRD, D YELLOW

Note: (Includes Ref. No. 21)

$45.99

$

In Stock, Qty 14

0

5

Murray 671297MA

GRIP HOC

$6.49

$

In Stock, only 1 left!

0

6

Murray 7103289YP

LEVER, SPRING, HOC

$11.99

$

In Stock, only 2 left!

0

7

Murray 7900067YP

TORX ST, 1/4-20 X .550

$4.49

$

In Stock, Qty 20+

0

8

Murray 7091591SM

HFLB, 5/16-18 X 1 YZ
(Superseded to 703410)

$4.49

$

In Stock, only 2 left!

0

9

Murray 7103290YP

HOLDER, BEARING, RWD

$13.99

$

Usually ships in 2-12 days

0

10

Murray 7091601SM

FLN, 5/16-18 YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

11

Murray 7400259YP

WELDMENT, REAR CROSSBAR, RWD

$152.99

$

In Stock, only 1 left!

0

12

Murray 7091584SM

HFLN, 1/4 X 20 YZ
(Superseded to 703233)

$4.49

$

In Stock, Qty 9

0

13

Murray 7101270YP

PIN, DRIVE, 22" WBM FWD

$5.49

$

In Stock, only 2 left!

0

14

Murray 7103793YP

GRIP, HT LATCH, BLACK

$4.49

$

In Stock, Qty 9

0

15

Murray 7600104YP

ASSY, HOC, LF, 22" WBM, PROPELLED

$

$

Not available

16

Murray 7600105YP

ASSY, HOC, RF, 22" WBM, PROPELLED

$82.99

$

In Stock, only 1 left!

0

17

Murray 7101402YP

SHIELD, DUST, 22" WBM, FWD

$7.49

$

In Stock, only 2 left!

0

18

Murray 7101207YP

GEAR, PINION, 22" WBM, FWD

$8.49

$

In Stock, only 2 left!

0

19

Murray 7014341YP

RETAINING RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

20

Murray 7501540YP

ASSY, WHEEL, 8X2 DRIVE JD TREAD, BB, JD YELLOW

Note: (Includes Ref. No. 21)

$39.99

$

In Stock, only 2 left!

0

21

Murray 7101380YP

BALL BEARING, 1-1/8"OD, FLANGE
(Superseded to 071579MA)

Note: (Not Illustrated)

$40.99

$

In Stock, only 1 left!

0
