JS 1150 (24A-67M4756) - Cub Cadet Jet Sweep Walk-Behind Blower (2014) General Assembly Parts Diagram

Jet Sweep Walk-Behind Blower

General Assembly Parts Diagram

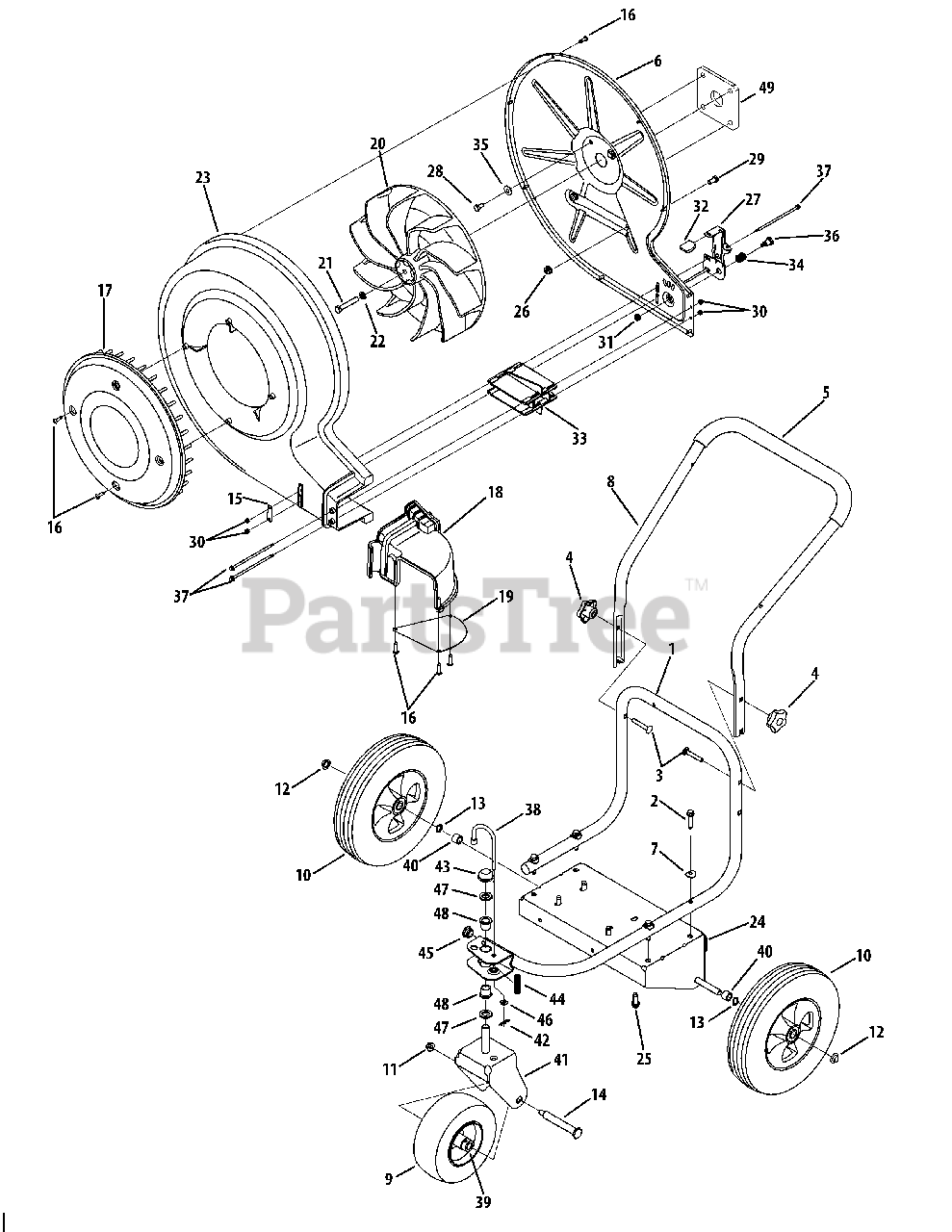

  • Title

1

Cub Cadet 681-04086-4021

Lower Handle Assembly

$105.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-04605A

Hex Screw, 5/16-18 x 1.50
(Superseded to 710-04605B)

$6.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0487

Carriage Screw, 5/16-18 x 2.00

$7.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 720-04072A

Star Knob, 5/16-18

$6.99

$

In Stock, Qty 20+

0

5

Cub Cadet 720-04091

Foam Grip, .970 x 25

$21.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 781-04165-4021

Back Plate
(Superseded to 781-04165A-4021)

$73.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 936-0451

Saddle Washer, .320 x .93 x .060
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

8

Cub Cadet 749-04291-4021

Upper Handle

$56.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 734-04278

Wheel, 8 x 3

$103.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 734-04279

Wheel, 12 x 3, Beige

$98.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 726-0299

Push Cap, 1/2"

$8.49

$

In Stock, Qty 20+

0

13

Cub Cadet 936-0504

Wave Washer, .510 x .750 x .017

$4.49

$

In Stock, Qty 9

0

14

Cub Cadet 738-04290

Shoulder Screw, .625 x 3.94

$13.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 781-04212-0637

Guide Plate

$7.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-04373A

Hex Screw, 12-16 x .75

$4.49

$

In Stock, Qty 15

0

17

Cub Cadet 731-05929

Blower Cover

$40.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 631-04253

Chute Assembly

$37.99

$

In Stock, only 1 left!

0

19

Cub Cadet 781-04175-4021

Chute Plate

$9.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 631-04213

Impeler Assembly

$160.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-1254

Hex Screw, 3/8-24 x 2.25

$7.99

$

In Stock, Qty 8

0

22

Cub Cadet 936-0217

Lock Washer, 3/8
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 8

0

23

Cub Cadet 731-05592

Blower Housing

$79.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 681-04084A-4021

Frame

$88.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 710-0654A

Sems Screw, 3/8-16 x 1.000

$4.49

$

In Stock, only 4 left!

0

26

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 5

0

27

Cub Cadet 781-04181-4021

Louver Lever
(Superseded to 781-04181B-4021)

$25.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 710-0117A

Hex Head Screw, 5/16-24 x 1.00

$5.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 710-3008

Hex Bolt, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 712-04035

Hex Lock Nut, #8-32

$4.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 720-0426

Height Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

33

Cub Cadet 731-05644

Louver Plate

$8.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 932-3042

Comp. Spring, .515 x .641 x .95

$4.99

$

In Stock, only 1 left!

0

35

Cub Cadet 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 738-04222

Shoulder Screw, .437 x .50 x 1/4-20

$2.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 738-04223

Shoulder Screw, .18 x 4.8 x 8-32

$4.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 747-0924

Lock Pin

$20.99

$

In Stock, only 1 left!

0

39

Cub Cadet 941-0706

Flange Bearing w/ Fitting

$8.49

$

In Stock, Qty 7

0

40

Cub Cadet 750-04854

Spacer, .525 x .775 x .560

$3.49

$

In Stock, only 2 left!

0

41

Cub Cadet 681-04085-4021

Caster Wheel Bracket Assembly

$66.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 726-0214

Push Cap

$10.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 932-0306A

Compr. Sprng., .531 OD x 1.75 Lg

$8.49

$

In Stock, only 4 left!

0

45

Cub Cadet 735-0246A

End Plug

$5.99

$

In Stock, only 1 left!

0

46

Cub Cadet 936-0264

Washer, Flat, .330 x .630 x .0635

$6.99

$

In Stock, only 3 left!

0

47

Cub Cadet 736-0366

Washer, Flat, .640 x 1.12 x .125

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 741-0685

Flange Bearing, .631 ID

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 781-04292-0637

Engine Plate

$8.99

$

Usually ships in 3-6 days

0

Cub Cadet 723-0400

Safety Glasses

Note: (Not Shown)

$26.99

$

Usually ships in 3-6 days

0
