JS 1150 (24A-67M4710) - Cub Cadet Jet Sweep Walk-Behind Blower (2016) Handle Parts Diagram

Jet Sweep Walk-Behind Blower

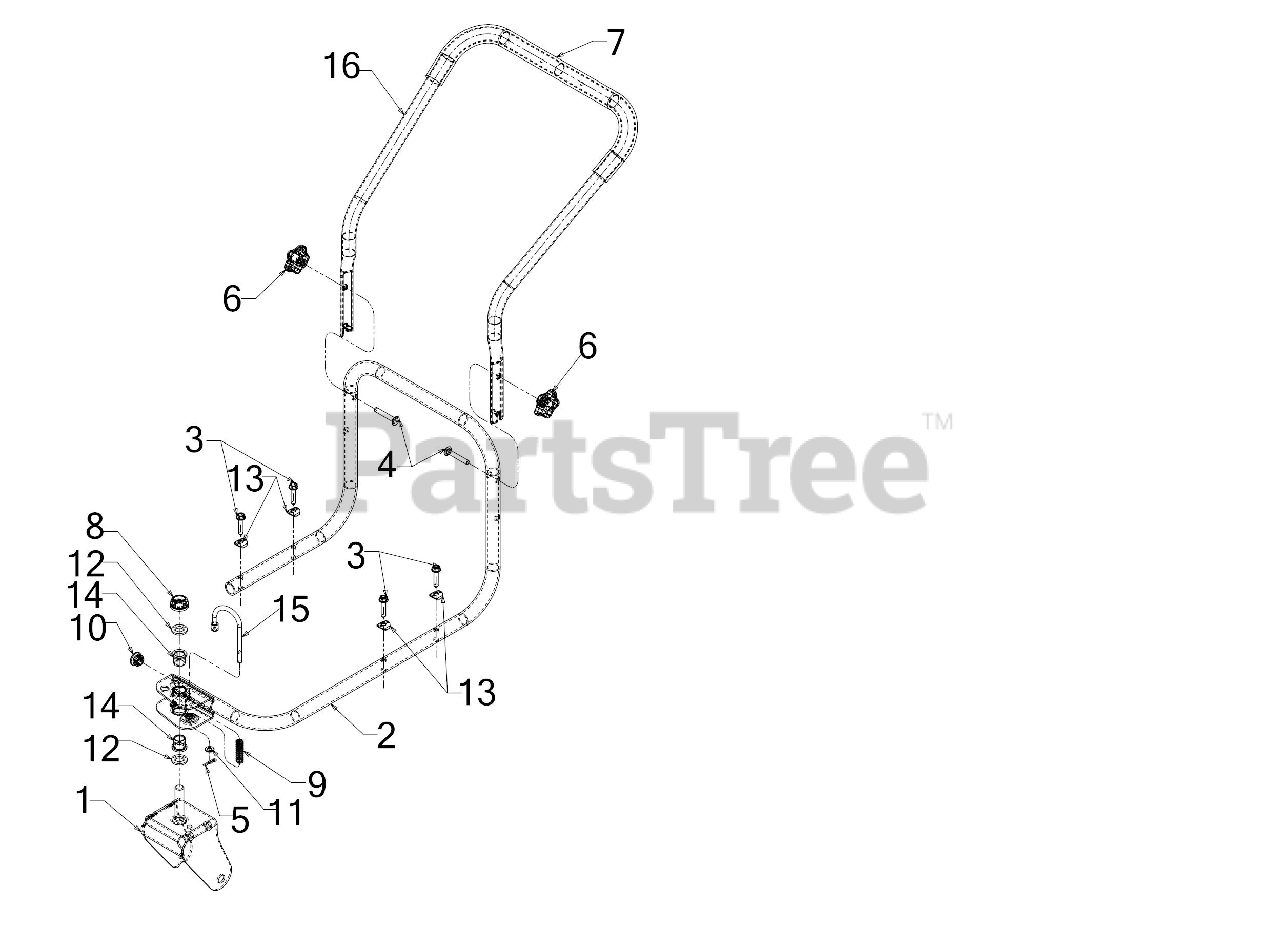

Handle Parts Diagram

  • Title

1

Cub Cadet 681-04085-4021

WHEEL BRACKET ASSEMBLY

$66.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 681-04086-4021

LOWER HANDLE ASSEMBLY

$105.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 736-0931

FLAT WASHER .203 ID x .41 OD x .040

Note: (Not Shown)

$4.99

$

In Stock, only 1 left!

0

2

Cub Cadet 937-3000

GREASE FITTING

Note: (Not Shown)

$4.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-04605B

HEX SCREW WASHER 5/16-18 x 1.5

$6.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0487

BOLT 5/16-18 x 2.00 GR5

$7.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 914-0104

COTTER PIN .072 DIA
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 720-04072A

STAR KNOB 5/16-18

$6.99

$

In Stock, Qty 20+

0

7

Cub Cadet 720-04091

FOAM GRIP

$21.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 726-0214

PUSH CAP

$10.99

$

In Stock, only 4 left!

0

9

Cub Cadet 932-0306A

COMPRESSION SPRING

$8.49

$

In Stock, only 4 left!

0

10

Cub Cadet 735-0246A

END PLUG

$5.99

$

In Stock, only 1 left!

0

11

Cub Cadet 936-0264

FLAT WASHER

$6.99

$

In Stock, only 3 left!

0

12

Cub Cadet 736-0366

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 936-0451

SADDLE WASHER
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

14

Cub Cadet 741-0685

BEARING:FLANGE .631 ID

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 747-0924

LOCK PIN

$20.99

$

In Stock, only 1 left!

0

16

Cub Cadet 749-04291-4021

UPPER HANDLE BLOWER

$56.99

$

Usually ships in 3-6 days

0
