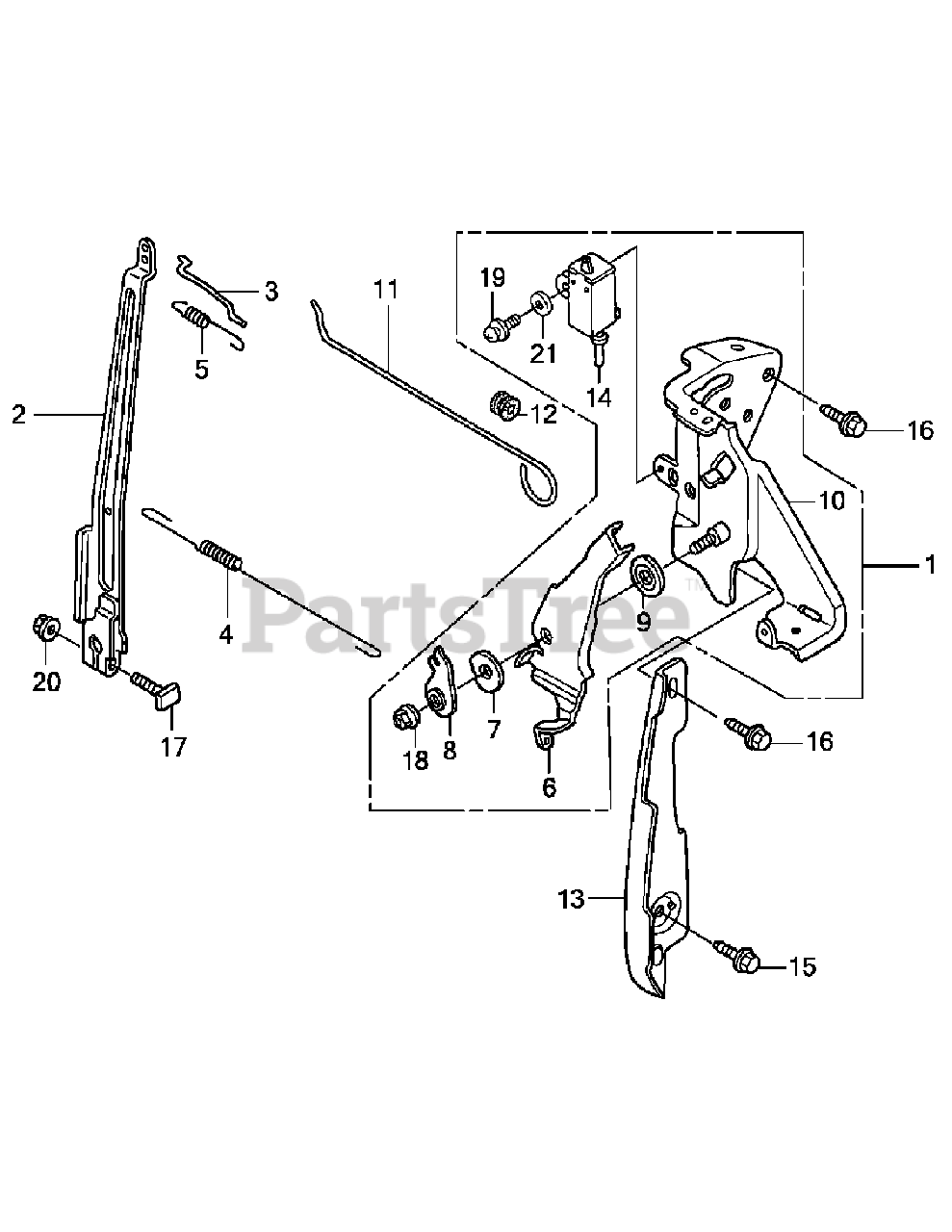

JS 1150 (24A-677E710) - Cub Cadet Jet Sweep Walk-Behind Blower (2009) GC160 Control Parts Diagram

Jet Sweep Walk-Behind Blower

GC160 Control Parts Diagram

  • Title

1

Honda 16500-ZL8-000

Control Assembly

$46.99

$

Usually ships in 3-6 days

0

2

Honda 16551-ZL8-000

Arm, Governor
(Superseded to 16551-ZL8-010)

$3.49

$

In Stock, only 2 left!

0

3

Honda 16555-ZL8-000

Rod, Governor

$2.99

$

In Stock, Qty 5

0

4

Honda 16561-Z0J-000

Spring, Governor

$0.99

$

In Stock, Qty 5

0

5

Honda 16562-ZL8-800

Spring, Throttle Return

$2.49

$

In Stock, only 3 left!

0

6

Honda 16571-ZL8-000

Lever, Control

$15.99

$

Usually ships in 3-6 days

0

7

Honda 16574-ZE1-000

Spring, Lever

$4.49

$

Usually ships in 3-6 days

0

8

Honda 16575-ZL8-000

Washer, Control Lever

$2.99

$

In Stock, only 3 left!

0

9

Honda 16578-ZE1-000

Spacer, Control Lever

$5.49

$

In Stock, only 4 left!

0

10

Cub Cadet N/A

Base Complete, Control

Note: Order Ref. # 1

$

$

Currently unavailable

11

Honda 16611-ZL8-000

Rod, Choke Control

$2.99

$

In Stock, only 2 left!

0

12

Honda 16613-893-000

Grommet, Choke Rod

$3.99

$

In Stock, Qty 20+

0

13

Honda 19612-Z0L-000

Plate, Side

$17.99

$

In Stock, only 1 left!

0

14

Honda 35120-ZL8-003

Switch Assembly, Engine Stop

$14.99

$

In Stock, only 1 left!

0

15

Honda 90013-883-000

Bolt, Flange 6 x 12 (CT200)

$2.49

$

In Stock, Qty 17

0

16

Honda 90014-952-000

Bolt, Flange 6 x 14 (CT200)

$3.49

$

In Stock, only 3 left!

0

17

Honda 90015-ZE5-010

Bolt, Governor Arm

$3.49

$

In Stock, only 3 left!

0

18

Honda 90114-SA0-000

Nut, Self-Lock 6mm

$4.49

$

In Stock, Qty 20+

0

19

Honda 93892-04012-00

Screw-Washer 4 x 12

$0.99

$

In Stock, Qty 8

0

20

Honda 94050-06000

Nut, Flange 6mm

$0.99

$

In Stock, Qty 20+

0

21

Honda 94103-04000

Washer, Plain 4mm

$0.99

$

In Stock, Qty 7

0
