JS 1150 (24A-677E710) - Cub Cadet Jet Sweep Walk-Behind Blower (2007) General Assembly Parts Diagram

Jet Sweep Walk-Behind Blower

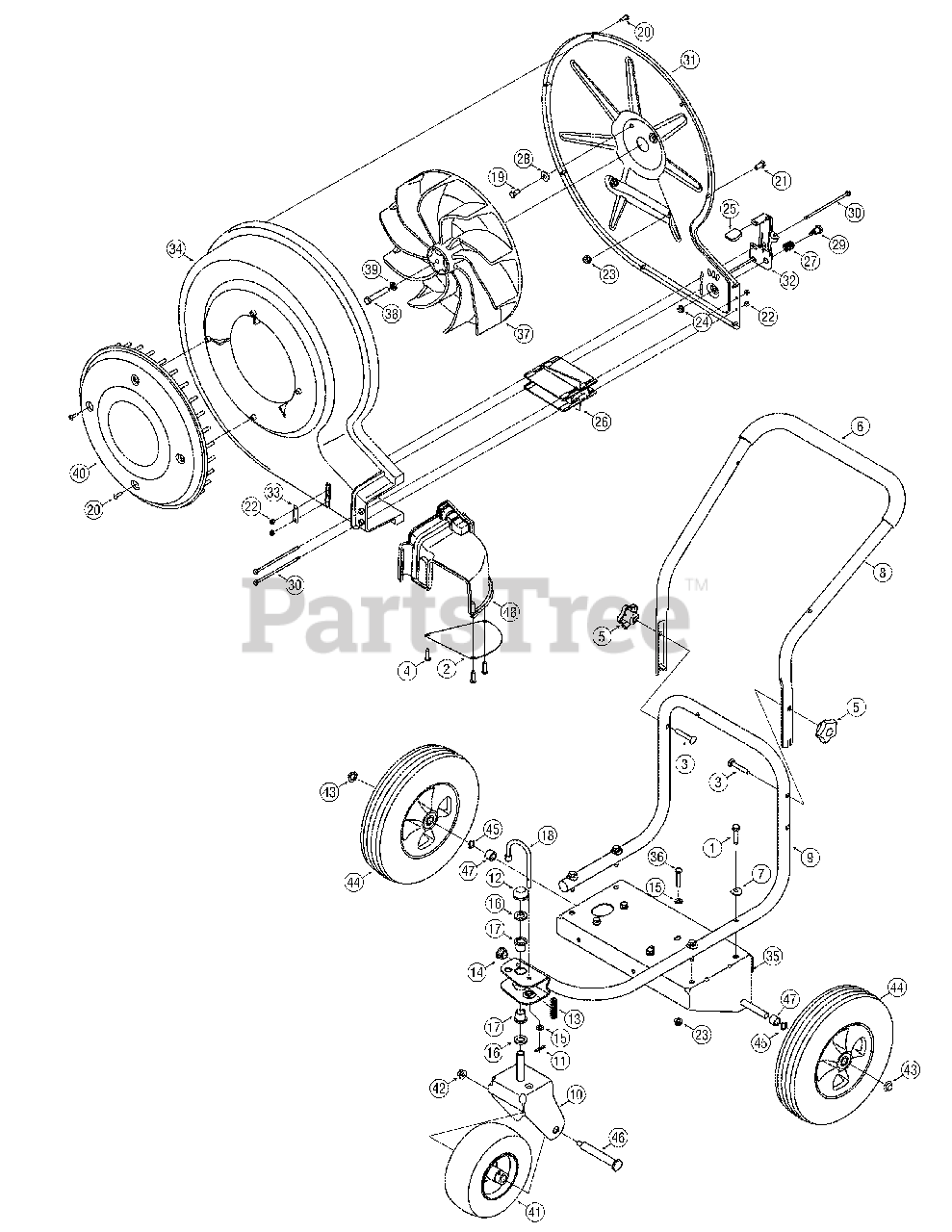

General Assembly Parts Diagram

  • Title

1

Cub Cadet 710-04605

TT Screw, 5/16-18 x 1.50
(Superseded to 710-04605B)

$6.99

$

In Stock, Qty 20+

0

2

Cub Cadet 781-04175

Chute Plate

Variations

Cub Cadet 781-04175-4021

Discharge Chute Plate - CUB YELLOW 2 (4021)

$9.49

$

Usually ships in 3-6 days

0

Cub Cadet 781-04175-0638

Discharge Chute Plate - MTD/TROY-BILT RED (0638)

$9.49

$

Usually ships in 3-6 days

0

Cub Cadet 781-04175-0606

Discharge Chute Plate - MAJESTIC ORANGE (0606)

$8.99

$

Usually ships in 3-6 days

0

$7.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0487

Carriage Screw, 5/16-18 x 2.00

$7.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-1220

Screw, #12-16 x .750

Note: 2008 & Before

$4.99

$

In Stock, only 4 left!

0

4

Cub Cadet 710-04373A

Screw, #12-16 x .75

Note: 2009 & After

$4.49

$

In Stock, Qty 15

0

5

Cub Cadet 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

6

Cub Cadet 720-04091

Foam Grip

$21.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 736-0451

Saddle Washer, .320 x .93 x .060

$4.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 749-04291

Upper Handle

Variations

Cub Cadet 749-04291-0606

HNDL-UPPER BLOWER - MAJESTIC ORANGE (0606)

$56.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-04291-0638

HANDLE-UPPER BLOWER - MTD/TROY-BILT RED (0638)

$56.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-04291-0691

HANDLE-UPPER BLOWER - BLACK JACK (0691)

$56.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-04291-4021

HANDLE-UPPER BLOWER - CUB YELLOW 2 (4021)

$56.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 681-04086

Lower Handle

Variations

Cub Cadet 681-04086-0606

HNDL ASM-BLWR LWR - MAJESTIC ORANGE (0606)

$105.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-04086-4021

HANDLE ASSY-LOWER - CUB YELLOW 2 (4021)

$105.99

$

Usually ships in 3-6 days

0

$91.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 681-04085

Caster Wheel Bracket Assembly

Variations

Cub Cadet 681-04085-0606

BRACKET ASM-WHEEL - MAJESTIC ORANGE (0606)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-04085-0638

BRACKET ASM-WHEEL - MTD/TROY-BILT RED (0638)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-04085-4021

BRACKET ASSY-WHEEL - CUB YELLOW 2 (4021)

$66.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 726-0214

Push Cap

$10.99

$

In Stock, only 3 left!

0

13

Cub Cadet 732-0306A

Compr. Sprng., .531 OD x 1.75 Lg
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

14

Cub Cadet 735-0246A

End Plug

$5.99

$

In Stock, only 1 left!

0

15

Cub Cadet 736-0264

Washer, Flat, .330 x .630 x .0635

$6.99

$

In Stock, only 1 left!

0

16

Cub Cadet 736-0366

Washer, Flat, .640 x 1.12 x .125

$4.49

$

In Stock, only 2 left!

0

17

Cub Cadet 741-0685

Flange Bearing, .631 ID

$4.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 747-0924

Lock Pin

$20.99

$

In Stock, only 1 left!

0

19

Cub Cadet 710-0237

Screw, 5/16-24 x .625

$4.49

$

In Stock, only 1 left!

0

20

Cub Cadet 710-04705

Screw, #12-16 x .750

Note: 2008 & Before

$

$

Not available

20

Cub Cadet 710-04373A

Screw, #12-16 x .75

Note: 2009 & After

$4.49

$

In Stock, Qty 15

0

21

Cub Cadet 710-3008

Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 712-04035

Hexlock Nut, #8-32

$4.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 720-0426

Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

26

Cub Cadet 731-05644

Louver Plate

$8.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 732-3042

Compr. Sprng., .515 x .641 x .95
(Superseded to 932-3042)

$4.99

$

In Stock, only 1 left!

0

28

Cub Cadet 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 738-04222

Shoulder Scr., .437 x .13, 1/4-20

$2.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 738-04223

Shoulder Scr., .18 x 4.8, 8-32

$4.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 781-04165

Back Plate
(Superseded to 781-04165A)

Variations

Cub Cadet 781-04165-0638

PLATE-BACK BLOWER - MTD/TROY-BILT RED (0638)

$73.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-04165-0691

PLATE-BACK BLOWER - BLACK JACK (0691)

$73.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-04165-4021

USE 781-04165A-4021 PLATE-BAC - CUB YELLOW 2 (4021)

$73.99

$

Usually ships in 3-6 days

0

$59.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 781-04181

Louver Lever
(Superseded to 781-04181B)

Variations

Cub Cadet 781-04181-0638

LEVER-BLOWER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-04181-0691

LEVER-BLOWER - BLACK JACK (0691)

$22.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-04181-4021

LEVER-BLOWER - CUB YELLOW 2 (4021)

$25.99

$

Usually ships in 3-6 days

0

$22.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 781-04212

Louver Guide Plate
(Superseded to 781-04212-0637)

Variations

Cub Cadet 781-04212-0637

PLATE-GUIDE LOUVER - POWDER BLACK (0637)

$7.99

$

Usually ships in 3-6 days

0

$7.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 731-05592

Blower Housing

$79.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 681-04084

Frame Assembly
(Superseded to 681-04084A-4021)

Variations

Cub Cadet 681-04084-4021

Frame Assembly Blower - CUB YELLOW 2 (4021)

$88.99

$

Usually ships in 3-6 days

0

$88.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 710-0805

Screw, 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

37

Cub Cadet 631-04248

Impeller Assembly

$133.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 710-04693

Screw, 3/8-24 x 3.25

$9.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 736-0217

Washer, Lock, 3/8

$4.49

$

In Stock, Qty 9

0

40

Cub Cadet 731-05929

Blower Cover

$40.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 734-04278

Wheel, 8 x 3

Note: w/o bearing

$103.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 741-0706

Bearing
(Superseded to 941-0706)

Note: not shown

$8.49

$

In Stock, Qty 6

0

42

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

43

Cub Cadet 726-0299

Push Cap

$8.49

$

In Stock, Qty 20+

0

44

Cub Cadet 734-04279

Wheel, 12 x 3

$98.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 736-0504

Washer, Wave, .510 x .750 x .017
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

46

Cub Cadet 738-04290

Shoulder Screw, .625 x 3.94

$13.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 750-04854

Spacer, .525 x .775 x .560

$3.49

$

In Stock, only 2 left!

0

48

Cub Cadet 631-04253

Chute Attachment

$37.99

$

In Stock, only 1 left!

0
