JR 1030 E (UT-32021) - Homelite Rear-Engine Riding Mower Mower Parts Diagram

Rear-Engine Riding Mower

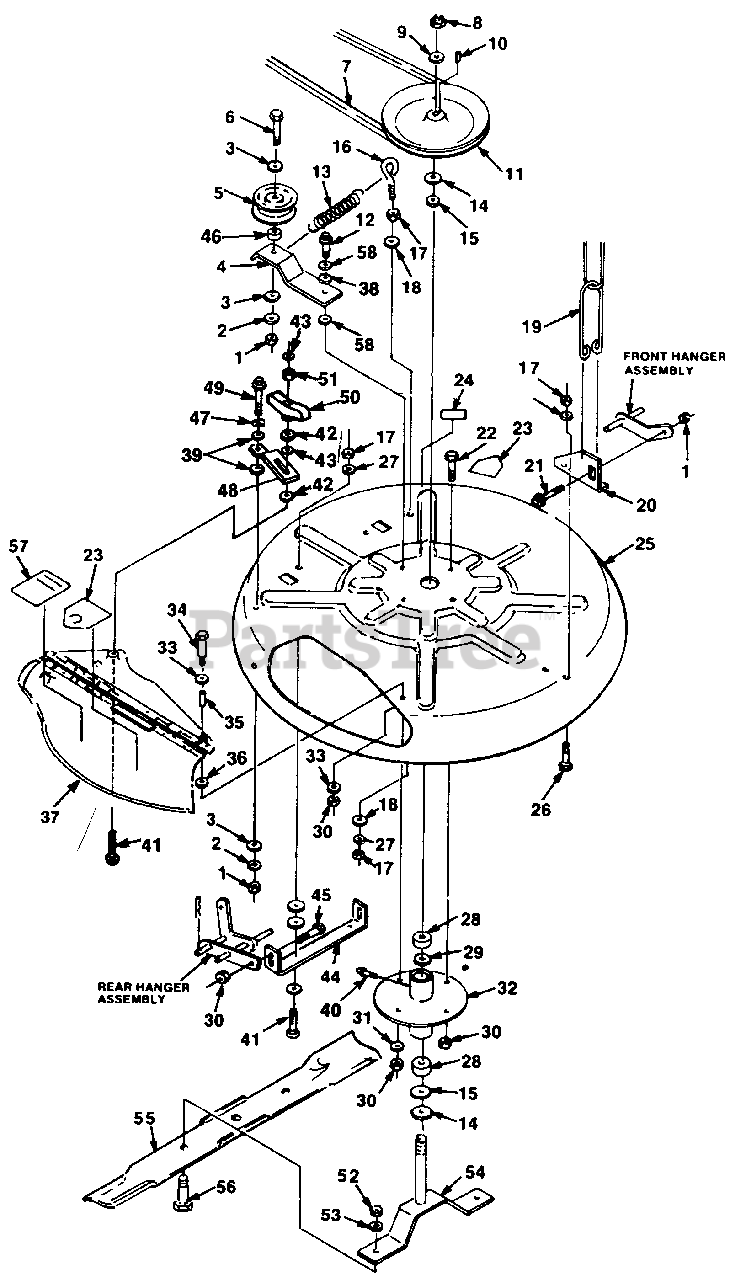

Mower Parts Diagram

  • Title

1

Homelite JA444762

NUT-Hex centerlock 3/8-16

$

$

Currently unavailable

2

Homelite JA446140

WASHER- Lock 3/8
(Superseded to UP07435)

$

$

Not available

3

Homelite JA452008

WASHER- Flat 7/16

$3.49

$

Usually ships in 3-7 days

0

4

Homelite JA991598

ARM- Pivot

$

$

Not available

5

Homelite JA991151

PULLEY- Idler

$

$

Currently unavailable

6

Homelite JA400274

SCREW- Hex 3/8-16 x 2 1/2

$

$

Not available

7

Homelite JA991488

BELT

$

$

Currently unavailable

8

Homelite JA445783

NUT- Hex locking

$

$

Currently unavailable

9

Homelite JA453022

WASHER- Flat 13/16

$

$

Currently unavailable

10

Homelite JA321292

KEY- 3/16 x 1.00

$

$

Currently unavailable

11

Homelite JA330023

PULLEY- Spindle

$

$

Not available

12

Homelite JA400190

SCREW- Cap hex hd 5/16-18 x 1.250

$

$

Not available

13

Homelite JA991532

SPRING- Extension

$

$

Currently unavailable

14

Homelite JA991497

SPACER-.100 Thick

$

$

Currently unavailable

15

Homelite JA455055

WASHER-.036 Thick

$

$

Not available

16

Homelite JA354532

BOLT- Eye

$

$

Currently unavailable

17

Homelite JA444708

NUT- Centerlock 1/4-20

$

$

Currently unavailable

18

Homelite JA455024

WASHER- Flat 1/4

$

$

Currently unavailable

19

Homelite JA990269

LINK- Lower front lift

$39.99

$

Usually ships in 3-7 days

0

20

Homelite JA339492

BRACKET- Front lift

$

$

Currently unavailable

21

Homelite JA376007

BOLT- Shoulder 3/8-16 x 2.125

$

$

Currently unavailable

22

Homelite JA400184

SCREW- Cap hex hd 5/16-18 x.750
(Superseded to UP03381)

$

$

Not available

23

Homelite JA339460

DECAL- CPSC Warning

$

$

Not available

24

Homelite JA339566

DECAL- No step

$

$

Currently unavailable

25

Homelite JA991572

DECK- Cutter 30"

$

$

Currently unavailable

26

Homelite JA400106

SCREW- Cap hex hd. l,4-20 x.625

$

$

Currently unavailable

27

Homelite JA446130

WASHER- Lock 1/4

$

$

Not available

28

Homelite JA991765

BEARING- Cutter shaft

$

$

Currently unavailable

29

Homelite JA376076

SPACER- Bearing

$

$

Currently unavailable

30

Homelite JA444718

NUT- Hex centerlock 5/16-18

$

$

Not available

31

Homelite JA446136

WASHER- Lock 5/16
(Superseded to UP03791)

$

$

Not available

32

Homelite JA991596

SPINDLE HOUSING

$

$

Currently unavailable

33

Homelite JA453009

WASHER- 5/16 SAE
(Superseded to UP07173)

$

$

Not available

34

Homelite JA400182

SCREW- Hex 5/16-18 x 5/8

$

$

Not available

35

Homelite JA991744

SPACER

$

$

Currently unavailable

36

Homelite JA453011

WASHER- Flat 3/8
(Superseded to PS84010)

$

$

Not available

37

Homelite JA991718

PLATE COVER ASSEMBLY

$

$

Currently unavailable

38

Homelite JA991504

SPACER- Idler arm

$

$

Not available

39

Homelite JA455049

WASHER- Flat

$7.49

$

Usually ships in 3-7 days

0

40

Homelite JA471238

FITTING

$

$

Currently unavailable

41

Homelite JA400108

SCREW- Cap hex hd 1/4-20 x.750
(Superseded to 80052)

$

$

Not available

42

Homelite JA452004

WASHER- Plain 1/4
(Superseded to 84026)

$

$

Not available

43

Homelite JA445272

WASHER

$4.99

$

Usually ships in 3-7 days

0

44

Homelite JA990291

BRACKET- Rear lift

$

$

Currently unavailable

45

Homelite JA354480

BOLT- Shoulder 5/16 x 18

$

$

Currently unavailable

46

Homelite JA992229

SPACER

$

$

Not available

47

Homelite JA454020

WASHER- Spring

$

$

Not available

48

Homelite JA991519

ARM- Pivot

$

$

Currently unavailable

49

Homelite JA376094

BOLT- Hex hd cap 1/4-20 x.625

$

$

Not available

50

Homelite JA339550

KNOB

$

$

Not available

51

Homelite JA445784

NUT- Hex 1/4-20 hvy

$

$

Currently unavailable

52

Homelite JA444758

NUT- Hex centerlock 1/2-13

$

$

Currently unavailable

53

Homelite JA446154

WASHER- Lock 1/2

$

$

Not available

54

Homelite JA991597

SPINDLE & ADAPTER

$

$

Not available

55

Homelite JA991659

BLADE
(Superseded to UP06686)

$

$

Not available

56

Homelite JA408803

SCREW- Cap hex hd 1/2-13 x 1.25

$

$

Currently unavailable

57

Homelite JA339524

DECAL- Danger

$

$

Currently unavailable

58

Homelite JA453032

WASHER- Idler arm

$

$

Currently unavailable

Homelite JA991658

BLADE-Sand

Note: (optional)

$

$

Currently unavailable

Homelite JA991661

BLADE- Normal lift

Note: (optional)

$

$

Currently unavailable
