JR 1030 E (UT-32021) - Homelite Rear-Engine Riding Mower Engine And Drive Parts Diagram

Rear-Engine Riding Mower

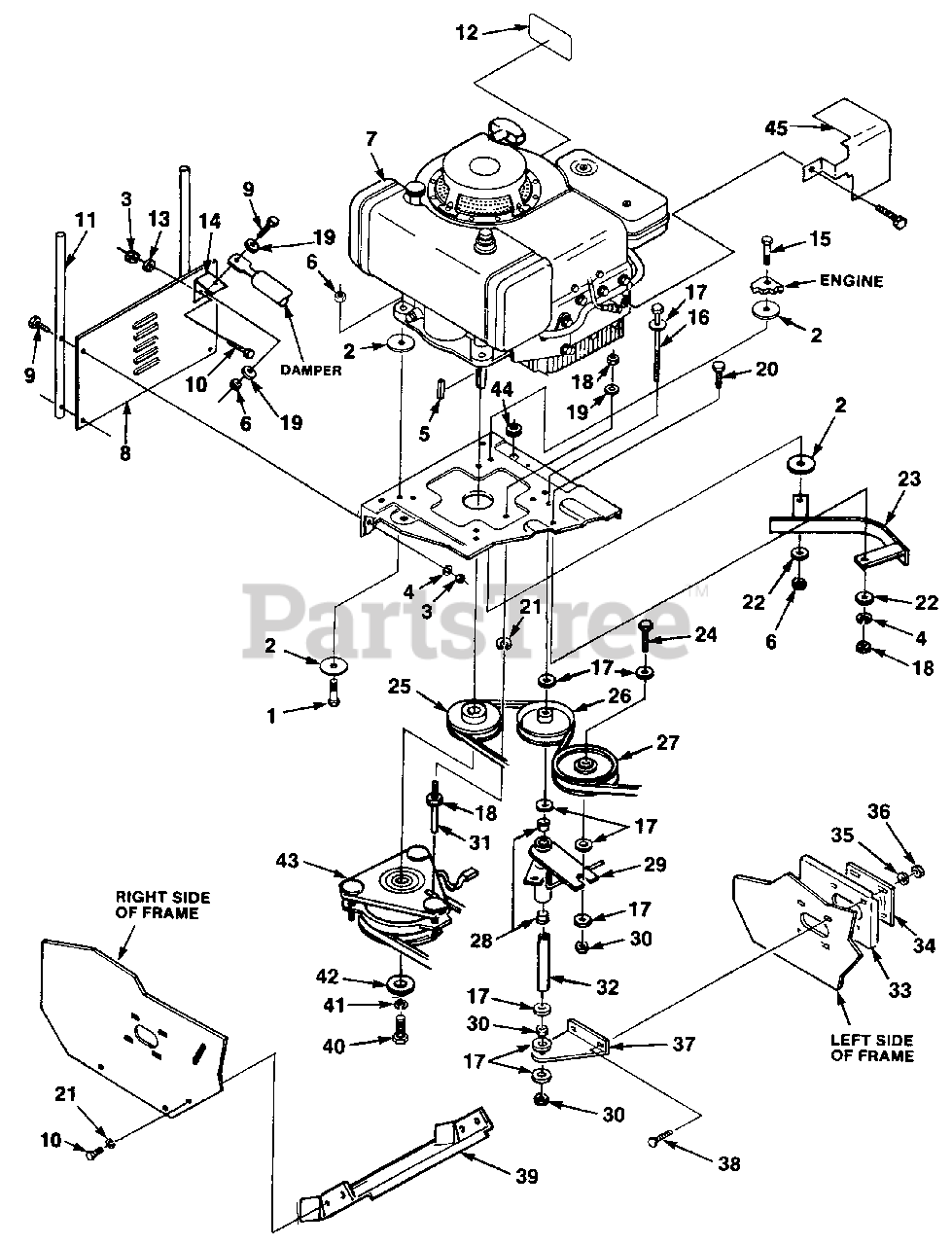

Engine And Drive Parts Diagram

  • Title

1

Homelite JA400192

SCREW- 5/16-18 x 1 1/2

$

$

Currently unavailable

2

Homelite JA350929

WASHER- 5/16

$

$

Not available

3

Homelite JA443102

NUT- 1/4-20 hex
(Superseded to JA993730)

$

$

Not available

4

Homelite JA446130

WASHER- 1/4

$

$

Not available

5

Homelite JA306968

KEY- 1/4 x 1/4 x 1

$

$

Currently unavailable

6

Homelite JA444718

NUT- Lock 5/16 x 18

$

$

Not available

7

Homelite JA993826

ENGINE-

Note: (JR830)

$

$

Currently unavailable

Homelite JA993827

ENGINE-

Note: (JR1030E)

$

$

Currently unavailable

Homelite JA993828

ENGINE-

Note: (JR1230E)

$

$

Currently unavailable

8

Homelite JA991088

PANEL- Rear

$

$

Currently unavailable

9

Homelite JA400184

BOLT- 5/16-18 x 3/4
(Superseded to UP03381)

$

$

Not available

10

Homelite JA400106

SCREW- 1/4-20 x 5/8

$

$

Currently unavailable

11

Homelite JA992155

TUBE- Catcher Support

$92.99

$

Usually ships in 3-7 days

0

12

Homelite JA992354

DECAL- (Hot Muffler)

$

$

Not available

13

Homelite JA446128

WASHER 1/4
(Superseded to UP03409)

$8.49

$

Usually ships in 3-7 days

0

14

Homelite JA991806

BRACKET

$27.99

$

Usually ships in 3-7 days

0

15

Homelite JA400194

BOLT- 5/16-18 x 1 3/4

$

$

Currently unavailable

16

Homelite JA400288

BOLT- 3/8-16 x 5 1/2

$

$

Currently unavailable

17

Homelite JA452008

WASHER- 3/8 flat

$3.49

$

Usually ships in 3-7 days

0

18

Homelite JA443106

NUT- Hex 5/16-18
(Superseded to 81018)

$

$

Not available

19

Homelite JA453009

WASHER- Flat 5/16
(Superseded to UP07173)

$

$

Not available

20

Homelite JA400108

BOLT- 1/4-20 x.750
(Superseded to 80052)

$

$

Not available

21

Homelite JA446134

WASHER- Lock 5/16
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

22

Homelite JA452004

WASHER- Flat 1/4
(Superseded to 84026)

$

$

Not available

23

Homelite JA991165

GUIDE- Belt

$101.99

$

Usually ships in 3-7 days

0

24

Homelite JA400268

BOLT- 3/8-16 x 1 3/4
(Superseded to UP07178)

$

$

Not available

25

Homelite JA991147

PULLEY- Engine

$

$

Currently unavailable

26

Homelite JA991146

PULLEY- Idler

$

$

Currently unavailable

27

Homelite JA991145

PULLEY- Idler
(Superseded to JA990679)

$

$

Currently unavailable

28

Homelite JA990733

BEARING- Flange

$

$

Currently unavailable

29

Homelite JA991148

ARM- Pivot

$

$

Currently unavailable

30

Homelite JA444762

NUT- Hex Centerlock 3/8-16

$

$

Currently unavailable

31

Homelite JA990979

PIN- Clutch torque

$

$

Currently unavailable

32

Homelite JA990732

SPACER

$

$

Currently unavailable

33

Homelite JA991167

SUPPORT- Frame

$

$

Currently unavailable

34

Homelite JA992700

RETAINER & BEARING

$

$

Currently unavailable

35

Homelite JA452004

WASHER- Lock 1/4 hvy
(Superseded to 84026)

$

$

Not available

36

Homelite JA444708

NUT- Centerlock hex 1/4-20

$

$

Currently unavailable

37

Homelite JA991144

BRACKET

$

$

Currently unavailable

38

Homelite JA441606

BOLT- Rd. hd. carr. 1/4-20 x.750

$

$

Not available

39

Homelite JA991085

PAN-Bottom

$

$

Currently unavailable

40

Homelite JA400384

BOLT- Hex hd. 7/16-20 x 2 3/4

$

$

Not available

41

Homelite JA446148

WASHER- Lock 7/16

$

$

Not available

42

Homelite JA990128

CLUTCH RETAINER

$

$

Currently unavailable

43

Homelite JA991059

CLUTCH- Warner

$

$

Currently unavailable

Homelite JA990977

CLUTCH- Agura

$

$

Currently unavailable

44

Homelite JA991427

GROMMET

$

$

Not available

Homelite JA375995

THROUGH

Note: (not shown)

$

$

Not available

45

Homelite JA992169

HEAT SHIELD

Note: (JR1030E & JR1230E)

$

$

Currently unavailable
