Jet 55 (954170093-S) - Husqvarna Walk-Behind Mower (2003-05) FRAME & ENGINE Parts Diagram

Walk-Behind Mower

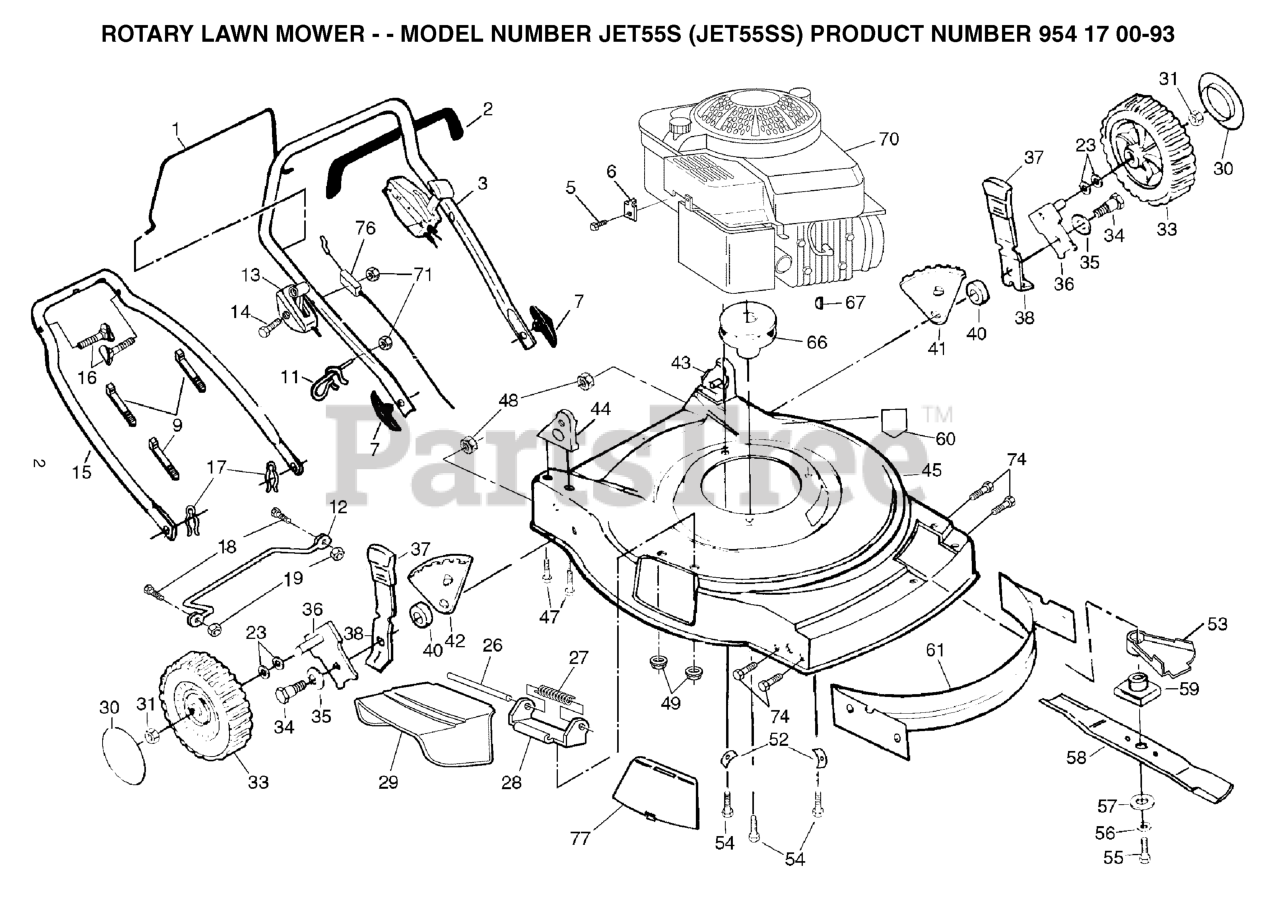

FRAME & ENGINE Parts Diagram

  • Title
1

Husqvarna 532145794

BAIL.CNTRL.DLX.CK
(Superseded to 583678201)

$

$

Not available

37

Husqvarna 532132800

SELECTOR KNOB
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

14

Husqvarna 532144929

SCREW 1/4-20 X 2.12
(Superseded to 532158755)

$

$

Not available

36

Husqvarna 532151254

AXLE ARM
(Superseded to 532145937)

$6.49

$

Usually ships in 3-10 days

0

57

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 2 left!

0

61

Husqvarna 532170491

NEEDS DESCRIPTION

$

$

Not available

66

Husqvarna 532084596

ENGINE.PULLEY.FWG

$34.99

$

In Stock, only 2 left!

0

54

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

- -

Husqvarna 532177879

NEEDS DESCRIPTION

$

$

Currently unavailable

33

Husqvarna 532750550

WHEEL.8X2.PR.LP.RAD.GREY

$34.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532057143

WAVE WASHER
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

42

Husqvarna 532800368

WHL ADJ BRKT LF/RR

$

$

Not available

- -

Husqvarna 532177880

NEEDS DESCRIPTION

$

$

Currently unavailable

- -

Husqvarna 532125381

AIR CONDUCTOR

$

$

Not available

13

Husqvarna 532182157

CONTROL.THROTL.48.5.INTK.RT.HS

$

$

Not available

76

Husqvarna 532149293

ENGINE ZONE CONTROL CABLE

$24.99

$

In Stock, only 1 left!

0

6

Husqvarna 532111190

CABLE CLAMP(ENGINE)

$

$

Not available

45

Husqvarna 532170500

NEEDS DESCRIPTION

$

$

Currently unavailable

18

Husqvarna 532085825

REPL BY 817 02 10-08
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

44

Husqvarna 532170975

HANDLE BRACKET ASM. RH
(Superseded to 532170345)

$7.49

$

In Stock, only 1 left!

0

43

Husqvarna 532170977

HANDLE BRACKET ASM. LH
(Superseded to 532170346)

$7.49

$

In Stock, only 1 left!

0

17

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532157101

NEEDS DESCRIPTION

$

$

Not available

11

Husqvarna 532179585

ROPE, GUIDE
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

52

Husqvarna 532125078

WASHER.ENGINE.BZP

$5.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

19

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532083816

SCREW.HEX.HEAD.WASHER.10-16

$6.49

$

Usually ships in 3-10 days

0

47

Husqvarna 532149741

SCREW.5/16-18X3/4
(Superseded to 532171877)

$7.49

$

In Stock, Qty 6

0

48

Husqvarna 532751592

LOCKNUT PM
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532153418

LOWER HANDLE
(Superseded to 532175245)

$

$

Not available

77

Husqvarna 532125444

REPL BY 532 12 54-20
(Superseded to 532751772)

$

$

Not available

55

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

74

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532169369

HANDLE.UP.DLX.COMF.W/GRIP.GREY

$54.99

$

Usually ships in 3-10 days

0

49

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

30

Husqvarna 532157008

HUBCAP.8".GREY

$

$

Not available

28

Husqvarna 532087593

BRACKET PM

$6.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532851514

BLADE ADAPTOR

$17.99

$

In Stock, Qty 20+

0

16

Husqvarna 532131959

HANDLE BOLT
(Superseded to 532183724)

$

$

Not available

40

Husqvarna 532146630

RP SPACER HT ADJ
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

60

Husqvarna 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

56

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

35

Husqvarna 532062335

WASHER.BELLEVILLE (3 2 LB)

$9.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532142748

BOLT
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

27

$6.49

$

Usually ships in 3-10 days

0

$

$

Not available

67

Husqvarna 532087677

HI PRO KEY PM WSL

$

$

Not available

7

Husqvarna 532136376

HANDLE KNOB
(Superseded to 532183724)

$

$

Not available

12

$

$

Not available

31

Husqvarna 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

26

Husqvarna 532147286

ROD.HINGE.COMBI-C

$8.99

$

In Stock, Qty 9

0

75

Husqvarna 532182134

DECAL.INTRN.SELF-PROPELLED.02
(Superseded to 583119801)

$14.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532800370

WHL ADJ BRKT RF/LR
(Superseded to 532140058)

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532850778

DISCHARGE GUARD

$

$

Not available

2

Husqvarna 532164265

GRIP.HANDLE.FOAM
(Superseded to 585161003)

$

$

Not available

53

Husqvarna 532182002

SHIELD.DEBRIS.21.RWGD.EZ

$12.99

$

In Stock, only 1 left!

0
