Jet 50 R - Husqvarna Walk-Behind Mower (1995-03) PRODUCT COMPLETE Parts Diagram

Walk-Behind Mower

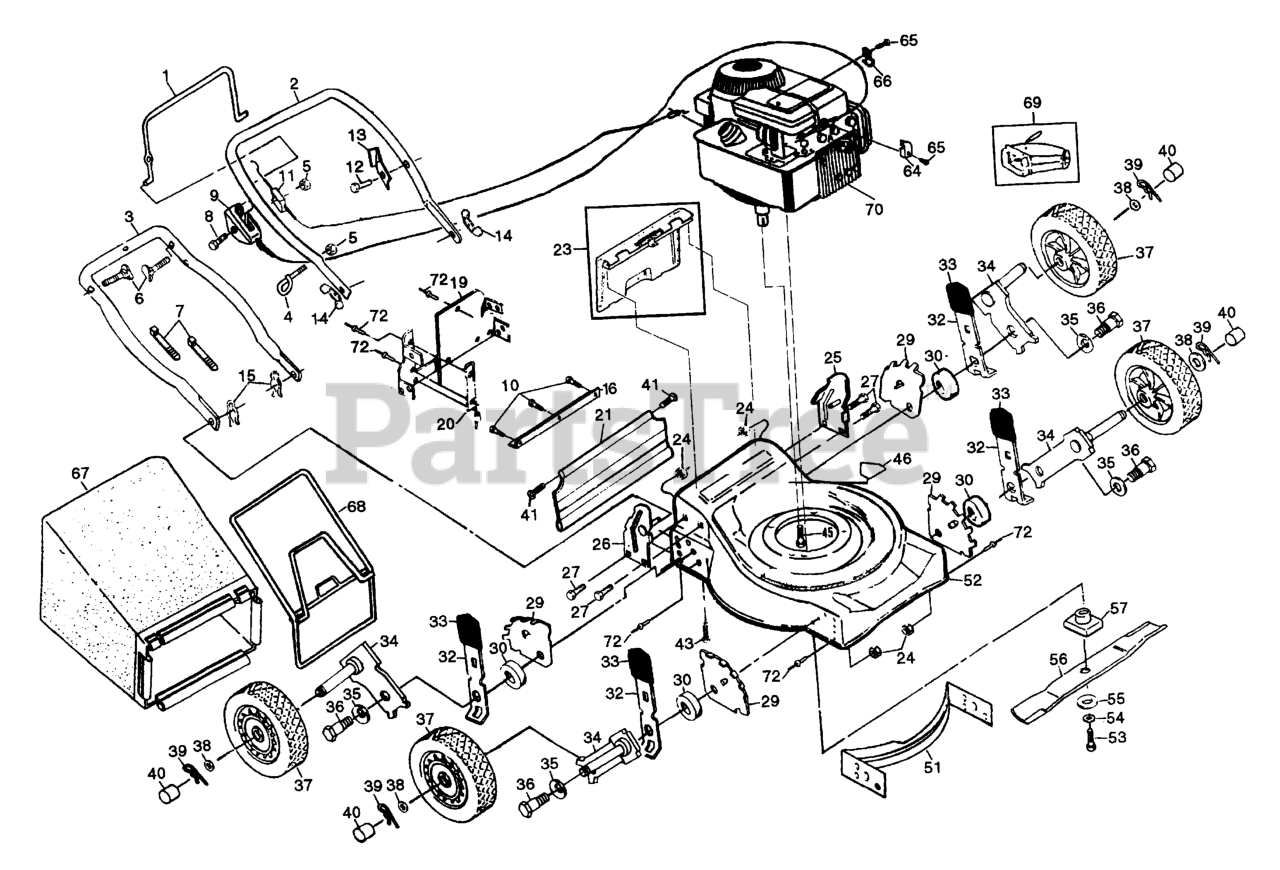

PRODUCT COMPLETE Parts Diagram

  • Title

$

$

Not available

25

Husqvarna 532142008

HANDLE BRACKET LH
(Superseded to 532700913)

$

$

Not available

66

Husqvarna 532087930

GUIDE CLIP PM

$5.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

56

Husqvarna 532145106

BLADE.20.MULCH.(50DK,6020MD)

$20.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532125338

UPPER HANDLE
(Superseded to 532850881)

$

$

Not available

52

Husqvarna 532149100

NEEDS DESCRIPTION

$

$

Currently unavailable

24

Husqvarna 532751592

LOCKNUT PM
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532130491

Wheel & Tire Assembly 7.0 x 1-1/2

$

$

Not available

41

Husqvarna 532088652

HINGE SCREW

$7.49

$

In Stock, only 2 left!

0

8

Husqvarna 532144929

SCREW 1/4-20 X 2.12
(Superseded to 532158755)

$

$

Not available

30

Husqvarna 532084920

SPACER PM
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

26

Husqvarna 532142007

HANDLE BRACKET RH
(Superseded to 532700915)

$

$

Not available

15

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

54

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 532147613

REAR DOOR ASSEMBLY KIT

$

$

Not available

35

Husqvarna 532062335

WASHER.BELLEVILLE (3 2 LB)

$9.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532138865

BACK PLATE
(Superseded to 532700356)

$

$

Not available

$6.49

$

In Stock, only 1 left!

0

29

Husqvarna 532139901

WHEEL ADJUST BRACKET
(Superseded to 532750085)

$4.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532850998

BOLT
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

$

$

Not available

3

Husqvarna 532125293

HANDLE, LOWER PM
(Superseded to 532157081)

$

$

Not available

34

Husqvarna 532125172

AXLE ARM
(Superseded to 532187930)

$14.99

$

Usually ships in 3-10 days

0

16

$

$

Not available

67

$

$

Not available

21

Husqvarna 532140657

REAR SKIRT
(Superseded to 532188984)

$

$

Not available

1

Husqvarna 532086902

CONTROL BAR

$

$

Not available

36

Husqvarna 532142748

BOLT
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

5

Husqvarna 532063601

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

51

Husqvarna 532138864

NEEDS DESCRIPTION

$

$

Currently unavailable

13

Husqvarna 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

39

Husqvarna 532085179

RETAINER CLIP PM

$7.49

$

Usually ships in 3-10 days

0

40

$

$

Not available

$

$

Not available

55

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 4 left!

0

68

Husqvarna 532088614

CATCHER.FRAME.WALK

$54.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532055187

SCREW
(Superseded to 817000512)

$6.49

$

In Stock, Qty 11

0

57

Husqvarna 532850977

BLADE ADAPTOR
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

4

Husqvarna 532132001

ROPE GUIDE
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

32

Husqvarna 532141730

SELECTOR SPRING
(Superseded to 532700331)

$5.99

$

In Stock, only 2 left!

0

9

Husqvarna 532851462

THROTTLE CONTROL
(Superseded to 532851463)

$

$

Not available

72

Husqvarna 532128415

RIVET BLIND

$4.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532213146

WASHER
(Superseded to 532125078)

$5.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532130861

CABLE.MZR.51.RT.SP./PU.

$

$

Not available

6

Husqvarna 532131959

HANDLE BOLT
(Superseded to 532183724)

$

$

Not available

14

Husqvarna 532128638

NUT WING PM

$7.49

$

In Stock, Qty 8

0

7

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

65

Husqvarna 532083816

SCREW.HEX.HEAD.WASHER.10-16

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 532138866

SIDE BAFFLE
(Superseded to 532700363)

$

$

Not available
