Jet 50 R (954053811) - Husqvarna Walk-Behind Mower (1991-04) Repair Parts Parts Diagram

Walk-Behind Mower

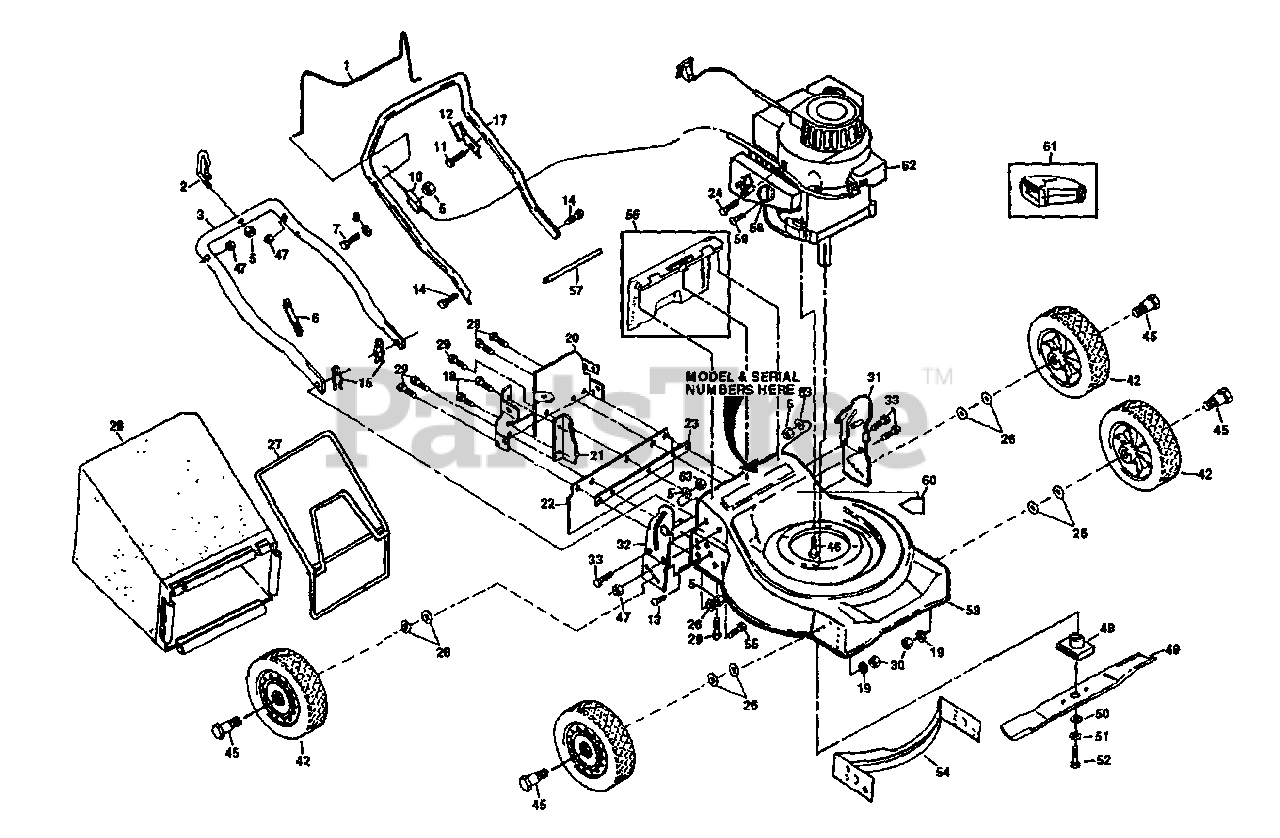

Repair Parts Parts Diagram

  • Title

1

Husqvarna 532801358

Control Bar
(Superseded to 532086902)

$

$

Not available

2

Husqvarna 532103672

Rope Guide

$

$

Not available

3

Husqvarna 532125214

Lower Handle
(Superseded to 532157081)

$

$

Not available

5

Locknut 1/4-20

$

$

Not available

6

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

7

Machine Screw 1/4-20 x 1-1/2

$

$

Not available

10

Husqvarna 532851669

Engine Zone Control Cable

$18.99

$

Usually ships in 3-10 days

0

11

Hex Washer Head Tapping Screw #10-24 x 1/2

$

$

Not available

12

Husqvarna 532125162

Up-Stop Bracket
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

13

Flat Head Machine Screw 1/4-20

$

$

Not available

14

Bolt 1/4 - 20 - 1-1/2

$

$

Not available

15

Husqvarna 532051793

Hairpin Cotter

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532125184

Upper Handle

$

$

Currently unavailable

18

Self-tapping Screw #10-24 x 3/8

$

$

Not available

19

Washer .39 x 1.25 x .09

$

$

Not available

20

Husqvarna 532125176

Back Plate

$

$

Not available

21

Husqvarna 532125177

Side Baffle

$

$

Not available

22

Husqvarna 532087903

Rear Skirt

$

$

Currently unavailable

23

Husqvarna 532125204

Backing Strip

$

$

Not available

24

Thread Roling Screw #10-32 x 5/8

$

$

Not available

26

Washer

$

$

Not available

27

Husqvarna 532800393

Catcher Frame
(Superseded to 532088614)

$54.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532800386

Grass Bag
(Superseded to 532134048)

$

$

Not available

29

Hex Tapping Screw

$

$

Not available

30

Locknut

$

$

Not available

31

Husqvarna 532125186

Handle Bracket Assembly (Left)

$

$

Not available

32

Husqvarna 532125187

Handle Bracket Assembly (Right)

$

$

Not available

33

Thread Cuttina Screw 5/16-18 x 3/4

$

$

Not available

42

Husqvarna 532130491

Wheel & Tire Assembly 7.00 x 3.5

$

$

Not available

45

Husqvarna 532867609

Bolt, Shoulder 3/8- 16 x 2.5

$

$

Currently unavailable

46

Hex Head Thread Rolling Screw 3/8-16 x 1-1/8

$

$

Not available

47

Locknut

$

$

Not available

48

Husqvarna 532850977

Blade Adapter
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

49

Husqvarna 532850972

20 Blade
(Superseded to 532145106)

$20.99

$

In Stock, only 1 left!

0

50

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, only 2 left!

0

51

Helical Lock Washer 3/8

$

$

Not available

52

Husqvarna 532851084

Hex Head Screw 3/8-24 x 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

53

Husqvarna 532128556

Lawn Mower Housing Kit

$

$

Not available

54

Husqvarna 532125183

Front Baffle

$

$

Not available

55

Hex Head Screw 5/16 x 5/8

$

$

Not available

56

Husqvarna 532048138

Rear Door Kit

Note: (Includes Key No. 57)

$

$

Not available

57

Husqvarna 532750655

Hinae Rod

$

$

Not available

58

Muffler Deflector

Note: These parts must be purchased through an authorized Briggs & Stratton dealer

$

$

Not available

59

Screw

Note: These parts must be purchased through an authorized Briggs & Stratton dealer

$

$

Not available

60

Danger Decal

$

$

Not available

61

MA35 Clipping Deflector

Note: (Not included with Lawn Mower)

$

$

Not available

62

Engine-Briggs & Stratton Model No. 93902

Note: These parts must be purchased through an authorized Briggs & Stratton dealer

$

$

Not available

63

Husqvarna 532053847

Washer
(Superseded to 819091214)

$10.99

$

Usually ships in 3-10 days

0
