Jet 49 (954820323-D) - Husqvarna Walk-Behind Mower (2002-01) PRODUCT COMPLETE Parts Diagram

Walk-Behind Mower

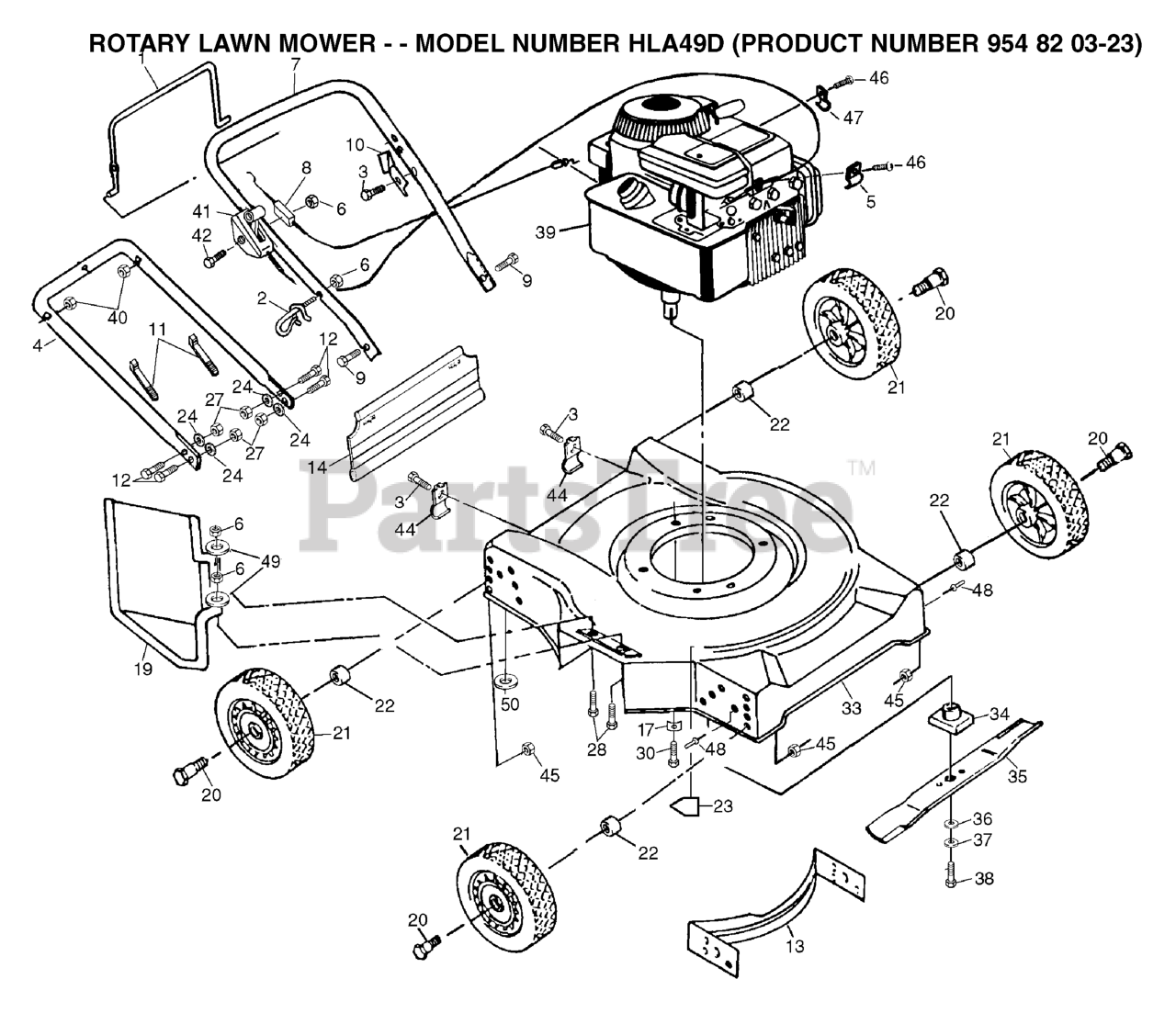

PRODUCT COMPLETE Parts Diagram

  • Title

34

Husqvarna 532850977

BLADE ADAPTOR
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

47

Husqvarna 532087930

GUIDE CLIP PM

$5.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532751592

LOCKNUT PM
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532138348

BAFFLE
(Superseded to 532700839)

$

$

Not available

23

Husqvarna 532141846

DANGER DECAL

$

$

Not available

9

Husqvarna 874350424

BOLT
(Superseded to 874780424)

$4.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532128415

RIVET BLIND

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532137009

NEEDS DESCRIPTION

$2.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532179585

ROPE, GUIDE
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

28

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, only 1 left!

0

- -

Husqvarna 532181556

NEEDS DESCRIPTION

$

$

Currently unavailable

24

Husqvarna 532055611

WASHER

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532061537

WASHER
(Superseded to 819132012)

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532063601

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

- -

Husqvarna 532178406

NEEDS DESCRIPTION

$

$

Currently unavailable

- -

Husqvarna 532161058

WARNING DECAL

$6.49

$

In Stock, only 1 left!

0

5

Husqvarna 532213146

WASHER
(Superseded to 532125078)

$5.99

$

Usually ships in 3-10 days

0

- -

Husqvarna 532178405

NEEDS DESCRIPTION

$

$

Currently unavailable

41

Husqvarna 532851462

THROTTLE CONTROL
(Superseded to 532851463)

$

$

Not available

17

Husqvarna 532125078

WASHER.ENGINE.BZP

$5.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

21

Husqvarna 532800060

WHEEL
(Superseded to 584458801)

$13.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532125207

BRACKET DEFL PM
(Superseded to 532192301)

$

$

Not available

8

Husqvarna 532700892

CABLE.CONTROL.MZR.RH.SP/PUSH

$

$

Not available

11

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532752052

PROTECTOR

$

$

Not available

3

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

1

Husqvarna 532086902

CONTROL BAR

$

$

Not available

14

Husqvarna 532140541

REAR SKIRT
(Superseded to 532189009)

$

$

Not available

37

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

46

Husqvarna 532083816

SCREW.HEX.HEAD.WASHER.10-16

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532136624

SPACER.WHEEL.390.X1.0X.380.RTA

$9.99

$

In Stock, only 1 left!

0

42

Husqvarna 532158755

SCREW.PAN.HEAD

$

$

Not available

38

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

4

Husqvarna 532173542

NEEDS DESCRIPTION

$

$

Currently unavailable

30

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

27

Husqvarna 532132010

FLANGED LOCKNUT 3/8-16 ZINC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 532173541

NEEDS DESCRIPTION

$

$

Currently unavailable

20

Husqvarna 532067609

AXLE BOLT

$

$

Not available

35

Husqvarna 532145106

BLADE.20.MULCH.(50DK,6020MD)

$20.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532053847

WASHER
(Superseded to 819091214)

$10.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532165613

NEEDS DESCRIPTION

$84.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 4 left!

0
