J675AWD (961420123-01) - Jonsered Walk-Behind Mower (2014-03) FRAME ENGINE Parts Diagram

Walk-Behind Mower

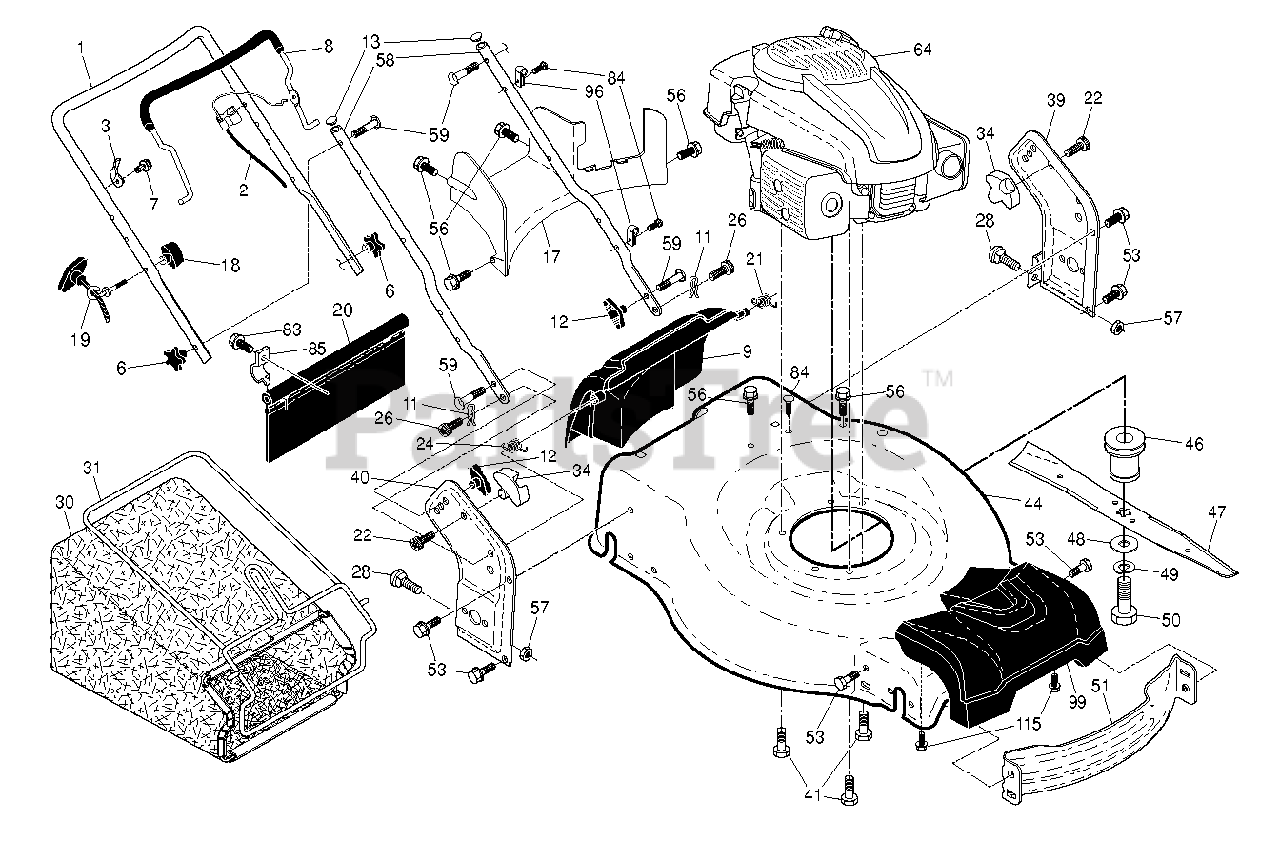

FRAME ENGINE Parts Diagram

  • Title

1

Jonsered 532427738

HANDLE.UP.DSTR.FG/RGD.BLACK

Note: . 70

$30.99

$

Usually ships in 3-10 days

0

2

Jonsered 532440385

Cable, MZR Rgd Plus Strt
(Superseded to 583547901)

$22.99

$

In Stock, Qty 20+

0

3

Jonsered 532430034

BRACKET.UPSTOP.RT

$6.99

$

In Stock, only 3 left!

0

6

Jonsered 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, only 2 left!

0

7

Jonsered 532178848

SCREW

$7.49

$

In Stock, Qty 20+

0

8

Jonsered 581497401

Bail, OM Strt.Mzr.Black.428
(Superseded to 587478301)

$20.99

$

Usually ships in 3-10 days

0

9

Jonsered 585847601

DOOR.REAR.22+GEN.RG.EBA.BLK

$45.99

$

In Stock, only 3 left!

0

11

Jonsered 532425575

COTTER.HAIRPIN.DOOR/HANDLE.PIV

$6.49

$

In Stock, Qty 18

0

12

Jonsered 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$9.49

$

In Stock, Qty 20+

0

13

Jonsered 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

$4.99

$

Usually ships in 3-10 days

0

17

Jonsered 581782101

Rear Baffle, 22+ Rgd AWD Plastic

$47.99

$

In Stock, Qty 6

0

18

Jonsered 581912601

T-Knob, New Rope Guide

$4.99

$

In Stock, only 2 left!

0

19

Jonsered 581902101

Rope Guide, Blk Zinc Chrom

$

$

Not available

20

Jonsered 532444501

SKIRT.REAR.22+RGD.

$13.99

$

Usually ships in 3-10 days

0

21

Jonsered 532419949

SPRING.LH.GRAY

Note: LH

$6.49

$

In Stock, Qty 10

0

22

Jonsered 532141841

SCREW.PAN.HEAD.#10

$7.49

$

In Stock, only 2 left!

0

24

Jonsered 532419948

SPRING.RH.GRAY

Note: RH

$6.49

$

In Stock, Qty 5

0

26

Jonsered 532419945

SCREW,DOOR/HANDLE.PIVOT

$6.49

$

In Stock, Qty 20+

0

28

Jonsered 586212501

Carriage Bolt, 5/16-18 X 5/8

$4.99

$

In Stock, Qty 8

0

30

Jonsered 580947302

GBAG.A3610010.BLK.GENERIC
(Superseded to 583471001)

$

$

Not available

31

Jonsered 585054702

Grass Bag Frame, 22+ Black

$34.99

$

In Stock, Qty 8

0

34

Jonsered 532438134

BRACKET.GRASSBAG.ATTACHING.BLK

$

$

Not available

39

Jonsered 585900702

Handle Bracket Assembly, LH 22+ Black

Note: LH

$

$

Not available

40

Jonsered 585900802

Handle Bracket Assembly, RH 22+ Black

Note: RH

$27.99

$

In Stock, only 1 left!

0

41

Jonsered 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

44

Jonsered 581708339

HOUSING.22+AWD.RR.HD.WO.REDTRI

$

$

Not available

46

Jonsered 581851501

Blade Adapter, 25mm

$17.99

$

In Stock, Qty 20+

0

47

Jonsered 532420463

BLADE.22PLUS

$22.99

$

In Stock, only 2 left!

0

48

Jonsered 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 7

0

49

Jonsered 532850263

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

50

Jonsered 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

51

Jonsered 532430599

No Description Available

$

$

Not available

53

Jonsered 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

56

Jonsered 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

57

Jonsered 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

58

Jonsered 532441196

No Description Available

$

$

Not available

59

Jonsered 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 2 left!

0

64

Jonsered 000000000

No Description Available

Note: KOHLER XT675-2037 FOR SERVICE PARTS 1-800-544-2444

$

$

Not available

83

Jonsered 532750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 16

0

84

Jonsered 532428124

FASTENER.PUSH.O.250X0.783

$6.49

$

In Stock, only 2 left!

0

85

Jonsered 532434530

BRACKET.SKIRT.22+.BZP

$6.49

$

In Stock, Qty 13

0

96

Jonsered 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0

99

Jonsered 580991507

COVER.ASM.FRONT JONSERED AWD

$

$

Not available

115

Jonsered 532175262
