J630ES (961920066-00) - Jonsered Snow Thrower (2013-9) ENGINE Parts Diagram

Snow Thrower

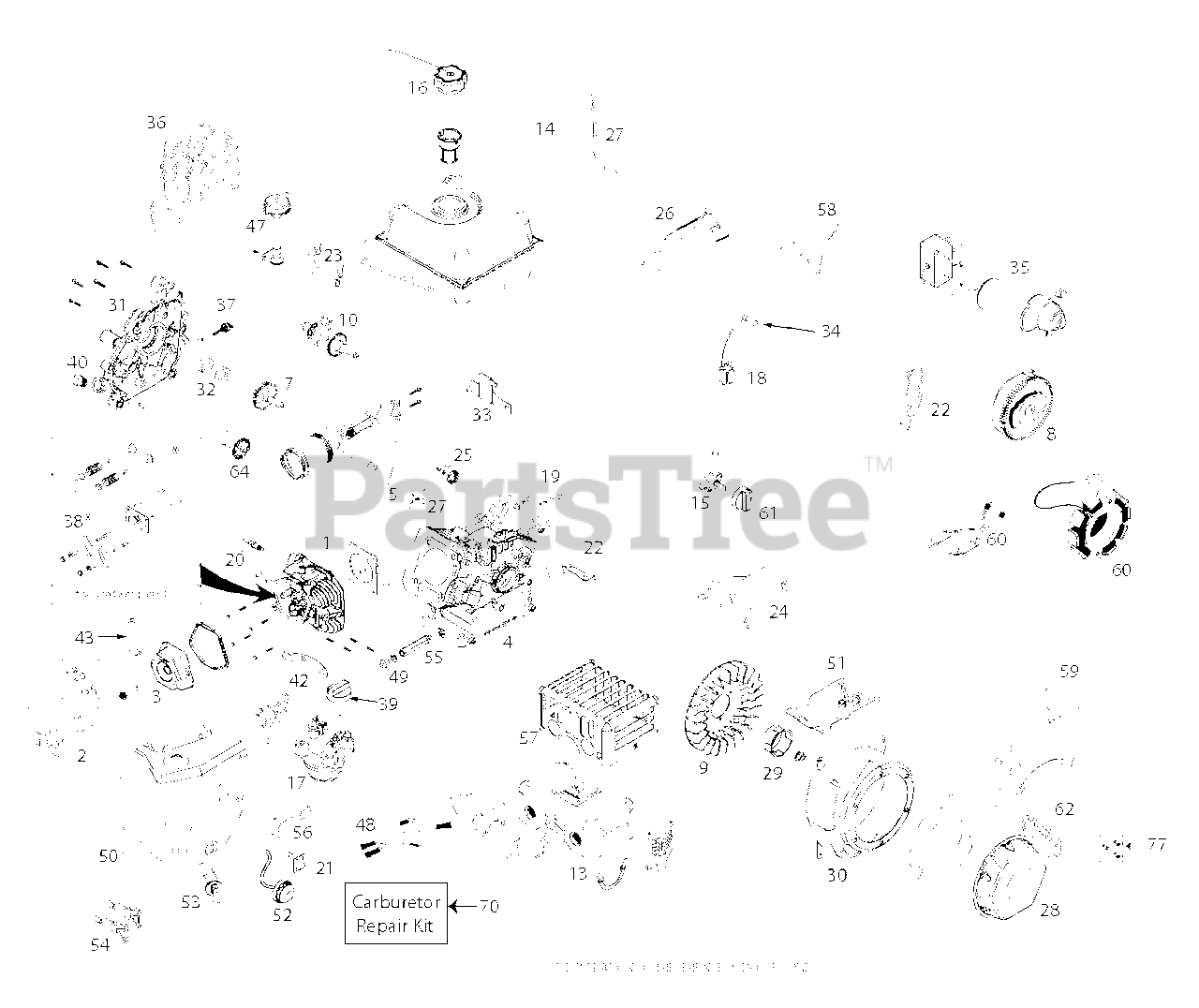

ENGINE Parts Diagram

  • Title
1

Jonsered 532429254

CYLINDER.HEAD.ASSY(SK2911000)

$376.99

$

Usually ships in 3-10 days

0

2

Jonsered 532429613

PUSH ROD TAPPET KIT
(Superseded to 581618401)

$66.99

$

Usually ships in 3-10 days

0

3

Jonsered 532429303

VALVE.COVER(SK4144500)

$31.99

$

In Stock, only 1 left!

0

4

Jonsered 532429614

CYLINDER ASSY SNOW

$

$

Not available

5

Jonsered 532429258

PISTON.AND.ROD.ASSY(SK2911400)

$96.99

$

Usually ships in 3-10 days

0

7

Jonsered 532429253

CAMSHAFT(SK2911600)

$85.99

$

Usually ships in 3-10 days

0

8

Jonsered 532443895

FLYWHEEL.EL.ST.SKSNO2401.1

$265.99

$

Usually ships in 3-10 days

0

9

Jonsered 532429238

FLYWHEEL.FAN

$17.99

$

Usually ships in 3-10 days

0

10

Jonsered 532446643

CRANKSHAFT.KEYED.SNOW.291CC.LC

$

$

Not available

13

Jonsered 532429208

MUFFLER.ASSY.SNOW(SKSN4200)

$125.99

$

Usually ships in 3-10 days

0

14

Jonsered 532434889

FUEL TANK ASSY - SNOW (291CC)

$148.99

$

Usually ships in 3-10 days

0

15

Jonsered 532429234

FUEL.PETCOCK.SNOW(SKSN4900)

$18.99

$

Usually ships in 3-10 days

0

16

Jonsered 532429211

FUEL.TANK.CAP.SNOW(SKSN4301)
(Superseded to 532424942)

$17.99

$

Usually ships in 3-10 days

0

17

Jonsered 532429215

CARBURETOR.ASSY.SNOW(SKSN2302)
(Superseded to 585020405)

$125.99

$

In Stock, only 1 left!

0

18

Jonsered 532429610

IGNITION COIL ASSY
(Superseded to 532429307)

$60.99

$

In Stock, only 1 left!

0

19

Jonsered 532429222

CDI.BOX.ASSY.SNOW(SKSN4404)

$13.99

$

Usually ships in 3-10 days

0

20

Jonsered 532429255

SPARK.PLUG(SK2911550)
(Superseded to 532424939)

$31.99

$

In Stock, only 3 left!

0

21

Jonsered 532429223

ON/OFF.SWITCH.SNOW(SKSN4403)

$17.99

$

Usually ships in 3-10 days

0

22

Jonsered 532429232

SHIELD.U/FYWHL.CHARG(SKSN4604)

$8.99

$

Usually ships in 3-10 days

0

23

Jonsered 532438014

KIT.FUEL.HOSE.208CC.SING/STAGE

$12.99

$

Usually ships in 3-10 days

0

24

Jonsered 532435579

TOP.SHIELD.LCT.

$9.49

$

Usually ships in 3-10 days

0

25

Jonsered 532429292

GOVERNOR.GEAR.ASSY(SK2912900)

$15.99

$

Usually ships in 3-10 days

0

26

Jonsered 532429248

GOVERNOR.ARM.ASSY.(SKSN2502)

$11.99

$

Usually ships in 3-10 days

0

27

Jonsered 532429250

GOVERNOR.SHAFT.(SK2913100)

$17.99

$

Usually ships in 3-10 days

0

28

Jonsered 532429226

RECOIL.START.ASSY.(SKSN2600)
(Superseded to 589524501)

$120.99

$

Usually ships in 3-10 days

0

29

Jonsered 532429227

STARTER.CUP.SMALLSNOW(SKSN2601

$17.99

$

Usually ships in 3-10 days

0

30

Jonsered 532429229

HOUSING.BLOWER.ASM
(Superseded to 587142701)

$284.99

$

Usually ships in 3-10 days

0

31

Jonsered 532429241

CRANKCASE.COVER.ASY(SK2913600)

$284.99

$

Usually ships in 3-10 days

0

32

Jonsered 532429283

OIL.SEAL.KIT(SK2913900)

$45.99

$

In Stock, only 1 left!

0

33

Jonsered 532429290

ELECTRIC.START.BRKT(SKSN4405)

$21.99

$

Usually ships in 3-10 days

0

34

Jonsered 532436966

SPARK.PLUG.BOOT.SNW,SKSN4691.1

$17.99

$

In Stock, only 1 left!

0

35

Jonsered 532429220

ELECTRIC.START.ASSY(SKSN2400)

$399.99

$

Usually ships in 3-10 days

0

36

Jonsered 532429615

ENGINE.GASKET.KIT(SK2914300)

$72.99

$

Usually ships in 3-10 days

0

37

Jonsered 532435534

DIPSTK.OIL.BLK.LCTSK4143711.1

$12.99

$

In Stock, only 1 left!

0

38

Jonsered 532429612

ROCKER ARM KIT

$34.99

$

Usually ships in 3-10 days

0

39

Jonsered 532429224

CHOKE.KNOW.SNOW(SKSN4500)

$9.49

$

In Stock, only 4 left!

0

40

Jonsered 532429242

NONREMVABLE.OIL.PLUG(SK4143715

$10.99

$

Usually ships in 3-10 days

0

42

Jonsered 532429257

CDI.BOX.BRKT.SNOW(SKSN4402)

$5.99

$

Usually ships in 3-10 days

0

43

Jonsered 580353801

Breather Tube, LCT 291/369/414
(Superseded to 587179601)

$7.49

$

In Stock, only 1 left!

0

47

Jonsered 532429237

HIGHOIL.FILL.ASSY.KIT(SKSN4911

$10.99

$

Usually ships in 3-10 days

0

48

Jonsered 532429284

WIRE.HARNESS(SKSN4406)

$36.99

$

In Stock, only 1 left!

0

49

Jonsered 532435494

OIL.DRAIN.PLUG

$9.99

$

Usually ships in 3-10 days

0

50

Jonsered 532429206

HEATER.BOX.ASSY.SNOW(SKSN2100)

$74.99

$

In Stock, only 1 left!

0

51

Jonsered 532429231

SHIELD.CYLINDER.SNOW(SK4141010

$4.99

$

Usually ships in 3-10 days

0

52

Jonsered 532429218

PRIMER.BULB.ASSY(SKSN4304)
(Superseded to 595079601)

$10.99

$

Usually ships in 3-10 days

0

53

Jonsered 532429221

KEY.SWITCH.ASSY.SNOW(SKSN4401)

$26.99

$

In Stock, only 3 left!

0

54

Jonsered 532443059

KEY SET(2 KEYS) SKSN0407.1

$13.99

$

Usually ships in 3-10 days

0

55

Jonsered 532432687

EXTENDED OIL DRAIN TUBE

$39.99

$

Usually ships in 3-10 days

0

56

Jonsered 532429213

SHIELD.VAPOR(SKSN4606)

$72.99

$

Usually ships in 3-10 days

0

57

Jonsered 532437464

SHIELD.MUFFLER.

$68.99

$

In Stock, only 1 left!

0

58

Jonsered 532429225

GOVERNOR.LINK.SHIELD(SKSN2501)

$6.49

$

Usually ships in 3-10 days

0

59

Jonsered 532429287

FUEL.TANK.SKIRT(SKSN2101)

$45.99

$

Usually ships in 3-10 days

0

60

Jonsered 532443896

ALTERN.60WATT.SKSN2402.1

$145.99

$

Usually ships in 3-10 days

0

61

Jonsered 532432752

FUEL KNOB-SNOW

$12.99

$

In Stock, only 2 left!

0

62

Jonsered 532429228

STARTER.GRIP.SNOW(SKSN2603.1)
(Superseded to 532443899)

$17.99

$

Usually ships in 3-10 days

0

65

Jonsered 581372901

TAPPET KIT.LCT.SK2911005.1

$12.99

$

Usually ships in 3-10 days

0

70

Jonsered 580353701

Carburetor Repair Kit, 291CC/4

$72.99

$

In Stock, only 1 left!

0

77

Jonsered 532432688

Recoil Bolt Kit, LCT

$4.99

$

In Stock, only 2 left!
