J627 (961920064-00) - Jonsered Snow Thrower (2013-9) ENGINE Parts Diagram

Snow Thrower

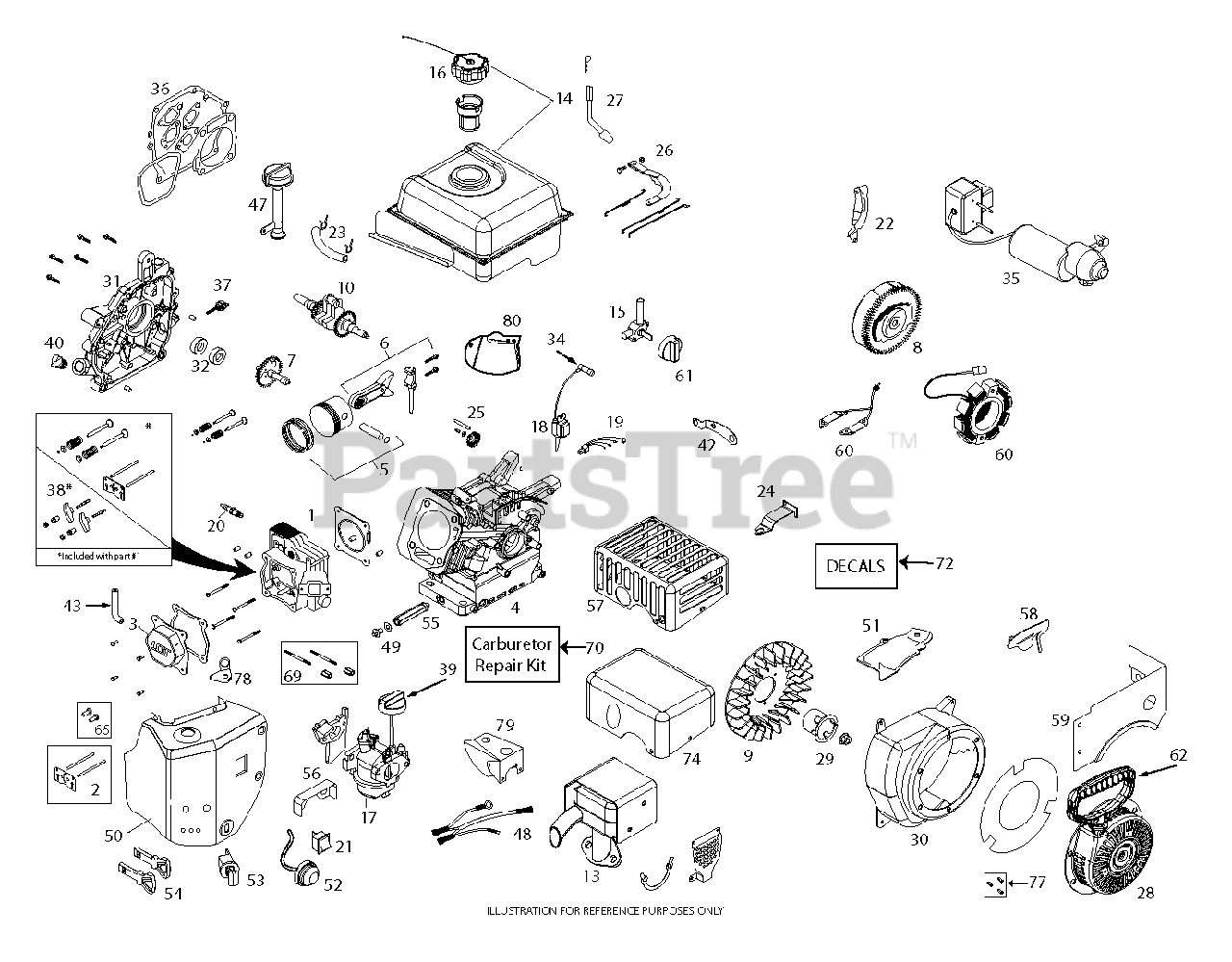

ENGINE Parts Diagram

  • Title
1

Jonsered 532420578

CYLINDR.HEAD.SRV.KIT
(Superseded to 582045701)

$182.99

$

Usually ships in 3-10 days

0

2

Jonsered 532420579

KIT.PUSH.ROD.SRV(SK208-1001)

$39.99

$

In Stock, only 1 left!

0

3

Jonsered 532420580

VALVE COVER ASSEMBLY
(Superseded to 587176901)

$51.99

$

Usually ships in 3-10 days

0

4

Jonsered 532436567

CYLINDER.ASM.SKSN0001.2

$

$

Not available

5

Jonsered 532420582

KIT.PISTON.SRV(SK208-1400)

$169.99

$

Usually ships in 3-10 days

0

6

Jonsered 532420583

KIT.CONNECT.ROD.SRV(SK208-1500

$45.99

$

Usually ships in 3-10 days

0

7

Jonsered 532420584

KIT.CAMSHAFT.SRV(SK208-1600)
(Superseded to 582051401)

$102.99

$

Usually ships in 3-10 days

0

8

Jonsered 532443892

208CC ELEC START FLYWHEEL

$84.99

$

Usually ships in 3-10 days

0

9

Jonsered 532420586

KIT.COOLNG.FAN.SERV(SK208-4000

$11.99

$

In Stock, only 1 left!

0

10

Jonsered 532446642

(Superseded to 584362101)

$148.99

$

Usually ships in 3-10 days

0

13

Jonsered 532436563

ASSY.MUFFLER.GENII.SKSN0201.1
(Superseded to 587737801)

$56.99

$

Usually ships in 3-10 days

0

14

Jonsered 532436564

FUEL.TK.ASSY.GENII.SKSN0311.1

$169.99

$

Usually ships in 3-10 days

0

15

Jonsered 532429234

FUEL.PETCOCK.SNOW(SKSN4900)

$18.99

$

Usually ships in 3-10 days

0

16

Jonsered 532424942

FUEL CAP OVERSIZED CLICK STYLE

$17.99

$

Usually ships in 3-10 days

0

17

Jonsered 532436565

CARB.ASSY.GEN II,SKSN0312.1
(Superseded to 585020402)

$68.99

$

In Stock, only 2 left!

0

18

Jonsered 532443934

208CC IGN COIL (STD)

$62.99

$

In Stock, only 1 left!

0

20

Jonsered 532424939

SPARK.PLUG(2083810)

$31.99

$

In Stock, only 3 left!

0

21

Jonsered 532424957

SWITCH.ON/OFF(SKSN-0403)

$45.99

$

In Stock, only 1 left!

0

22

Jonsered 532424975

SHLD.ELEC.START.FLY(SKSN-0605)

$

$

Not available

23

Jonsered 532432144

FUEL HOSE KIT
(Superseded to 532438014)

$12.99

$

Usually ships in 3-10 days

0

24

Jonsered 532429259

SPEED.CTRL.BRKT.(SKSN0150)

$13.99

$

Usually ships in 3-10 days

0

25

Jonsered 532429646

GOVENOR.GEARS ASM(SK2082900)

$39.99

$

Usually ships in 3-10 days

0

26

Jonsered 581768701

CARBURETTOR GOVERNOR LINK.ASM.

$9.49

$

In Stock, only 2 left!

0

27

Jonsered 532420602

KIT.GOVERNOR.CRANK(SK208-3100)

$7.49

$

In Stock, only 3 left!

0

28

Jonsered 532436967

RECOIL.STRT.ROUND(BLK) SNOW

$53.99

$

Usually ships in 3-10 days

0

29

Jonsered 532436968

STRTER.CUP(NON-SLOT)SKSN0601.2

$34.99

$

Usually ships in 3-10 days

0

30

Jonsered 581192001

BLOWER HOUSING ASSEMBLY

$31.99

$

Usually ships in 3-10 days

0

30

Jonsered 580960501

BLOWER.HOUSING.ELEC.START.LCT

$

$

Not available

31

Jonsered 532420606

CRANKCASE COVER ASSY
(Superseded to 583630001)

$68.99

$

Usually ships in 3-10 days

0

31

Jonsered 581007301

COVER CRANKCASE.LCT.SK2083605

$96.99

$

Usually ships in 3-10 days

0

32

Jonsered 532429599

SEAL KIT (2 PCS)

$17.99

$

Usually ships in 3-10 days

0

34

Jonsered 532436966

SPARK.PLUG.BOOT.SNW,SKSN4691.1

$17.99

$

In Stock, only 1 left!

0

35

Jonsered 532436466

ELEC.START.GEN2.SKSN0400.2

$460.99

$

Usually ships in 3-10 days

0

36

Jonsered 532429601

GASKET.KIT.208CC(SK2084300.1)

$66.99

$

Usually ships in 3-10 days

0

37

Jonsered 532420961

DIPSTICK SMALL

$12.99

$

Usually ships in 3-10 days

0

38

Jonsered 532429691

ROCKER ARM KIT

$68.99

$

Usually ships in 3-10 days

0

39

Jonsered 532429224

CHOKE.KNOW.SNOW(SKSN4500)

$9.49

$

In Stock, only 3 left!

0

40

Jonsered 532429598

NON REMOVABLE PLUG

$13.99

$

Usually ships in 3-10 days

0

43

Jonsered 580353401

TUBE.BREATHER.LCT.208

$6.49

$

Usually ships in 3-10 days

0

47

Jonsered 581007201

High Oil Fill Tube Assembly

$10.99

$

Usually ships in 3-10 days

0

47

Jonsered 532424969

HIGH OIL FILL DIPSTICK ASSEM

$28.99

$

In Stock, only 1 left!

0

48

Jonsered 532429262

WIRE.HARNESS.SNOW

$15.99

$

Usually ships in 3-10 days

0

49

Jonsered 532435495

KIT.OIL.DRAIN.PLUG(SK2089911

$9.99

$

In Stock, only 3 left!

0

50

Jonsered 532436561

HEATER.BOX.ASY-GEN2

$159.99

$

Usually ships in 3-10 days

0

51

Jonsered 532437119

(Superseded to 583516301)

$37.99

$

Usually ships in 3-10 days

0

52

Jonsered 532424949

PRIMER.BULB.WITH HOSE (SNOW)

$13.99

$

Usually ships in 3-10 days

0

53

Jonsered 532424954

SWITH.KEY.ASSEM.SNOW.SINGLE.ST

$28.99

$

In Stock, Qty 6

0

54

Jonsered 532443059

KEY SET(2 KEYS) SKSN0407.1

$13.99

$

Usually ships in 3-10 days

0

55

Jonsered 532432686

EXTENDED OIL DRAIN TUBE

$42.99

$

In Stock, only 1 left!

0

56

Jonsered 532429260

SHIELD.VAPOR.SNOW

$17.99

$

In Stock, only 1 left!

0

57

Jonsered 532436672

CE COMPLAINT.MUFLR.SKSN0202.1

$66.99

$

Usually ships in 3-10 days

0

58

Jonsered 532424960

GOVERNOR.LINK.SHIELD PLATE

$

$

Not available

59

Jonsered 532436562

FUEL.TNK.SKRT.GENII.SKSN0103.1

$56.99

$

Usually ships in 3-10 days

0

60

Jonsered 532443893

208CC 60W ALTERNATOR

$68.99

$

Usually ships in 3-10 days

0

61

Jonsered 532432752

FUEL KNOB-SNOW

$12.99

$

In Stock, only 2 left!

0

62

Jonsered 532424968

SNOW.STARTER.CHIP(SKSN-0603)
(Superseded to 532443899)

$17.99

$

Usually ships in 3-10 days

0

65

Jonsered 581372801

TAPPET.KIT.LCT.208CC

$22.99

$

Usually ships in 3-10 days

0

69

Jonsered 532424951

CARB.STUDS & COUPLING KIT.SNOW

$21.99

$

Usually ships in 3-10 days

0

70

Jonsered 580353601

Carburetor Repair Kit, LCT SK9900

$120.99

$

Usually ships in 3-10 days

0

74

Jonsered 581768801

Muffler Heat Shield Cover

$48.99

$

In Stock, only 1 left!

0

77

Jonsered 532432688

Recoil Bolt Kit, LCT

$4.99

$

In Stock, only 2 left!

0

78

$7.99

$

Usually ships in 3-10 days

0
