J625HWT (961720014-00) - Jonsered Walk-Behind Trimmer (2014-02) COVER Parts Diagram

Walk-Behind Trimmer

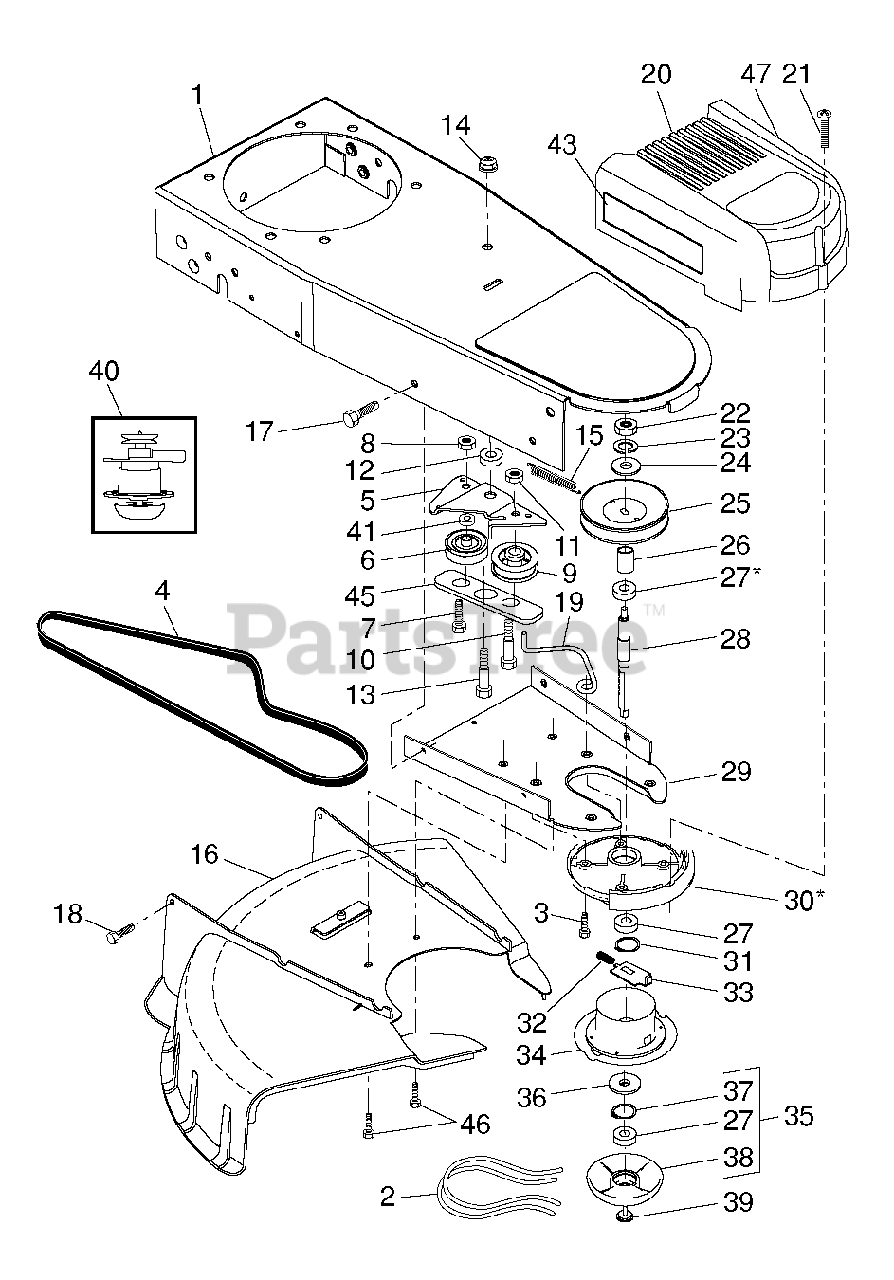

COVER Parts Diagram

  • Title

1

586829501

$

$

Not available

2

Jonsered 532182219

LINE.BUND.18PC

$17.99

$

In Stock, only 1 left!

0

3

Jonsered 532173715

SCREW

$6.49

$

Usually ships in 3-10 days

0

4

Jonsered 532185476

BELT-V.STRING TRIMMER.

$31.99

$

Usually ships in 3-10 days

0

5

Jonsered 586506002

Idler Trimmer Wheel Bracket, 14

$

$

Not available

6

Jonsered 532166042

PULLEY.V-GROOVE.IDLER

$26.99

$

Usually ships in 3-10 days

0

7

Jonsered 532173716

BOLT, HEX HEAD 3/8-16 X 1.25
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

8

Jonsered 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

9

Jonsered 532166043

IDLER PULLEY

$31.99

$

In Stock, only 1 left!

0

10

Jonsered 532160829

No Description Available

$7.49

$

In Stock, only 2 left!

0

11

Jonsered 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

12

Jonsered 532173717

SPACER.IDLER.BRACKET

$5.99

$

Usually ships in 3-10 days

0

13

Jonsered 532174719

BOLT SHOULDER 3/8 -16X1

$9.49

$

In Stock, only 1 left!

0

14

Jonsered 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

15

Jonsered 532173811

SPRING.RETURN.WHEELED.TRIMMER

$7.49

$

In Stock, only 1 left!

0

16

Jonsered 584953201

Trimmer Deflector, Bottom HW

$148.99

$

In Stock, only 1 left!

0

17

Jonsered 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

18

Jonsered 532178848

SCREW

$7.49

$

In Stock, Qty 20+

0

19

Jonsered 532199574

BELT KEEPER

$6.49

$

In Stock, only 1 left!

0

20

581819304

$

$

Not available

21

Jonsered 532149746

SCREW.SLOT.TORX.

$7.49

$

In Stock, only 1 left!

0

22

Jonsered 873610600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

23

Jonsered 532850263

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

24

Jonsered 819121214

WASHER, FLAT 3/8
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

25

Jonsered 532180340

PULLEY.SPINDLE.WHEELED.TRIMMER

$40.99

$

In Stock, only 3 left!

0

26

Jonsered 532172551

SPACER, PULLEY

$7.49

$

Usually ships in 3-10 days

0

27

Jonsered 532174549

BEARING
(Superseded to 532110485)

$13.99

$

In Stock, Qty 11

0

28

Jonsered 532172520

JACKSHAFT.WHEELED.TRIMMER

$66.99

$

In Stock, Qty 7

0

29

Jonsered 532186752

COVER, CHASSIS, BOTTOM

$

$

Not available

30

Jonsered 532174543

SPINDLE HOUSING ASSEMBLY

Note: . 27

$66.99

$

Usually ships in 3-10 days

0

31

Jonsered 532174581

RING, RETAINING, EXTERNAL,

$7.49

$

In Stock, only 1 left!

0

32

Jonsered 532173973

SPRING.1.5".COMPRESSION

$18.99

$

In Stock, only 2 left!

0

33

Jonsered 532172519

LOCKING PLATE

$7.49

$

In Stock, Qty 8

0

34

Jonsered 532180338

CARRIER PLATE ASSEMBLY
(Superseded to 594935003)

$74.99

$

In Stock, Qty 9

0

35

Jonsered 532182217

MOW BALL ASSEMBLY

Note: . 27 37 38

$31.99

$

In Stock, Qty 9

0

36

Jonsered 532172516

COVER, BEARING

$8.99

$

In Stock, only 1 left!

0

37

Jonsered 532174580

RING, RETAINING, INTERNAL,

$9.99

$

In Stock, only 2 left!

0

38

Jonsered 532172523

MOW BALL
(Superseded to 532180337)

$26.99

$

Usually ships in 3-10 days

0

39

Jonsered 532180334

BOLT, MOW BALL

$12.99

$

In Stock, Qty 6

0

40

Jonsered 532180333

ASM.ADJUSTABLE.SPINDLE.WHLD.TR
(Superseded to 596878501)

Note: . 22-28 30-39

$133.99

$

Usually ships in 3-10 days

0

41

Jonsered 532174029

SPACER

$

$

Not available

43

Jonsered 532174042

DECAL, INSTRUCTION

$8.99

$

Usually ships in 3-10 days

0

45

Jonsered 532186753

BRACKET.BELT.KEEPER.BLACK

$

$

Not available

46

Jonsered 817060408

SCREW

$5.99

$

In Stock, only 2 left!

0

47

Jonsered 532182205

DECAL.INSTRUCTION.CE.TRIM.STRG
(Superseded to 532174036)

$

$

Not available
