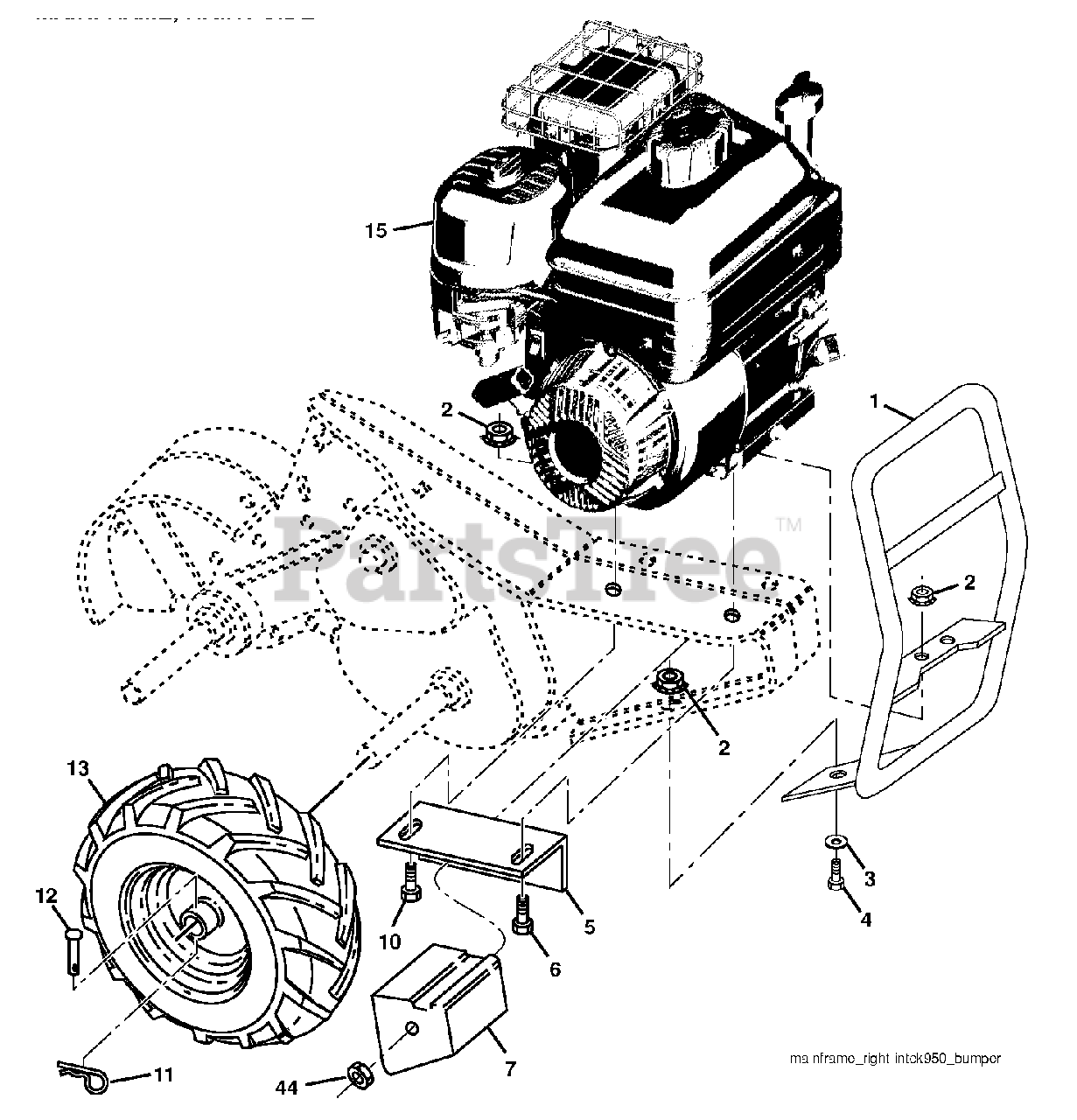

J208D17 (960920036-00) - Jonsered Rear-Tine Cultivator (2015-11) MAINFRAME RIGHT SIDE Parts Diagram

Rear-Tine Cultivator

MAINFRAME RIGHT SIDE Parts Diagram

  • Title

1

Jonsered 583879301

BUMPER.ASM.TILLER.BLACK

$96.99

$

Usually ships in 3-10 days

0

2

Jonsered 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

3

Jonsered 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

4

Jonsered 874760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

5

Jonsered 581864701

BRACKET.REINFORCEMENT.RH.BLACK

$

$

Not available

6

Jonsered 874760528

BOLT, HEX 5/16-18X1-3/4

$4.99

$

In Stock, Qty 12

0

7

Jonsered 581010401

COUNTERWEIGHT.RH

$56.99

$

Usually ships in 3-10 days

0

10

Jonsered 874760524

BOLT
(Superseded to 74760524)

$2.49

$

Usually ships in 3-10 days

0

11

Jonsered 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

12

Jonsered 532171271

RIVET
(Superseded to 532126875)

$6.49

$

In Stock, Qty 20+

0

13

Jonsered 581509901

Wheel Assembly, DRT 13 X 5-6 RT Silver

$145.99

$

Usually ships in 3-10 days

0

15

Jonsered 000000000

No Description Available

Note: B S 130G32-0061-F1 FOR SERVICE PARTS 1-800-233-3723

$

$

Not available

44

Jonsered 873510600

NUT **

$6.49

$

Usually ships in 3-10 days

0
