J208C14 (960920035-01) - Jonsered Rear-Tine Cultivator (2016-01) TINE ASSEMBLY Parts Diagram

Rear-Tine Cultivator

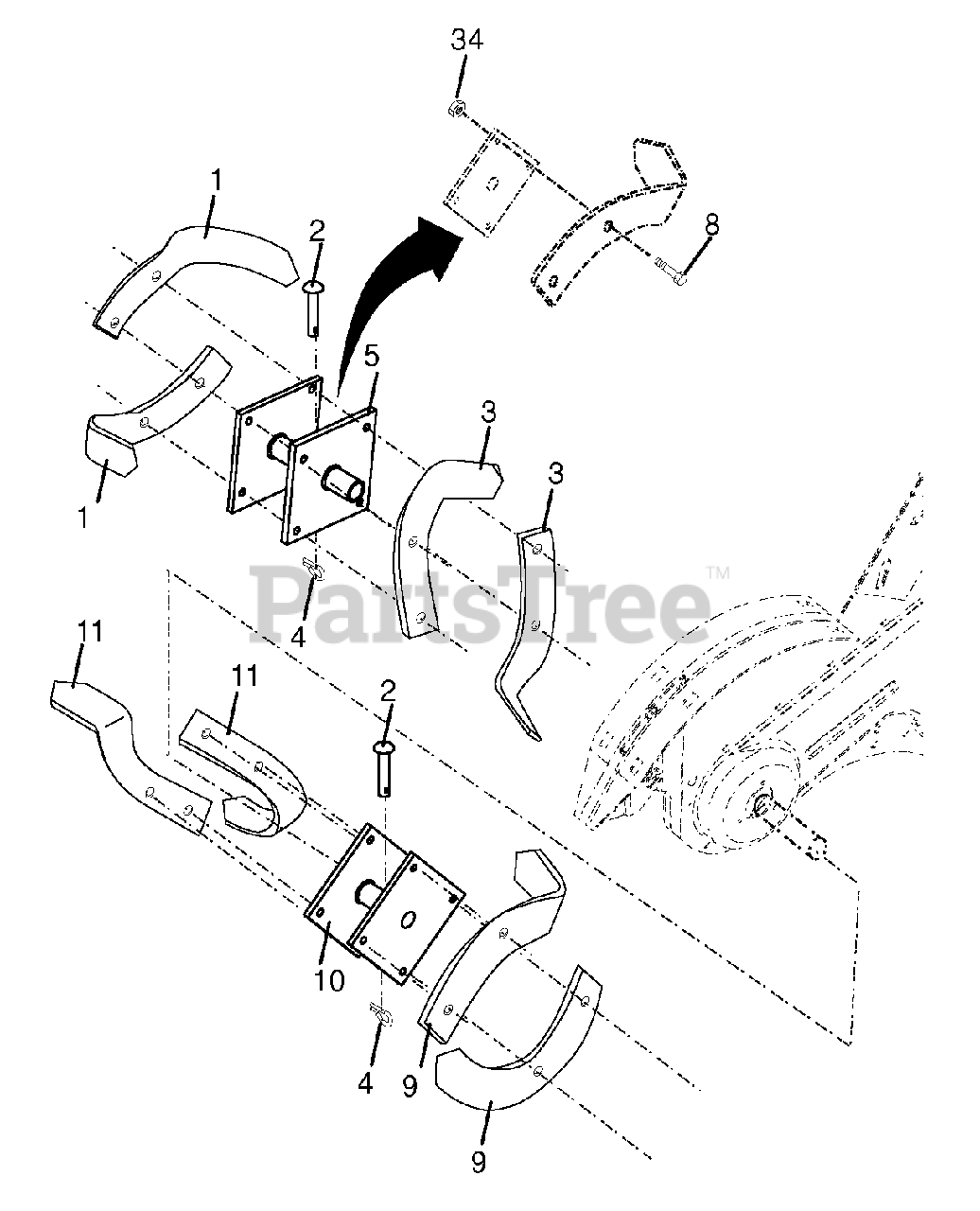

TINE ASSEMBLY Parts Diagram

  • Title
1

Jonsered 532004459

TINE TI
(Superseded to 532006554)

Note: LH

$

$

Not available

2

Jonsered 532132673

CLEVIS PIN

$4.99

$

In Stock, Qty 20+

0

3

Jonsered 532006554

TINE.LH.12"

Note: LH

$

$

Not available

4

Jonsered 532124660

SPRING RETAINER
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

5

Jonsered 584309601

HUB.&.PLATE.LH.TILLER.BLACK

Note: LH

$34.99

$

Usually ships in 3-10 days

0

8

Jonsered 874610616

BOLT.HEX.001X20.37-24X1.ZINC

$7.49

$

In Stock, Qty 20+

0

9

Jonsered 532004460

TINE TI
(Superseded to 532006555)

Note: RH

$

$

Not available

10

Jonsered 584309602

(Superseded to 132722)

Note: RH

$30.99

$

Usually ships in 3-10 days

0

11

Jonsered 532006555

TINE.RH.12"(72R)

Note: RH

$

$

Not available

34

Jonsered 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

Usually ships in 3-10 days

0
