J208C14 (960920035-01) - Jonsered Rear-Tine Cultivator (2016-01) MAINFRAME LEFT SIDE Parts Diagram

Rear-Tine Cultivator

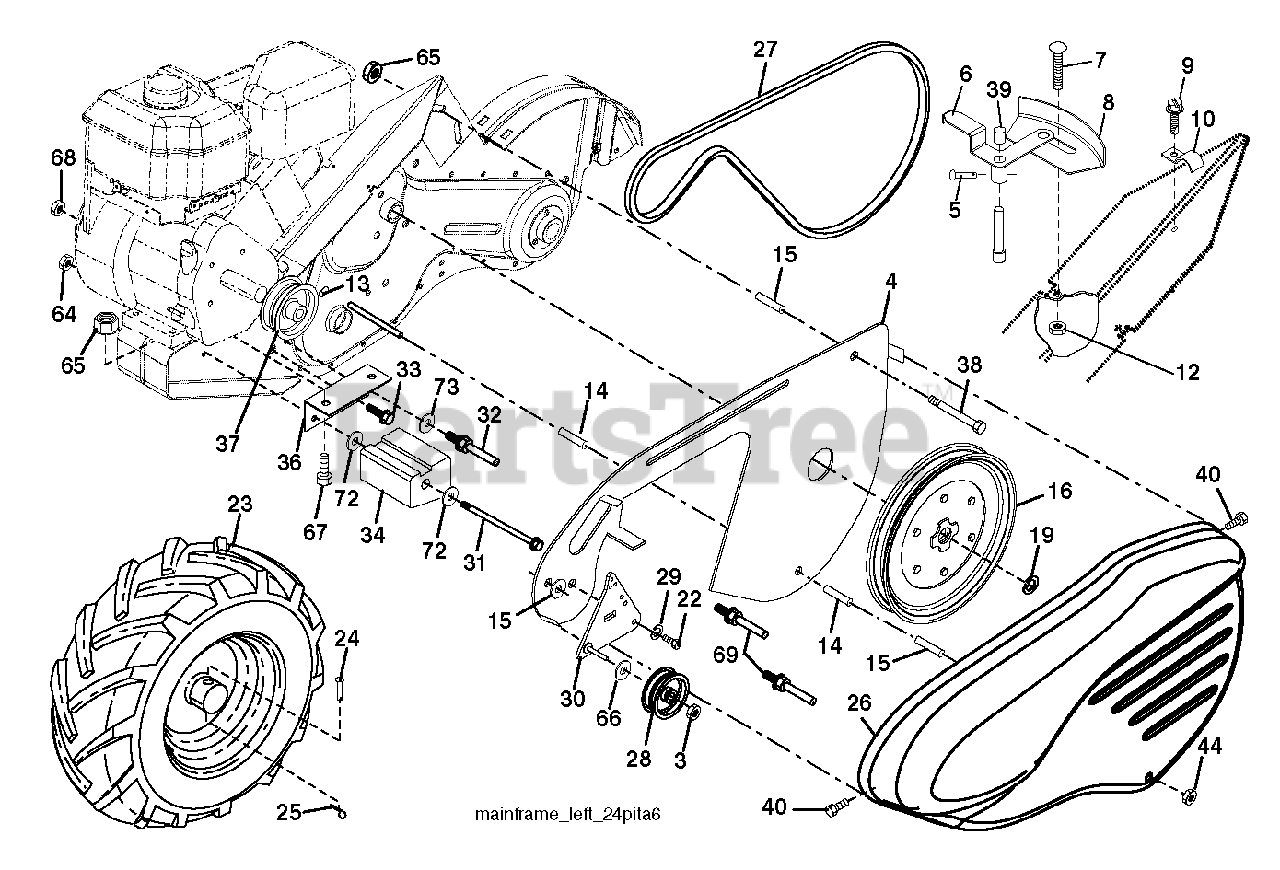

MAINFRAME LEFT SIDE Parts Diagram

  • Title

3

Jonsered 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

4

Jonsered 583877701

(Superseded to 532432420)

Note: Inner Belt Guard RT

$79.99

$

Usually ships in 3-10 days

0

5

Jonsered 532164329

PIN.SPIROL.FLARED

$7.49

$

In Stock, Qty 8

0

6

Jonsered 532110111

LEVER ASM CRT

$18.99

$

Usually ships in 3-10 days

0

7

Jonsered 872110404

BOLT

$9.49

$

Usually ships in 3-10 days

0

8

Jonsered 581845001

(Superseded to 532008700)

$4.99

$

In Stock, only 1 left!

0

9

Jonsered 532086777

TAPPING SCREW
(Superseded to 532750097)

$4.99

$

In Stock, Qty 14

0

10

Jonsered 532446045

CLIP.PLATED
(Superseded to 532009484)

$6.49

$

In Stock, only 4 left!

0

12

Jonsered 873510400

NUT
(Superseded to 873640400)

$

$

Not available

13

Jonsered 823230506

SET SCREW **

$4.99

$

In Stock, only 2 left!

0

14

Jonsered 532156117

SPACER-SPLIT.327 X .42

$6.49

$

Usually ships in 3-10 days

0

15

585830801

$

$

Not available

16

Jonsered 532145102

SHEAVE, TRANSMISSION

$68.99

$

In Stock, only 3 left!

0

19

Jonsered 812000028

RETAINING RING LT
(Superseded to 532002267)

$7.49

$

In Stock, Qty 8

0

22

Jonsered 874770508

BOLT

$4.99

$

Usually ships in 3-10 days

0

23

Jonsered 581576701

Wheel Assembly, CRT LH 13 X 5 X 6 Silver

$227.99

$

Usually ships in 3-10 days

0

24

Jonsered 532171271

RIVET
(Superseded to 532126875)

$6.49

$

In Stock, Qty 20+

0

25

Jonsered 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

26

Jonsered 532442854

No Description Available

$

$

Not available

27

Jonsered 532132801

V-BELT
(Superseded to 591372401)

$17.99

$

In Stock, only 3 left!

0

28

Jonsered 532104679

PULLEY-IDLER TI

$18.99

$

In Stock, only 1 left!

0

29

Jonsered 812000032

KLIP RING

$7.49

$

Usually ships in 3-10 days

0

30

Jonsered 584289201

Idler Assembly Bracket, Long

$

$

Not available

31

Jonsered 581747201

BOLT.FIN.HEX.3/8-16UNC X 11.5

$4.99

$

In Stock, only 2 left!

0

32

Jonsered 532102141

SHIFT ARM CRT

$7.99

$

Usually ships in 3-10 days

0

33

Jonsered 874760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

34

Jonsered 581010601

COUNTERWEIGHT.LH

$102.99

$

Usually ships in 3-10 days

0

36

Jonsered 581864801

(Superseded to 584366901)

Note: LH

$13.99

$

Usually ships in 3-10 days

0

37

Jonsered 532130812

ENGINE PULLEY
(Superseded to 592642101)

$13.99

$

In Stock, only 2 left!

0

38

Jonsered 874760544

BOLT
(Superseded to 596218601)

$4.99

$

Usually ships in 3-10 days

0

39

Jonsered 532140062

CAP.PLUNGER.BLACK

$6.49

$

Usually ships in 3-10 days

0

40

Jonsered 532170488

SCREW.HEX.WSH.SLT.#10-24X.50

$6.49

$

In Stock, only 2 left!

0

44

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

64

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

65

Jonsered 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

66

Jonsered 819131316

WASHER

$4.99

$

In Stock, Qty 5

0

67

Jonsered 874760524

BOLT
(Superseded to 74760524)

$2.49

$

Usually ships in 3-10 days

0

68

Jonsered 873510600

NUT **

$6.49

$

Usually ships in 3-10 days

0

69

Jonsered 532164173

KEEPER.BELT.ENGINE

$8.99

$

Usually ships in 3-10 days

0

72

Jonsered 819132012

WASHER

$1.99

$

Usually ships in 3-10 days

0

73

Jonsered 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 1 left!

0
