J (994950) - Simplicity Two-Wheeled Tractor, 2hp Mower Group - 20" Parts Diagram

Two-Wheeled Tractor, 2hp

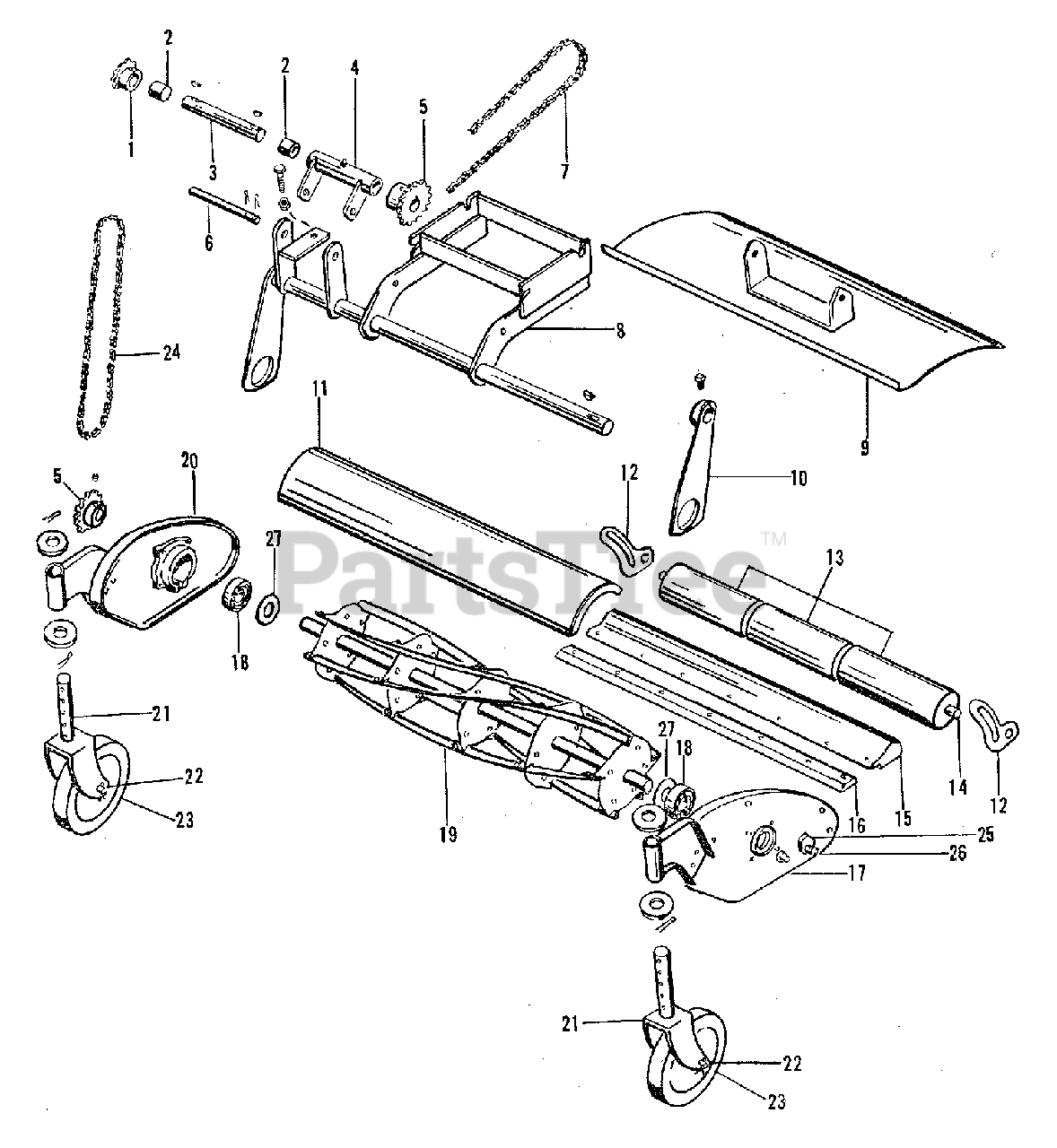

Mower Group - 20" Parts Diagram

  • Title

1

Simplicity 8111002

SPROCKET

$

$

Not available

2

Simplicity 8261052

IDLER SHAFT BEARING

$

$

Not available

3

Simplicity 8121003

SPROCKET SHAFT

$

$

Not available

4

Simplicity 8121501

SPROCKET BEARING HOUSING ASSEMBLY

$

$

Not available

5

Simplicity 8321017

SPROCKET

$

$

Not available

6

Simplicity 8121004

SPROCCKET ARM SHAFT

$

$

Not available

7

Simplicity 8121011

DRIVE CHAIN, 29" Long

$

$

Not available

8

Simplicity 8123501

PUSH ARM ASSEMBLY

$

$

Not available

9

Simplicity 8123500

GRASS FENDER ASSEMBLY

$

$

Not available

10

Simplicity 8121502

PUSH BAR ASSEMBLY, L.H.

$

$

Not available

11

Simplicity LP-472

BAR, Brush

$

$

Not available

12

Simplicity LP-475

BRACKET, Roller

$

$

Not available

13

Simplicity LP-220

ROLLER

$

$

Not available

14

Simplicity LP-476

SHAFT, Roller

$

$

Not available

15

Simplicity LP-212

BAR, Cutter

$

$

Not available

16

Simplicity LP-213

CUTTER BLADE BAR, W/Rivetes

$

$

Not available

17

Simplicity 10517

SIDE FRAME ASSEMBLY, L.H.

$

$

Not available

18

Simplicity 20257

BEARING, Ball

$13.99

$

Usually ships in 2-12 days

0

19

Simplicity 10370

REEL ASSEMBLY, W/Bearings

$

$

Not available

20

Simplicity 10516

SIDE FRAME ASSEMBLY, R.H.

$

$

Not available

21

Simplicity 20725

CASTER YOKE ASSEMBLY

$

$

Not available

22

Simplicity LP-513

AXLE, Caster

$

$

Not available

23

Simplicity LP-512

CASTER WHEEL w/Bearings

$

$

Not available

24

Simplicity 8121012

REEL CHAIN, 24" Long

$

$

Not available

25

Simplicity L-4114

ADJUSTING CAM

$

$

Not available

26

Simplicity F5-350

CAPSCREW, Hex Head, 3/8"-24 x 7/8

$

$

Not available

27

Simplicity LP-478

REEL BEARING WASHER

$

$

Not available
