J 55 SL (961210018-08) - Husqvarna Walk-Behind Mower (2013-05) DRIVE Parts Diagram

Walk-Behind Mower

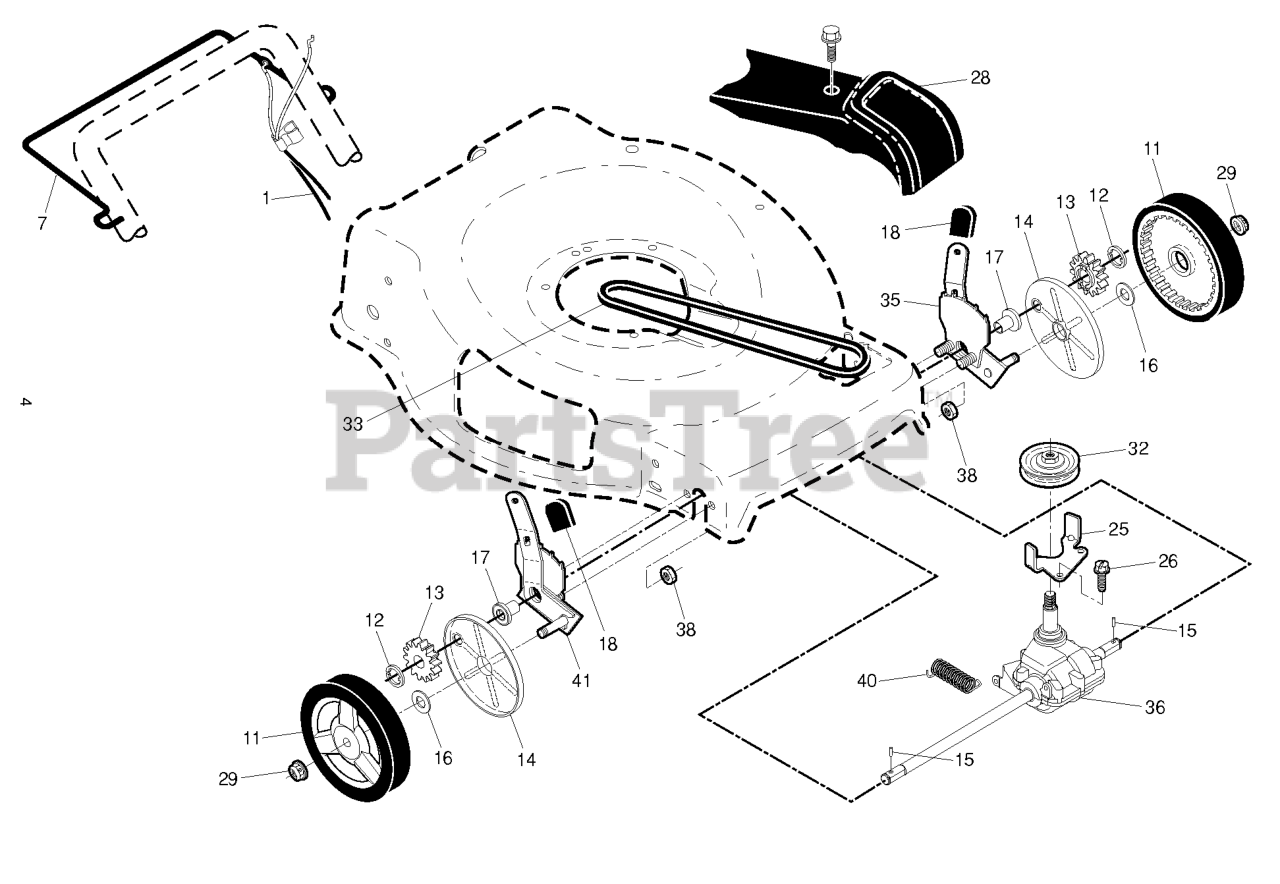

DRIVE Parts Diagram

  • Title
12

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 585123102

BAIL.CURVED.UNDER.BAIL.BLACK

$14.99

$

Usually ships in 3-10 days

0

$7.49

$

In Stock, Qty 6

0

32

Husqvarna 532443262

RP PULLEY.DRIVE.EZ/VAR.SCREWON

$13.99

$

In Stock, only 1 left!

0

25

Husqvarna 532431711

BRACKET.BELT.GUIDE.22+FGD.BZP

$

$

Not available

28

Husqvarna 581839001

COVER.DR.ASM.421097.HUSQ.CE

$136.99

$

Usually ships in 3-10 days

0

35

Husqvarna 581497904

RP ADJ.ASM.9.22+/LF/RR.21/RF
(Superseded to 581497907)

Note: INCLUDES BEARING, KEY #17

$

$

Not available

18

Husqvarna 532701037

SELECTOR KNOB

$5.99

$

In Stock, only 4 left!

0

36

Husqvarna 532424741

RP.TRANSMISSION.22+.FWGD.SS
(Superseded to 589600601)

$125.99

$

In Stock, only 2 left!

0

29

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 532403849

PINION.14.TEETH.FGD

$6.99

$

In Stock, Qty 8

0

1

Husqvarna 585040701

CABLE.DRIVE.VS/SS.22+FGD.MCCUL

$34.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532411081

WHEEL.8X1.75.H3SPK.RAD3.GY.BU3
(Superseded to 532401274)

$34.99

$

In Stock, only 1 left!

0

16

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

33

Husqvarna 532196853

BELT.DRIVE.FGD.

$20.99

$

Usually ships in 3-10 days

0

$8.99

$

In Stock, Qty 7

0

41

Husqvarna 581497903

RP_ADJUSTER.ASM.9.22+/RF/LR.21
(Superseded to 581497908)

Note: INCLUDES BEARING, KEY #17

$22.99

$

In Stock, Qty 8

0

14

Husqvarna 581840401

COVER.DUST.WHEEL.INNER.WALK

$6.99

$

In Stock, only 3 left!

0

15

Husqvarna 532404845

PAWL, DRIVE

$5.99

$

In Stock, only 3 left!

0

38

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0
