J 55 SL (961210018-06) - Husqvarna Walk-Behind Mower (2012-01) ENGINE Parts Diagram

Walk-Behind Mower

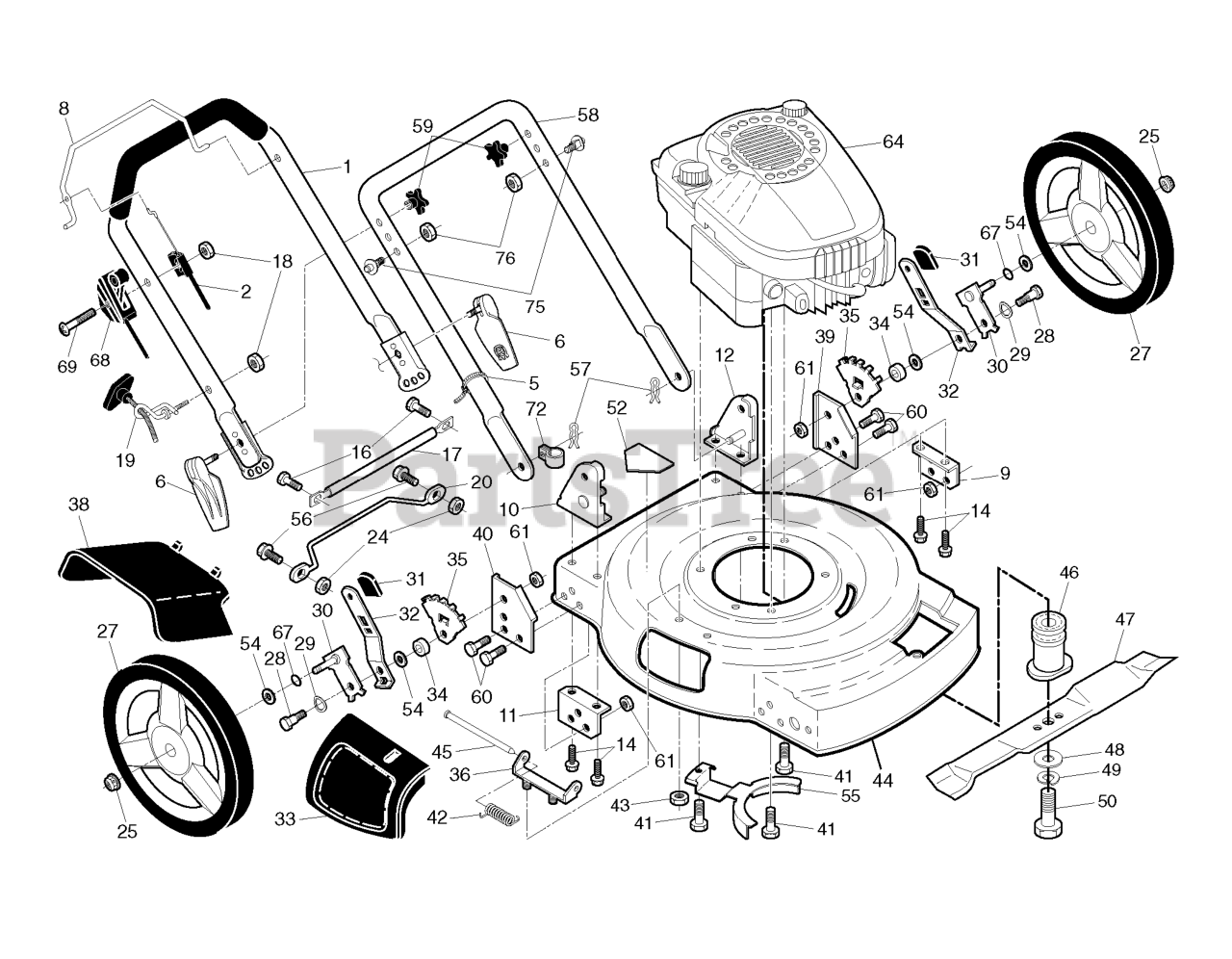

ENGINE Parts Diagram

  • Title

64

000000000

Note: B&S 124T02-0257-H1 FOR PARTS & SERVICE 1-800-233-3723

$

$

Not available

10

Husqvarna 532170975

HANDLE BRACKET ASM. RH
(Superseded to 532170345)

Note: RH

$7.49

$

In Stock, only 1 left!

0

17

Husqvarna 532177141

SUPPORT ROD
(Superseded to 532165175)

$10.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532401629

SPACER.HEIGHT.ADJUSTER

$6.49

$

In Stock, only 4 left!

0

48

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 2 left!

0

60

Husqvarna 874760612

BOLT

$4.99

$

In Stock, only 3 left!

0

28

Husqvarna 532174719

BOLT SHOULDER 3/8 -16X1

$9.49

$

In Stock, only 1 left!

0

18

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

11

Husqvarna 532195799

Support Bracket, Handle, RH

Note: RH

$

$

Not available

16

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

72

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0

Husqvarna 532182134

DECAL.INTRN.SELF-PROPELLED.02
(Superseded to 583119801)

Note: NOT SHOWN

$14.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532406428

SELECTOR SPRING, FRONT
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

8

Husqvarna 532190527

BAIL.COMF.FWGD.668.ORANGE.WALK

$14.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

39

Husqvarna 532419362

BRACKET.SUPPORT.LT.12.WHL.ORNG

Note: LH

$5.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532429001

BRACKET.ENG/BELTKEEPER.BZP

$7.49

$

In Stock, only 3 left!

0

46

Husqvarna 532421176

ADAPTER.BLADE/PULLEY.25M

$28.99

$

In Stock, only 1 left!

0

36

Husqvarna 532154132

BRACKET.ASM.HOUSING.EZ.MUL

$6.99

$

In Stock, only 1 left!

0

25

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

59

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, only 3 left!

0

76

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

42

Husqvarna 532152124

TORSION SPRING

$7.49

$

In Stock, only 3 left!

0

44

Husqvarna 532400660

Kit, Mower Housing

$

$

Not available

31

Husqvarna 532132800

SELECTOR KNOB
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

35

Husqvarna 532410807

BRACKET.ADJ.WHEEL.5POS.ADS

$4.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532401630

WASHER.CURVED.CYLINDRICAL

$4.99

$

In Stock, only 3 left!

0

19

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

69

Husqvarna 532183365

SCREW

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532419361

BRACKET.SUPPORT.RT.12.WHL.ORNG

Note: RH

$5.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532431995

FOOTGUARD.WIREFORM.CE

$

$

Not available

14

Husqvarna 532149741

SCREW.5/16-18X3/4
(Superseded to 532171877)

$7.49

$

In Stock, Qty 6

0

57

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

54

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, Qty 6

0

45

Husqvarna 532147286

ROD.HINGE.COMBI-C

$8.99

$

In Stock, Qty 9

0

67

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

56

Husqvarna 871191012

SCREW

$

$

Not available

30

Husqvarna 532406582

ARM.ASM.AXLE.5/9.POS.BZP

$

$

Not available

1

Husqvarna 532420835

Upper Handle

Note: Includes Foam Grip

$

$

Not available

43

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

33

Husqvarna 532196010

DOOR.MULCH.22.EZ.MULCH.GREY

$14.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532149293

ENGINE ZONE CONTROL CABLE

$24.99

$

In Stock, only 1 left!

0

58

Husqvarna 532419363

HANDLE LOWER EZ 2POS GRAY

$24.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532170977

HANDLE BRACKET ASM. LH
(Superseded to 532170346)

Note: LH

$7.49

$

In Stock, only 1 left!

0

75

Husqvarna 532199255

STUD.QUICK.ADJUST

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532195800

GUARD.SLKSCR.BELT.
(Superseded to 583686402)

Note: LH

$40.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532420611

Control Throttle

$

$

Not available

6

Husqvarna 532430679

QUICK.ASM.RELEASE.BLACK

$15.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532199379

Blade, 22"

$

$

Not available

38

Husqvarna 532196011

DEFLECTOR.GUARD.22..EZ.MULCH

$13.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

27

Husqvarna 532448173

WHEEL.12X1.75.CF.H3SPKRAD3
(Superseded to 585911001)

$26.99

$

In Stock, Qty 6

0

61

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532069180

LOCKNUT

$6.49

$

Usually ships in 3-10 days

0
