J 55 SL (961210018-04) - Husqvarna Walk-Behind Mower (2011-07) DRIVE Parts Diagram

Walk-Behind Mower

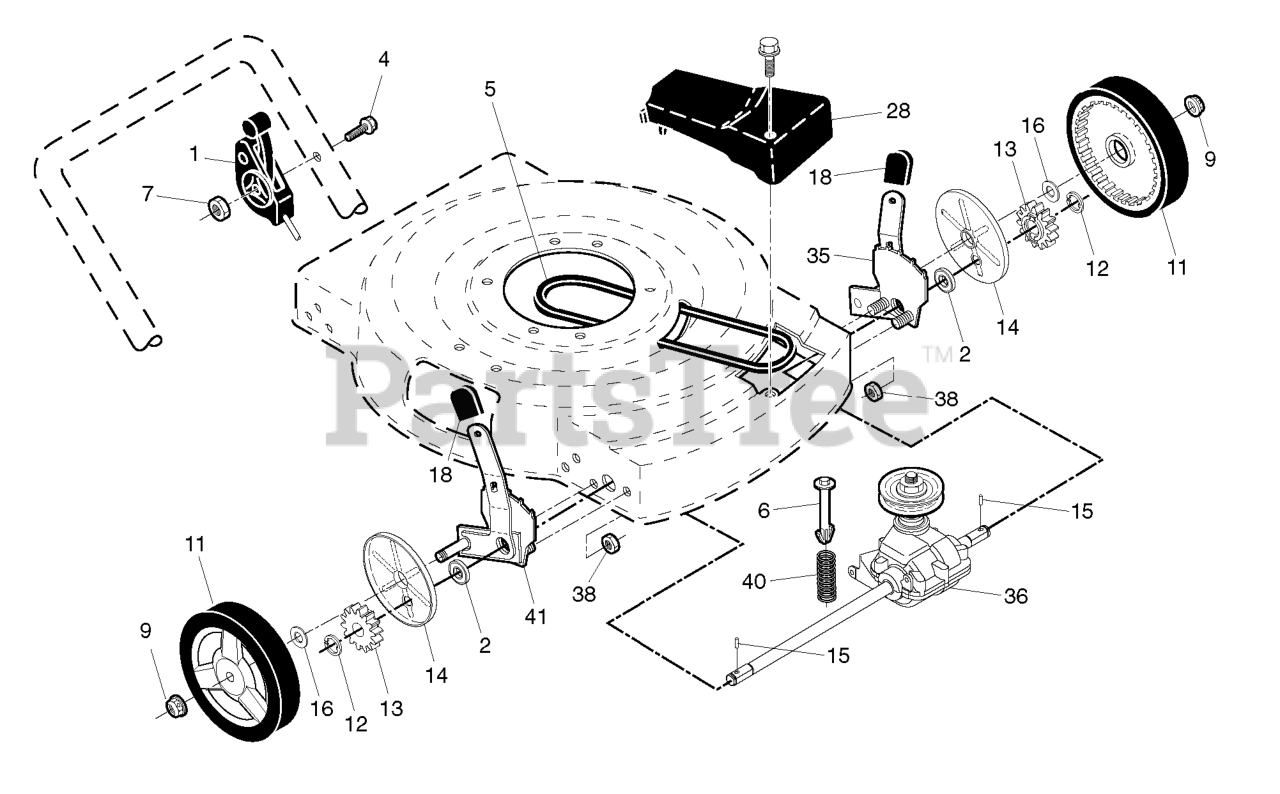

DRIVE Parts Diagram

  • Title

14

Husqvarna 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$6.99

$

In Stock, only 3 left!

0

38

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

9

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

28

Husqvarna 532432669

NEEDS DESCRIPTION

Note: Includes Mounting Screw & Pushnut

$

$

Currently unavailable

18

Husqvarna 532132800

SELECTOR KNOB
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

5

Husqvarna 532146527

BELT THERM .32
(Superseded to 532157769)

$17.99

$

In Stock, only 2 left!

0

4

Husqvarna 532158755

SCREW.PAN.HEAD

$

$

Not available

13

Husqvarna 532403849

PINION.14.TEETH.FGD

$6.99

$

In Stock, Qty 8

0

35

Husqvarna 532438485

KIT ADJUSTER ASM.438151.

Note: LH

$44.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532191039

BEARING
(Superseded to 587070202)

$14.99

$

In Stock, Qty 15

0

41

Husqvarna 532438486

KIT ADJUSTER ASM.438148

Note: RH

$

$

Not available

12

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532411081

WHEEL.8X1.75.H3SPK.RAD3.GY.BU3
(Superseded to 532401274)

$34.99

$

In Stock, only 1 left!

0

16

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

36

Husqvarna 532415226

TRANSMISSION.22.FGD/W/PULLEY

$84.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532150495

SPRING RETAINER

$7.49

$

In Stock, only 1 left!

0

1

Husqvarna 532184588

DRIVE CONTROL 59.8 FWGD

$53.99

$

In Stock, only 1 left!

0

15

Husqvarna 532404845

PAWL, DRIVE

$5.99

$

In Stock, only 3 left!

0

40

Husqvarna 532137090

SPRING.EXTENSION

$6.49

$

In Stock, only 1 left!

0
