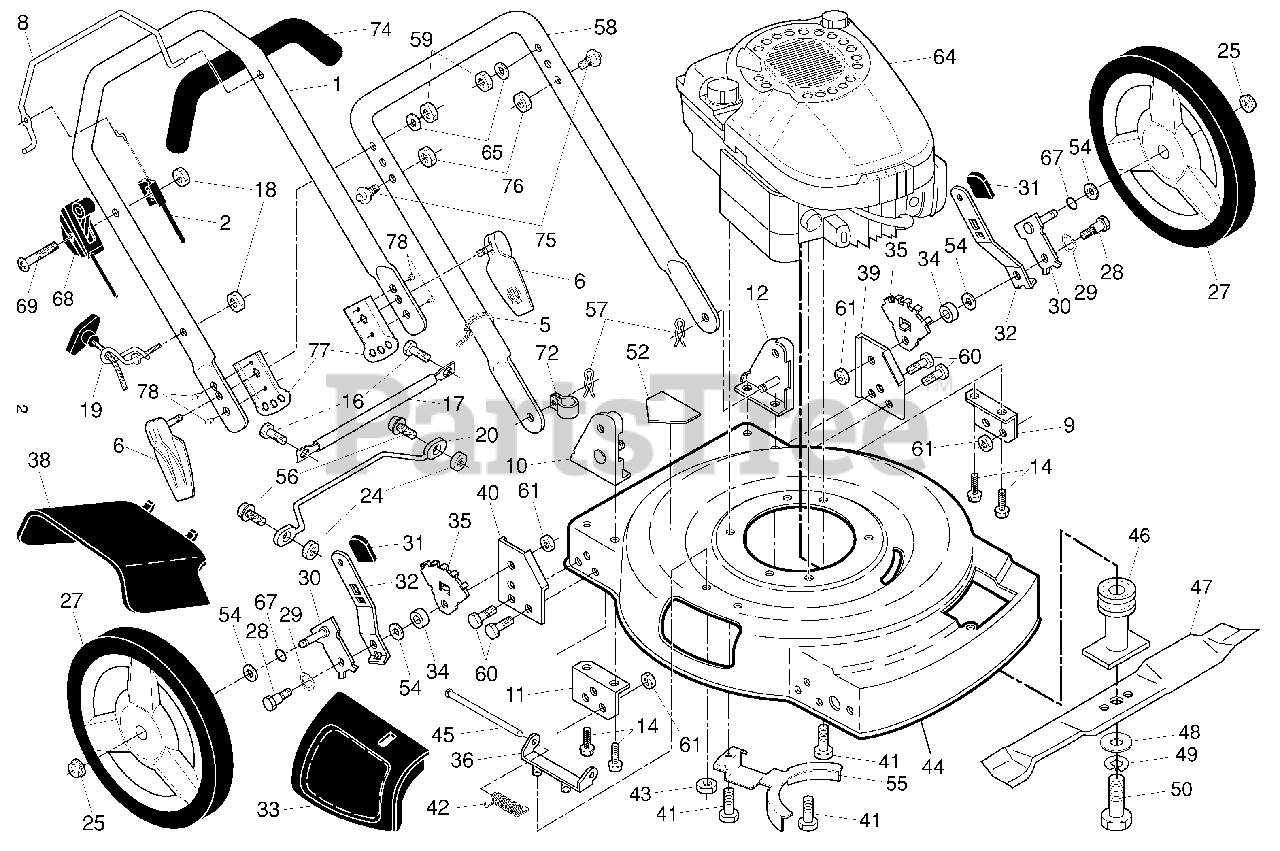

J 55 SL (961210018-02) - Husqvarna Walk-Behind Mower (2009-08) Frame Parts Diagram

Walk-Behind Mower

Frame Parts Diagram

  • Title

1

Husqvarna 532420835

Upper Handle

$

$

Not available

2

Husqvarna 532149293

Engine Zone Control Cable

$24.99

$

In Stock, only 1 left!

0

5

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532430679

Handle Knob

$15.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532190527

Control Bar

$14.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532195800

Support Bracket, Handle, LH
(Superseded to 583686402)

$40.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532424445

Handle Bracket Assembly, RH

$

$

Not available

11

Husqvarna 532195799

Support Bracket, Handle, RH

$

$

Not available

12

Husqvarna 532424446

Handle Bracket Assembly, LH

$

$

Not available

14

Husqvarna 532149741

Screw, Thread Cutting 5/16-18 x 3/4
(Superseded to 532171877)

$7.49

$

In Stock, Qty 5

0

16

Husqvarna 817060410

Screw, Tapping, Hex Head 1/4-20 x 1/2

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532177141

Rod, Support
(Superseded to 532165175)

$10.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532132004

Locknut, Keps
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

19

Husqvarna 532194788

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

20

Husqvarna 532154147

Foot Guard

$

$

Not available

24

Husqvarna 532069180

Nut, Hex

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532409149

Locknut, Hex 3/18-16

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 532410815

Wheel & Tire Assembly, Rear
(Superseded to 585911001)

$26.99

$

In Stock, Qty 6

0

28

Husqvarna 532174719

Shoulder Bolt

$9.49

$

In Stock, only 1 left!

0

29

Husqvarna 532401630

Curved Washer

$4.99

$

In Stock, only 3 left!

0

30

Husqvarna 532406582

Axle Arm Assembly

$

$

Not available

31

Husqvarna 532132800

Knob, Selector
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

32

Husqvarna 532406428

Spring, Selector
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

33

Husqvarna 532196010

Discharge Guard

$14.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532401629

Spacer

$6.49

$

In Stock, only 4 left!

0

35

Husqvarna 532410807

Bracket, Wheel Adjuster

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532154132

Bracket, Housing

$6.99

$

In Stock, only 1 left!

0

38

Husqvarna 532196011

Deflector, Discharge

$13.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532419362

Support Bracket, LH

$5.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532419361

Support Bracket, RH

$5.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532150406

Screw, Hex Head, Threaded, Rolled 3/8-16 x 1-1/8

$7.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532152124

Spring, Torsion

$7.49

$

In Stock, only 4 left!

0

43

Husqvarna 873800400

Locknut, Hex
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

44

Husqvarna 532400660

Kit, Mower Housing

Note: (Includes Key Number 52)

$

$

Not available

45

Husqvarna 532147286

Rod, Hinge

$8.99

$

In Stock, Qty 9

0

46

Husqvarna 532421176

Blade Adapter / Pulley

$28.99

$

In Stock, only 1 left!

0

47

Husqvarna 532199379

Blade, 22"

$

$

Not available

48

Husqvarna 532851074

Washer, Hardened

$4.99

$

In Stock, only 4 left!

0

49

Husqvarna 532850263

Washer, Lock, Helical
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

50

Husqvarna 532851084

Screw, Hex Head 3/8-24 x 1-3/8 (Grade 8)
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

52

Husqvarna 532182166

Decal, Danger
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

54

Husqvarna 532088348

Washer, Flat 3/8

$7.49

$

In Stock, Qty 6

0

55

Husqvarna 532429001

Belt Keeper

$7.49

$

In Stock, only 3 left!

0

56

Husqvarna 532085825

Screw, Hex Washer Head #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

57

Husqvarna 532051793

Hairpin Cotter

$7.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532419363

Lower Handle

$24.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532400413

Locknut, Hex 1/4-20

$

$

Not available

60

Husqvarna 874760612

Bolt, Hex Head 3/8-16 x 3/4

$4.99

$

In Stock, only 1 left!

0

61

Husqvarna 873930600

Locknut, Hex
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

64

Engine, Briggs & Stratton, Model Number 124T02- 1254-EA (Order parts from engine manufacturer)

$

$

Not available

65

Husqvarna 532155415

Washer, Flat

$5.99

$

In Stock, only 2 left!

0

67

Husqvarna 532197480

O-Ring

$7.49

$

Usually ships in 3-10 days

0

68

Husqvarna 532420611

Control Throttle

$

$

Not available

69

Husqvarna 532183365

Screw Hex 1/4 x 20 x 2.17

$6.49

$

Usually ships in 3-10 days

0

72

Husqvarna 532197991

Clip, Cable

$7.49

$

In Stock, Qty 6

0

74

Husqvarna 532164265

Handle Grip
(Superseded to 585161003)

$

$

Not available

75

Husqvarna 532199255

Stud

$4.99

$

Usually ships in 3-10 days

0

76

Husqvarna 532751153

Nut, Hex

$4.99

$

In Stock, only 1 left!

0

77

Husqvarna 532413534

Bracket, Quick-Release

$10.99

$

Usually ships in 3-10 days

0

78

Husqvarna 532199697

Rivet

$4.99

$

Usually ships in 3-10 days

0

Husqvarna 532182134

Warning Decal
(Superseded to 583119801)

Note: (not shown)

$14.99

$

Usually ships in 3-10 days

0

Husqvarna 532419073

Operator's Manual, European

$

$

Currently unavailable

Husqvarna 532419074

Operator's Manual, Scandinavian

$

$

Currently unavailable

Husqvarna 532419075

Operator's Manual, East Bloc

$

$

Currently unavailable

Husqvarna 532419076

Operator's Manual, Baltic

$

$

Currently unavailable
