J 55 SL (961210018-02) - Husqvarna Walk-Behind Mower (2009-08) Drive Parts Diagram

Walk-Behind Mower

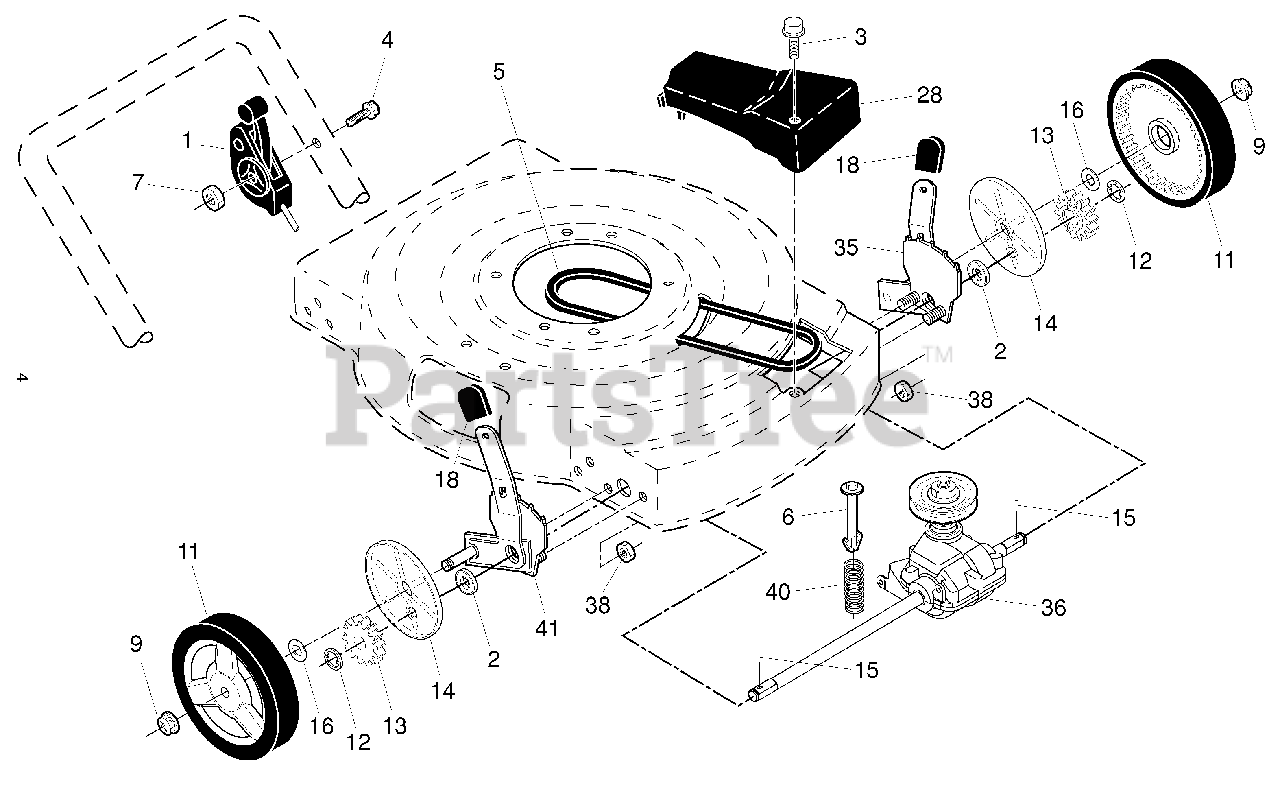

Drive Parts Diagram

  • Title

1

Husqvarna 532184588

Drive Control Assembly

Note: (Includes Cable)

$53.99

$

In Stock, only 1 left!

0

2

Husqvarna 532191039

Bearing, Wheel Adjuster
(Superseded to 587070202)

$14.99

$

In Stock, Qty 15

0

3

Husqvarna 532143603

Screw, Tapping, Pan Head #10-24 x 2-3/4

$

$

Not available

4

Husqvarna 532158755

Screw, Machine, Pan Head 1/4-20 x 2-3/16

$

$

Not available

5

Husqvarna 532146527

V-Belt
(Superseded to 532157769)

$17.99

$

In Stock, only 2 left!

0

6

Husqvarna 532150495

Bolt, Hex Head 1/4-20 x 2

$7.49

$

In Stock, only 1 left!

0

7

Husqvarna 532191730

Nut, Hex

$7.49

$

In Stock, Qty 5

0

9

Husqvarna 532409148

Locknut, Hex
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 532411081

Wheel & Tire Assembly
(Superseded to 532401274)

$34.99

$

In Stock, only 1 left!

0

12

Husqvarna 812000058

E-Ring

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532403849

Pinion

$6.99

$

In Stock, Qty 8

0

14

Husqvarna 532189403

Dust Cover
(Superseded to 581840401)

$6.99

$

In Stock, only 3 left!

0

15

Husqvarna 532404845

Pawl, Drive

$5.99

$

In Stock, only 3 left!

0

16

Husqvarna 532067725

Washer

$7.49

$

In Stock, Qty 20+

0

18

Husqvarna 532132800

Knob, Selector
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

28

Husqvarna 532196008

Drive Cover

$

$

Currently unavailable

35

Husqvarna 532424201

Kit, Wheel Adjuster, LH
(Superseded to 532438485)

Note: (Includes Knob and Bearing)

$44.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532415226

Gear Case Assembly, Complete

$84.99

$

Usually ships in 3-10 days

0

38

Husqvarna 873800400

Locknut, Hex
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

40

Husqvarna 532137090

Spring

$6.49

$

In Stock, only 1 left!

0

41

Husqvarna 532424200

Kit, Wheel Adjuster, RH
(Superseded to 532438486)

Note: (Includes Knob and Bearing)

$

$

Not available
