J 55 SL (961210018-01) - Husqvarna Walk-Behind Mower (2008-11) DRIVE Parts Diagram

Walk-Behind Mower

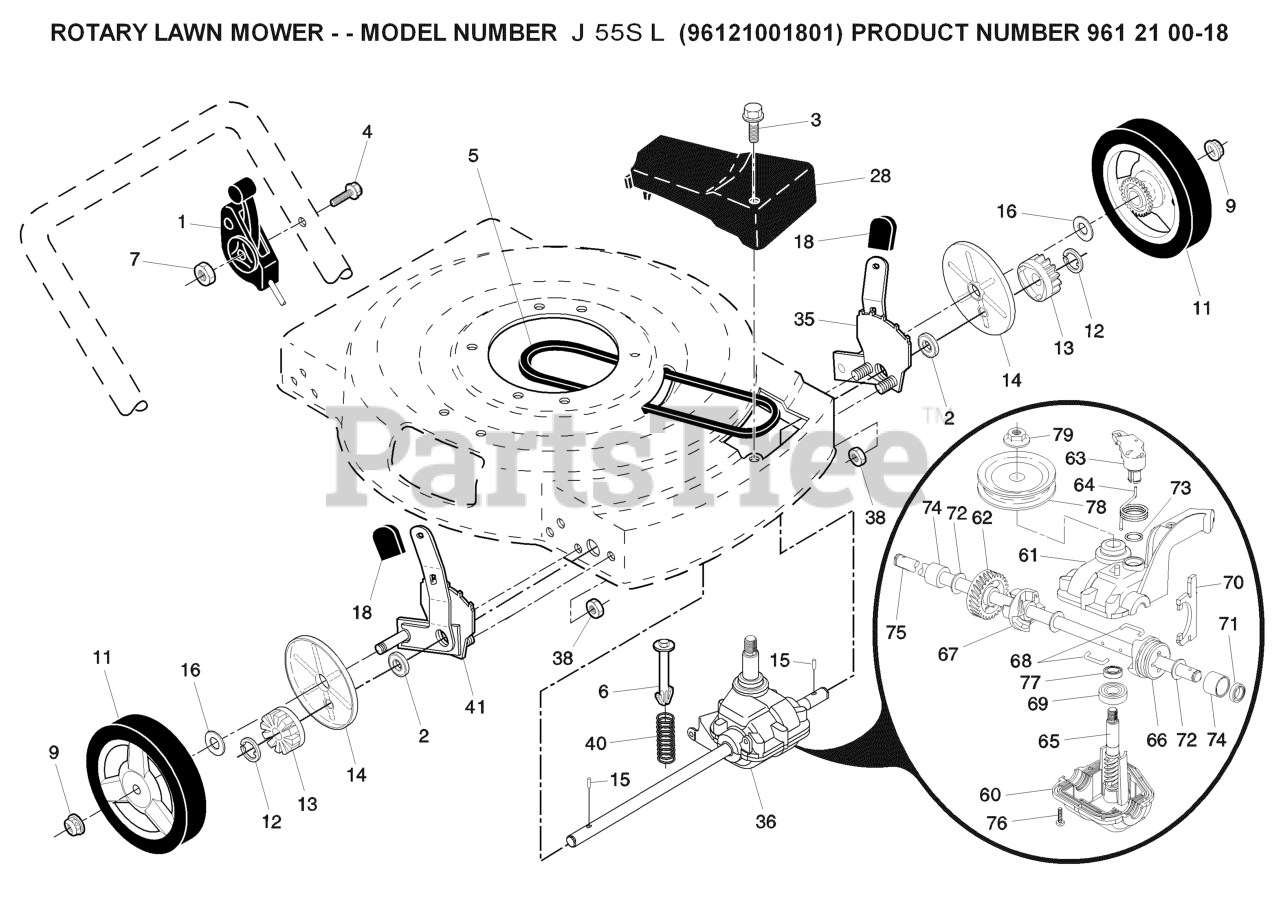

DRIVE Parts Diagram

  • Title

41

Husqvarna 532408861

WHEEL ADJ KIT RH
(Superseded to 532438486)

$44.99

$

In Stock, only 1 left!

0

18

Husqvarna 532132800

SELECTOR KNOB
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

78

Husqvarna 532416987

FLANGE.PULLEY.33027(GENERAL.TR

$21.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532183505

WIRE, FORMED (15966)

$6.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532183498

UPPER CASE

$15.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532196008

Drive Cover

$

$

Currently unavailable

2

Husqvarna 532191039

BEARING
(Superseded to 587070202)

$14.99

$

In Stock, Qty 15

0

12

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532183503

DOG, MOVABLE (11032)

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532158755

SCREW.PAN.HEAD

$

$

Not available

7

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

69

Husqvarna 532183506

BEARING

$8.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532403849

PINION.14.TEETH.FGD

$6.99

$

In Stock, Qty 8

0

11

Husqvarna 532411081

WHEEL.8X1.75.H3SPK.RAD3.GY.BU3
(Superseded to 532401274)

$34.99

$

In Stock, Qty 7

0

1

Husqvarna 532184588

DRIVE CONTROL 59.8 FWGD

$53.99

$

In Stock, only 1 left!

0

35

Husqvarna 532408862

WHEEL ADJ KIT LH
(Superseded to 532438485)

$44.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532416986

NUT.WITH.FLAT.BROKE

$14.99

$

Usually ships in 3-10 days

0

76

Husqvarna 532183513

SCREW

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532143603

Screw, Tapping, Pan Head #10-24 x 2-3/4

$

$

Not available

5

Husqvarna 532146527

BELT THERM .32
(Superseded to 532157769)

$17.99

$

In Stock, only 1 left!

0

15

Husqvarna 532404845

PAWL, DRIVE

$5.99

$

In Stock, Qty 6

0

36

Husqvarna 532415226

TRANSMISSION.22.FGD/W/PULLEY

$84.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532416988

SHAFT.INPUT.WORM.GEAR(13155)

$37.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532196561

SHAFT OUTPUT (12260 NOW 12663)

$54.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532183508

SEAL.OUTPUT.SHAFT

$11.99

$

In Stock, only 1 left!

0

40

Husqvarna 532137090

SPRING.EXTENSION

$6.49

$

In Stock, only 1 left!

0

64

Husqvarna 532183501

SPRING, RETURN

$6.49

$

Usually ships in 3-10 days

0

70

Husqvarna 532183507

FORK, SHIFT

$9.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532183511

BUSHING

$5.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532183514

SEAL INPUT SHAFT

$7.99

$

In Stock, only 2 left!

0

16

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

6

Husqvarna 532150495

SPRING RETAINER

$7.49

$

In Stock, only 1 left!

0

9

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

73

Husqvarna 532183510

SEAL, CASE O-RING

$6.49

$

Usually ships in 3-10 days

0

62

Husqvarna 532183499

GEAR.27.TEETH.WALK.MOWER

$17.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$6.99

$

In Stock, Qty 5

0

63

Husqvarna 532183500

LEVER, CLUTCH

$6.49

$

Usually ships in 3-10 days

0

38

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

67

Husqvarna 532183504

DOG, FIXED GT11031

$4.99

$

Usually ships in 3-10 days

0

72

Husqvarna 532183509

WASHER

$6.49

$

Usually ships in 3-10 days

0

60

Husqvarna 532183497

LOWER CASE

$15.99

$

In Stock, only 1 left!

0
