J 55 S (961210007) - Husqvarna Walk-Behind Mower (2006-01) DRIVE Parts Diagram

Walk-Behind Mower

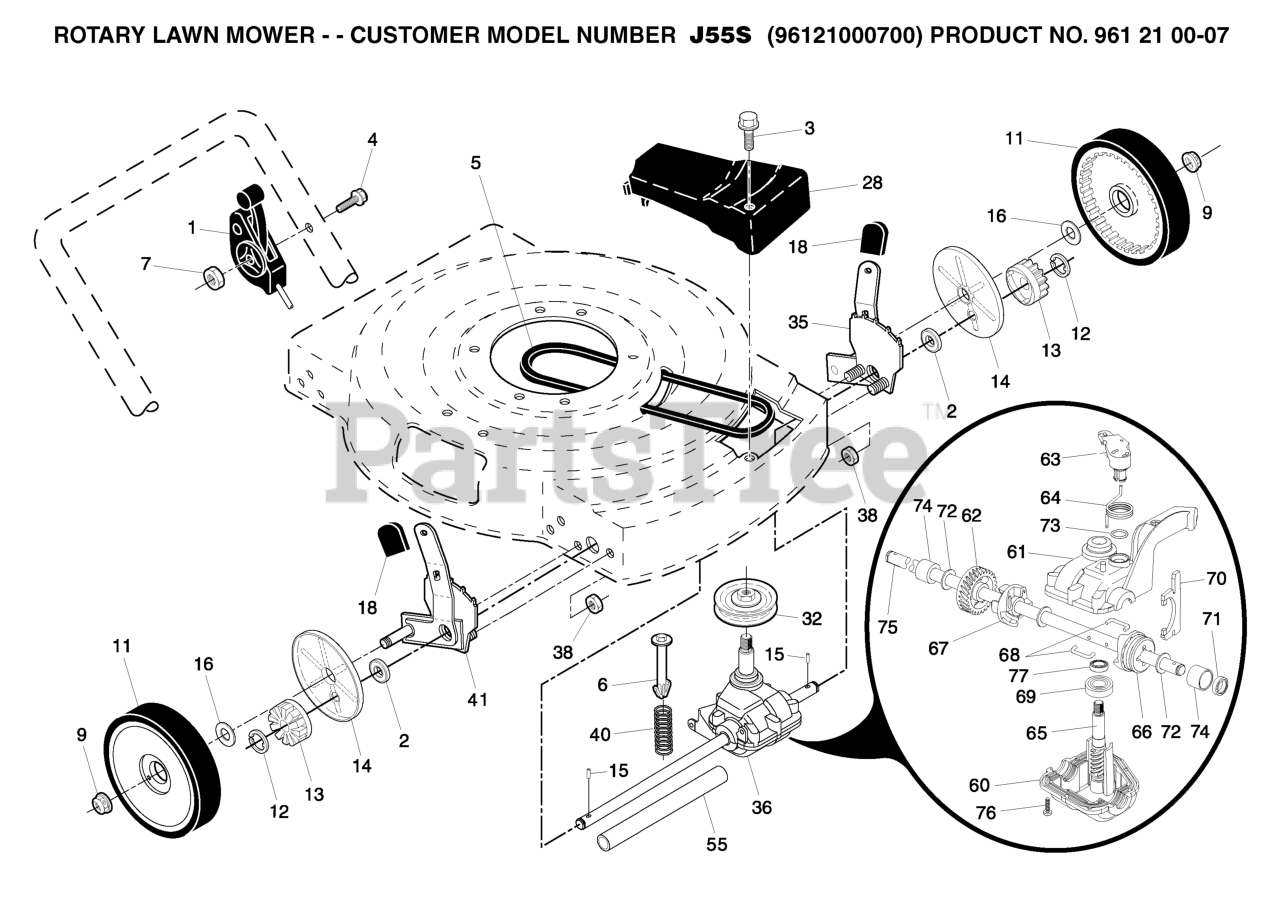

DRIVE Parts Diagram

  • Title

16

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

74

Husqvarna 532183511

BUSHING

$5.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532183507

FORK, SHIFT

$9.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532197999

NEEDS DESCRIPTION

$

$

Currently unavailable

7

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

68

Husqvarna 532183505

WIRE, FORMED (15966)

$6.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532183508

SEAL.OUTPUT.SHAFT

$11.99

$

In Stock, only 1 left!

0

75

Husqvarna 532196561

SHAFT OUTPUT (12260 NOW 12663)

$54.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532146527

BELT THERM .32
(Superseded to 532157769)

$17.99

$

In Stock, only 2 left!

0

72

Husqvarna 532183509

WASHER

$6.49

$

Usually ships in 3-10 days

0

61

Husqvarna 532183498

UPPER CASE

Note: * USE DOW CORNING #709 TO RESEAL GEAR CASE HALVES.

$15.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532143603

Screw, Tapping, Pan Head #10-24 x 2-3/4

$

$

Not available

63

Husqvarna 532183500

LEVER, CLUTCH

$6.49

$

Usually ships in 3-10 days

0

67

Husqvarna 532183504

DOG, FIXED GT11031

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532191019

RP BEARING
(Superseded to 587070202)

$14.99

$

In Stock, Qty 15

0

76

Husqvarna 532183513

SCREW

$4.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532183501

SPRING, RETURN

$6.49

$

Usually ships in 3-10 days

0

62

Husqvarna 532183499

GEAR.27.TEETH.WALK.MOWER

$17.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532183502

SHAFT INPUT (13041)

$30.99

$

In Stock, only 1 left!

0

73

Husqvarna 532183510

SEAL, CASE O-RING

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532196008

Drive Cover

$

$

Currently unavailable

77

Husqvarna 532183514

SEAL INPUT SHAFT

$7.99

$

In Stock, only 2 left!

0

4

Husqvarna 532158755

SCREW.PAN.HEAD

$

$

Not available

69

Husqvarna 532183506

BEARING

$8.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532402567

WHEEL.8X1.75.MAG2.RAD3.GRY
(Superseded to 583719501)

$28.99

$

In Stock, Qty 6

0

40

Husqvarna 532137090

SPRING.EXTENSION

$6.49

$

In Stock, only 1 left!

0

14

Husqvarna 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$6.99

$

In Stock, only 3 left!

0

38

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

13

Husqvarna 532750003

PINION
(Superseded to 532403849)

$6.99

$

In Stock, Qty 8

0

35

Husqvarna 532198001

NEEDS DESCRIPTION

$

$

Currently unavailable

32

Husqvarna 532194126

DRIVEN PULLEY

$

$

Not available

1

Husqvarna 532184588

DRIVE CONTROL 59.8 FWGD

$53.99

$

In Stock, only 1 left!

0

55

Husqvarna 532086012

DRV SHAFT TUBE PM

$

$

Not available

9

Husqvarna 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 532132800

SELECTOR KNOB
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

6

Husqvarna 532150495

SPRING RETAINER

$7.49

$

In Stock, only 1 left!

0

15

Husqvarna 532191017

PAWL.DRIVE
(Superseded to 532404845)

$5.99

$

In Stock, only 3 left!

0

60

Husqvarna 532183497

LOWER CASE

Note: * USE DOW CORNING #709 TO RESEAL GEAR CASE HALVES.

$15.99

$

In Stock, only 1 left!

0

36

Husqvarna 532194936

NEEDS DESCRIPTION

$

$

Not available

66

Husqvarna 532183503

DOG, MOVABLE (11032)

$6.49

$

Usually ships in 3-10 days

0
