J 55 S (961210007-08) - Husqvarna Walk-Behind Mower (2010-10) FRAME & ENGINE Parts Diagram

Walk-Behind Mower

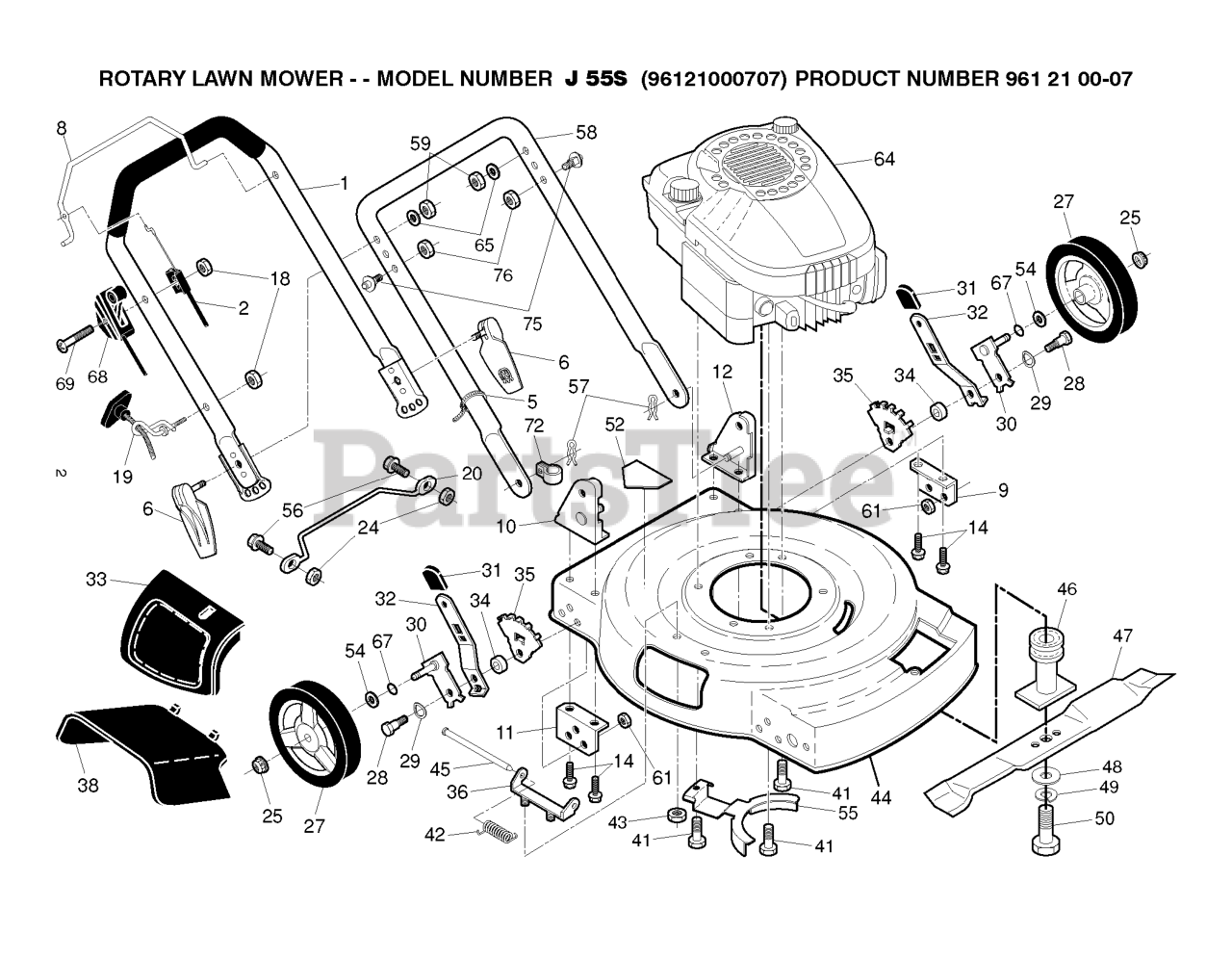

FRAME & ENGINE Parts Diagram

  • Title

20

Husqvarna 532431995

FOOTGUARD.WIREFORM.CE

$

$

Not available

44

Husqvarna 532400660

Kit, Mower Housing

$

$

Not available

47

Husqvarna 532199379

Blade, 22"

$

$

Not available

18

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

65

Husqvarna 532155415

WASHER.20X8.5

$4.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

52

Husqvarna 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

56

Husqvarna 871191012

SCREW

$

$

Not available

Husqvarna 532182134

DECAL.INTRN.SELF-PROPELLED.02
(Superseded to 583119801)

Note: NOT SHOWN

$14.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532183365

SCREW

$6.49

$

Usually ships in 3-10 days

0

54

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, Qty 13

0

45

Husqvarna 532147286

ROD.HINGE.COMBI-C

$9.49

$

In Stock, Qty 8

0

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

55

Husqvarna 532429001

BRACKET.ENG/BELTKEEPER.BZP

$7.49

$

In Stock, only 3 left!

0

8

Husqvarna 532190527

BAIL.COMF.FWGD.668.ORANGE.WALK

$

$

Not available

50

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532401629

SPACER.HEIGHT.ADJUSTER

$6.49

$

In Stock, Qty 20+

0

36

Husqvarna 532154132

BRACKET.ASM.HOUSING.EZ.MUL

$10.99

$

Usually ships in 3-10 days

0

61

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532400413

Locknut, Hex 1/4-20

$

$

Not available

75

Husqvarna 532199255

STUD.QUICK.ADJUST

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

In Stock, Qty 12

0

5

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$18.99

$

In Stock, only 4 left!

0

33

Husqvarna 532196010

DOOR.MULCH.22.EZ.MULCH.GREY

$

$

Not available

12

Husqvarna 532424446

Handle Bracket Assembly, LH

Note: LH

$

$

Not available

43

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

25

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 532401630

WASHER.CURVED.CYLINDRICAL

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 532152124

TORSION SPRING

$7.49

$

In Stock, only 1 left!

0

6

Husqvarna 532430679

QUICK.ASM.RELEASE.BLACK

$20.99

$

Usually ships in 3-10 days

0

64

000000000

Note: B&S 124T02-1254-EA

$

$

Not available

72

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 10

0

30

Husqvarna 532407871

AXLE ARM ASSY.
(Superseded to 532401179)

$7.49

$

In Stock, Qty 11

0

2

Husqvarna 532149293

ENGINE ZONE CONTROL CABLE

$24.99

$

In Stock, only 1 left!

0

28

Husqvarna 532174719

BOLT SHOULDER 3/8 -16X1

$10.99

$

In Stock, Qty 10

0

Husqvarna 532182191

DECAL.INTERN.4.SYMBOL.CURVED

Note: NOT SHOWN

$

$

Not available

27

Husqvarna 532410831

WHEEL & TIRES ASSY, FRONT
(Superseded to 532401273)

$37.99

$

In Stock, Qty 13

0

57

Husqvarna 532051793

HAIRPIN COTTER

$

$

Not available

9

Husqvarna 532195800

GUARD.SLKSCR.BELT.
(Superseded to 583686402)

Note: LH

$40.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532424445

Handle Bracket Assembly, RH

Note: RH

$

$

Not available

76

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 532410807

BRACKET.ADJ.WHEEL.5POS.ADS

$4.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532420611

Control Throttle

$

$

Not available

32

Husqvarna 532410595

SPRING.SEL.EXT.21.DOMED.12/14
(Superseded to 532401624)

$4.99

$

In Stock, only 1 left!

0

46

Husqvarna 532421176

ADAPTER.BLADE/PULLEY.25M

$31.99

$

In Stock, Qty 5

0

11

Husqvarna 532195799

Support Bracket, Handle, RH

Note: RH

$

$

Not available

1

Husqvarna 532420835

Upper Handle

Note: Includes foam grip

$

$

Not available

48

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 532196011

DEFLECTOR.GUARD.22..EZ.MULCH

$

$

Not available

14

Husqvarna 532149741

SCREW.5/16-18X3/4
(Superseded to 532171877)

$7.49

$

In Stock, Qty 18

0

31

Husqvarna 532132800

SELECTOR KNOB
(Superseded to 532701037)

$5.99

$

In Stock, Qty 20+

0

24

Husqvarna 532069180

LOCKNUT

$6.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532419363

HANDLE LOWER EZ 2POS GRAY

$24.99

$

Usually ships in 3-10 days

0
