J 55 S (954170218) - Husqvarna Walk-Behind Mower (2005-02) FRAME & ENGINE Parts Diagram

Walk-Behind Mower

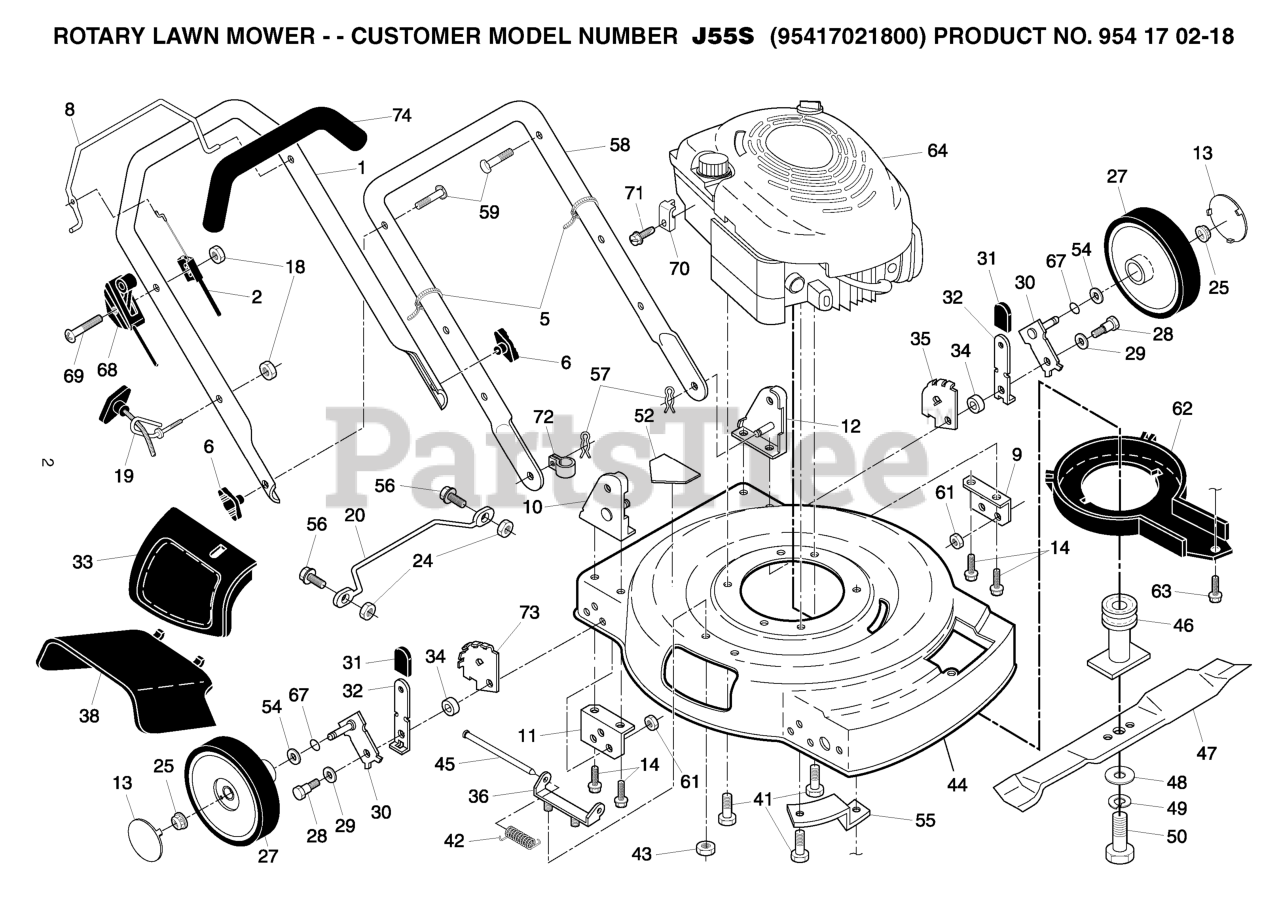

FRAME & ENGINE Parts Diagram

  • Title

54

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, Qty 6

0

46

Husqvarna 532189179

BLADE ADAPTOR / PULLEY
(Superseded to 532421176)

$28.99

$

In Stock, only 1 left!

0

33

Husqvarna 532196010

DOOR.MULCH.22.EZ.MULCH.GREY

$14.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532151254

AXLE ARM
(Superseded to 532145937)

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

8

Husqvarna 532190527

BAIL.COMF.FWGD.668.ORANGE.WALK

$14.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532750550

WHEEL.8X2.PR.LP.RAD.GREY

$34.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532085825

REPL BY 817 02 10-08
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

1

Husqvarna 532169369

HANDLE.UP.DLX.COMF.W/GRIP.GREY

$54.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532140058

BRACKET WHL ADJ

$6.49

$

Usually ships in 3-10 days

0

63

Husqvarna 532192325

SCREW.HEX.WSH

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532152124

TORSION SPRING

$7.49

$

In Stock, only 3 left!

0

50

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 532170975

HANDLE BRACKET ASM. RH
(Superseded to 532170345)

$7.49

$

In Stock, only 1 left!

0

71

Husqvarna 532083816

SCREW.HEX.HEAD.WASHER.10-16

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532132800

SELECTOR KNOB
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

47

Husqvarna 532192682

BLADE.22.MULCH.SD/EZ
(Superseded to 532406713)

$26.99

$

In Stock, Qty 11

0

24

Husqvarna 532069180

LOCKNUT

$6.49

$

Usually ships in 3-10 days

0

73

Husqvarna 532140059

BRACKET WHL ADJ. NLA

$

$

Not available

28

Husqvarna 532142748

BOLT
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

67

Husqvarna 532188152

O-RING
(Superseded to 532197480)

$7.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532154132

BRACKET.ASM.HOUSING.EZ.MUL

$6.99

$

In Stock, only 1 left!

0

62

Husqvarna 532188784

DEBRIS.SHIELD.21:.FGD

$9.99

$

In Stock, only 1 left!

0

69

Husqvarna 532183365

SCREW

$6.49

$

Usually ships in 3-10 days

0

34

Husqvarna 532146630

RP SPACER HT ADJ
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

38

Husqvarna 532196011

DEFLECTOR.GUARD.22..EZ.MULCH

$13.99

$

Usually ships in 3-10 days

0

- -

Husqvarna 532194061

NEEDS DESCRIPTION

$

$

Currently unavailable

29

Husqvarna 532062335

WASHER.BELLEVILLE (3 2 LB)

$9.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 19

0

59

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 4 left!

0

20

Husqvarna 532154147

PROTECTOR

$

$

Not available

2

Husqvarna 532149293

ENGINE ZONE CONTROL CABLE

$24.99

$

In Stock, only 1 left!

0

45

Husqvarna 532147286

ROD.HINGE.COMBI-C

$8.99

$

In Stock, Qty 9

0

13

Husqvarna 532157008

HUBCAP.8".GREY

$

$

Not available

5

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 532179585

ROPE, GUIDE
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

6

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$9.49

$

In Stock, Qty 18

0

32

Husqvarna 532125259

SPRING

$

$

Not available

74

Husqvarna 532164265

GRIP.HANDLE.FOAM
(Superseded to 585161003)

$

$

Not available

12

Husqvarna 532170977

HANDLE BRACKET ASM. LH
(Superseded to 532170346)

$7.49

$

In Stock, only 1 left!

0

- -

Husqvarna 532182134

DECAL.INTRN.SELF-PROPELLED.02
(Superseded to 583119801)

$14.99

$

Usually ships in 3-10 days

0

43

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

- -

Husqvarna 532194060

NEEDS DESCRIPTION

$

$

Currently unavailable

9

Husqvarna 532195800

GUARD.SLKSCR.BELT.
(Superseded to 583686402)

$40.99

$

Usually ships in 3-10 days

0

72

Husqvarna 532192770

CLIP.CABLE.BLK
(Superseded to 532197991)

$7.49

$

In Stock, Qty 6

0

58

Husqvarna 532153406

HANDLE
(Superseded to 532151590)

$22.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532700417

THROTTLE CONTROL

$24.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532190939

BRACKET
(Superseded to 532188839)

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532149741

SCREW.5/16-18X3/4
(Superseded to 532171877)

$7.49

$

In Stock, Qty 5

0

57

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

44

Husqvarna 532194063

NEEDS DESCRIPTION

$

$

Currently unavailable

41

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

70

Husqvarna 532111190

CABLE CLAMP(ENGINE)

$

$

Not available

61

Husqvarna 532751592

LOCKNUT PM
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532195799

Support Bracket, Handle, RH

$

$

Not available

48

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 4 left!

0
