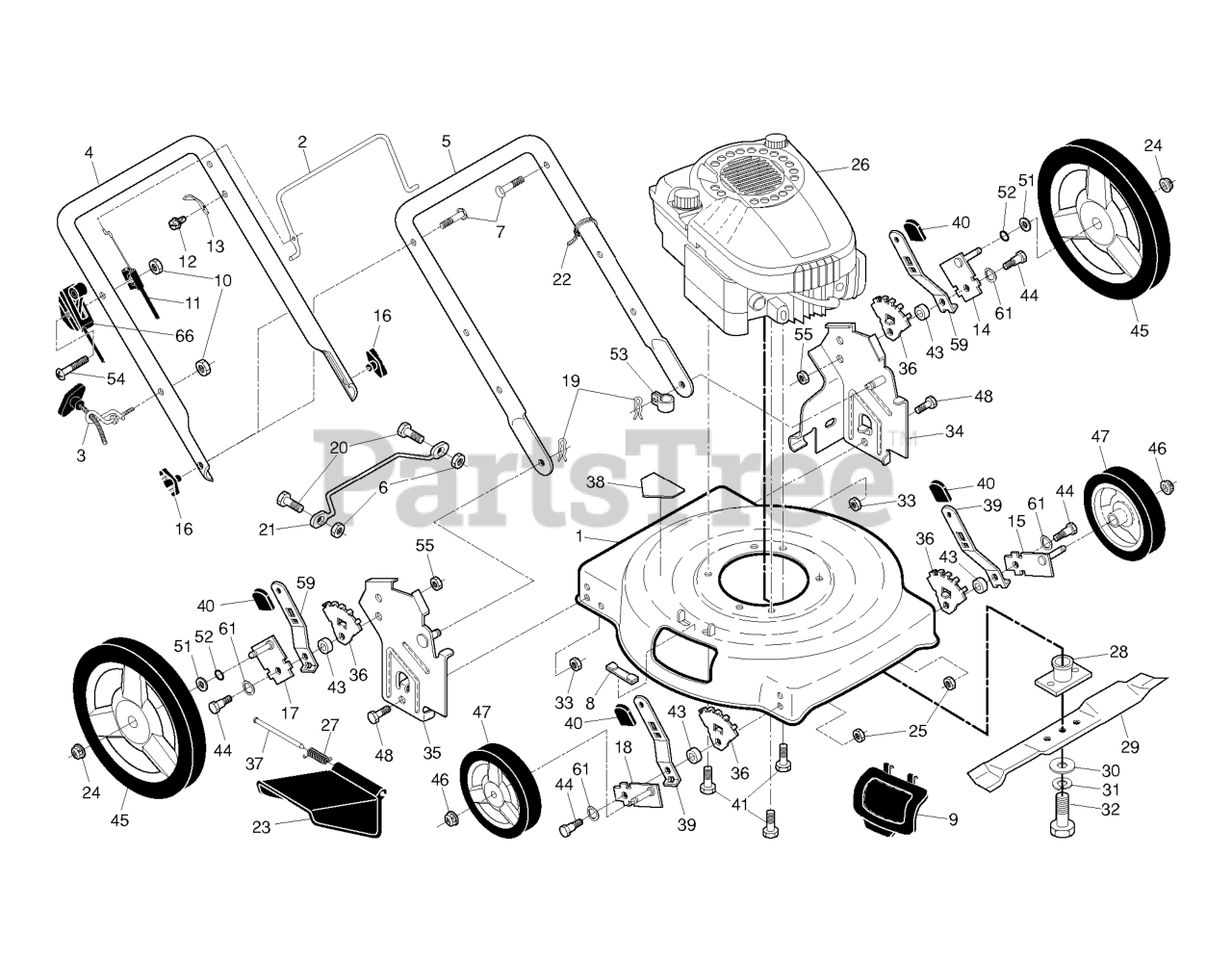

J 55 L (961110027-04) - Husqvarna Walk-Behind Mower (2011-06) PRODUCT COMPLETE Parts Diagram

Walk-Behind Mower

PRODUCT COMPLETE Parts Diagram

  • Title

36

Husqvarna 532410594

WHEEL ADJ BRACKET FRONT
(Superseded to 532407494)

$4.99

$

In Stock, only 2 left!

0

61

Husqvarna 532401630

WASHER.CURVED.CYLINDRICAL

$4.99

$

In Stock, only 3 left!

0

13

Husqvarna 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

43

Husqvarna 532401629

SPACER.HEIGHT.ADJUSTER

$6.49

$

In Stock, only 4 left!

0

16

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$9.49

$

In Stock, Qty 18

0

47

Husqvarna 532413183

WHEEL AND TIRE ASSY, REAR
(Superseded to 532401272)

$31.99

$

In Stock, only 4 left!

0

25

Husqvarna 532426589

NUT.FLANGE.HEX.5/16X18.BLACK
(Superseded to 585802801)

$5.99

$

In Stock, Qty 12

0

30

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 4 left!

0

52

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532069180

LOCKNUT

$6.49

$

Usually ships in 3-10 days

0

53

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0

35

Husqvarna 532419159

BRACKET.ASM.HANDLE.HW.RT.ORANG

Note: RH

$8.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532406690

AXLE ARM ASSY FRONT RH
(Superseded to 532401175)

Note: FRONT, RIGHT

$6.99

$

In Stock, only 3 left!

0

11

Husqvarna 532182837

Engine Zone Control Cable

$36.99

$

Usually ships in 3-10 days

0

26

000000000

Note: B&S 122T02-5158-H1 FOR SERVICE & PARTS 1-800-233-3723

$

$

Not available

3

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

19

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

39

Husqvarna 532406428

SELECTOR SPRING, FRONT
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

33

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 871191012

SCREW

$

$

Not available

1

Husqvarna 532419069

Lawn Mower Housing

$

$

Not available

31

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 19

0

12

Husqvarna 532750634

SCREW

$6.49

$

In Stock, Qty 5

0

27

Husqvarna 532408585

SPRING.HINGE

$18.99

$

In Stock, only 2 left!

0

10

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

8

Husqvarna 532161622

CLIP. CLOSEOUT

$14.99

$

In Stock, only 2 left!

0

29

Husqvarna 532199379

Blade, 22"

$

$

Not available

17

Husqvarna 532410601

AXLE ARM ASSY REAR RH
(Superseded to 532401177)

Note: REAR, RIGHT

$

$

Not available

32

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 532174110

HANDLE.LOWER.GREY
(Superseded to 532174291)

$

$

Not available

21

Husqvarna 532431995

FOOTGUARD.WIREFORM.CE

$

$

Not available

4

Husqvarna 532403129

Upper Handle

$

$

Currently unavailable

44

Husqvarna 532401638

SHOULDER BOLT 5/16-18
(Superseded to 596203801)

$4.99

$

In Stock, Qty 8

0

51

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, Qty 6

0

Husqvarna 532182191

DECAL.INTERN.4.SYMBOL.CURVED

Note: not shown

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 4 left!

0

15

Husqvarna 532406689

AXLE ARM ASSY FRONT LH
(Superseded to 532401174)

Note: FRONT, LEFT

$

$

Not available

24

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 532160833

HINGE ROD

$6.49

$

Usually ships in 3-10 days

0

55

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

23

Husqvarna 532160831

GUARD.DISCHARGE.22".

$

$

Not available

41

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532160830

PLATE.MULCHER.22.ECON.BLACK

$

$

Not available

46

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

45

Husqvarna 532413401

RP.WHEEL.12X1.75H 3 SPOKE.RAD
(Superseded to 585911002)

$22.99

$

In Stock, only 2 left!

0

34

Husqvarna 532419160

BRACKET.ASM.HANDLE.HW.

Note: LH

$8.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532183365

SCREW

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

66

Husqvarna 532420611

Control Throttle

$

$

Not available

59

Husqvarna 532410595

SPRING.SEL.EXT.21.DOMED.12/14
(Superseded to 532401624)

Note: REAR

$4.99

$

In Stock, only 1 left!

0

14

Husqvarna 532410600

AXLE ARM ASSY REAR LH
(Superseded to 532401176)

Note: REAR, LEFT

$6.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532418373

ADAPTER.BLADE.W/KEY.25MM.CE

$11.99

$

In Stock, Qty 20+

0

2

Husqvarna 532402949

BAIL.MZR.STD.ORANGE

$14.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532087877

KNOB

$6.49

$

In Stock, only 1 left!

0

48

Husqvarna 874760514

BOLT
(Superseded to 596322201)

$3.99

$

In Stock, only 2 left!

0
