J 55 L (961110027-02) - Husqvarna Walk-Behind Mower (2009-11) Product Complete Parts Diagram

Walk-Behind Mower

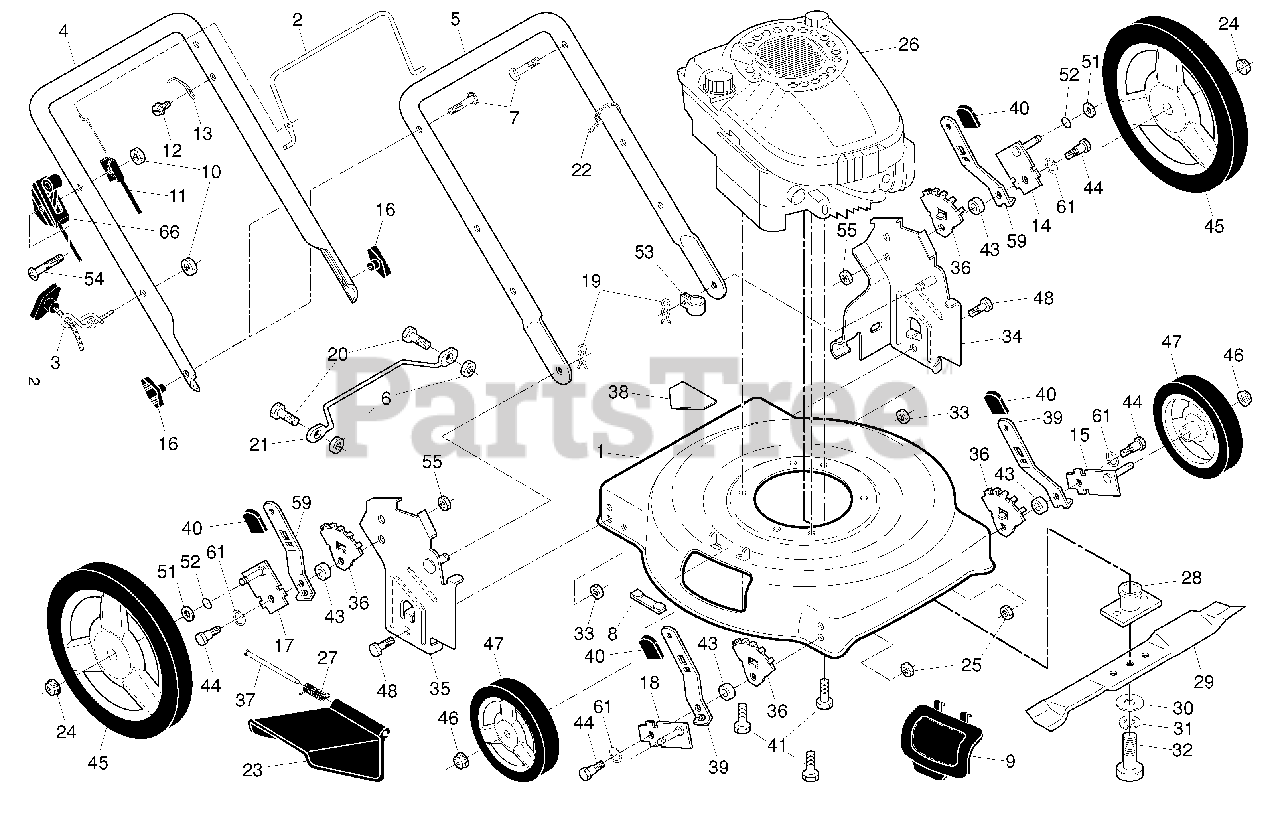

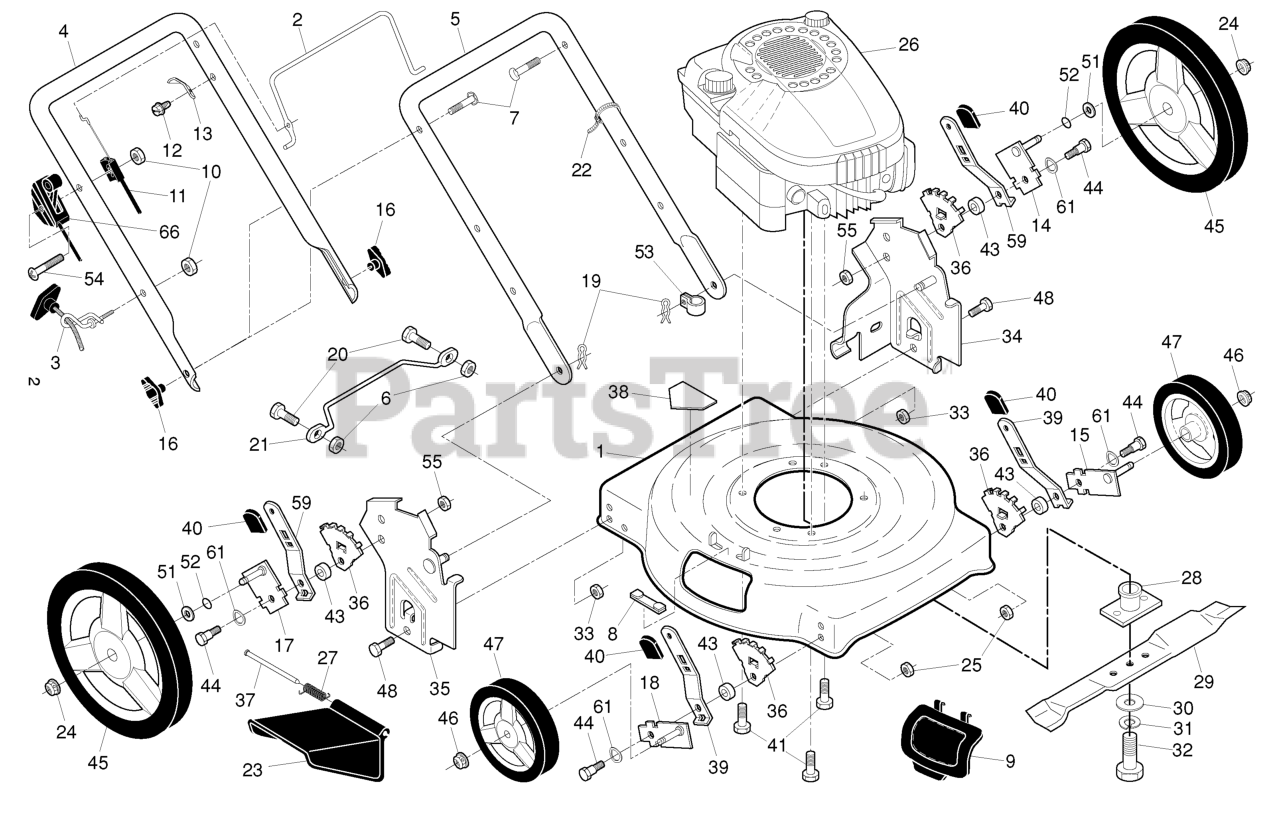

Product Complete Parts Diagram

  • Title

1

Husqvarna 532419069

Lawn Mower Housing

Note: (Includes Key Number 38)

$

$

Not available

2

Husqvarna 532195574

Control Bar
(Superseded to 532194177)

$

$

Not available

3

Husqvarna 532194788

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

4

Husqvarna 532403129

Upper Handle

$

$

Currently unavailable

5

Husqvarna 532174110

Lower Handle
(Superseded to 532174291)

$

$

Not available

6

Husqvarna 532069180

Locknut, Hex 1/4-20

$6.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532191574

Handle Bolt 5/16-18

$6.99

$

In Stock, only 2 left!

0

8

Husqvarna 532161622

Clip, Closeout

$14.99

$

In Stock, only 2 left!

0

9

Husqvarna 532160830

Plate, Mulcher

$

$

Not available

10

Husqvarna 532132004

Nut, Hex
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

11

Husqvarna 532182837

Engine Zone Control Cable

$36.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532750634

Hex Thread Rolling Screw #10-24 x1/2

$6.49

$

In Stock, Qty 5

0

13

Husqvarna 532125162

Up-Stop Bracket
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

14

Husqvarna 532410600

Axle Arm Assembly (Rear, LH)
(Superseded to 532401176)

$6.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532406689

Axle Arm Assembly (Front, LH)
(Superseded to 532401174)

$

$

Not available

16

Husqvarna 532191938

Handle Knob
(Superseded to 532189713)

$9.49

$

In Stock, Qty 13

0

17

Husqvarna 532410601

Axle Arm Assembly (Rear, RH)
(Superseded to 532401177)

$

$

Not available

18

Husqvarna 532406690

Axle Arm Assembly (Front, RH)
(Superseded to 532401175)

$6.99

$

In Stock, only 3 left!

0

19

Husqvarna 532051793

Hairpin Cotter

$7.49

$

Usually ships in 3-10 days

0

20

Husqvarna 532085825

Hex Head Screw 1/4
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

21

Husqvarna 532154147

Footguard

$

$

Not available

22

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532160831

Discharge Guard

$

$

Not available

24

Husqvarna 532409149

Washer

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532426589

Nut, Hex
(Superseded to 585802801)

$5.99

$

In Stock, only 2 left!

0

26

Engine, Briggs & Stratton, Model Number 122T02 (Order parts from engine manufacturer)

$

$

Not available

27

Husqvarna 532408585

Torsion Spring

$18.99

$

In Stock, only 2 left!

0

28

Husqvarna 532420097

Blade Adapter
(Superseded to 532418373)

$11.99

$

In Stock, Qty 20+

0

29

Husqvarna 532199379

22" Blade

$

$

Not available

30

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, only 2 left!

0

31

Husqvarna 532850263

Helical Lockwasher 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

32

Husqvarna 532851084

Hex Head Screw 3/8-24 x 1/4 Grade 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 873930500

Locknut 5/16-18

$7.49

$

In Stock, only 1 left!

0

34

Husqvarna 532419160

Wheel Bracket, Support, LH

$8.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532419159

Wheel Bracket, Support, RH

$8.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532410594

Wheel Bracket, Adjuster
(Superseded to 532407494)

$4.99

$

In Stock, only 2 left!

0

37

Husqvarna 532160833

Hinge Rod

$6.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532182166

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

39

Husqvarna 532406428

Selector Spring, Front
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

40

Husqvarna 532087877

Selector Knob

$6.49

$

In Stock, only 1 left!

0

41

Husqvarna 532150406

Hex Head Thread Rolling Screw 3/8-16 x 1

$7.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532401629

Spacer

$6.49

$

In Stock, only 4 left!

0

44

Husqvarna 532401638

Shoulder Bolt
(Superseded to 596203801)

$4.99

$

In Stock, Qty 8

0

45

Husqvarna 532413401

Wheel & Tire Assembly, Rear 12"
(Superseded to 585911002)

$22.99

$

In Stock, only 2 left!

0

46

Husqvarna 532409148

Locknut, Hex 5/16-18
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 532413183

Wheel & Tire Assembly, Front 8"
(Superseded to 532401272)

$31.99

$

In Stock, only 4 left!

0

48

Husqvarna 874760514

Hex Head Bolt 5/16-18 x 7/8
(Superseded to 596322201)

$3.99

$

In Stock, only 2 left!

0

51

Husqvarna 532197480

O-Ring

$7.49

$

Usually ships in 3-10 days

0

52

Husqvarna 532088348

Washer

$7.49

$

In Stock, Qty 6

0

53

Husqvarna 532197991

Clip, Cable

$7.49

$

In Stock, Qty 6

0

54

Husqvarna 532183365

Screw

$6.49

$

Usually ships in 3-10 days

0

55

Husqvarna 532410595

Selector Spring, Rear
(Superseded to 532401624)

$4.99

$

In Stock, only 1 left!

0

58

Husqvarna 532751153

Locknut, Hex 5/16-18

$4.99

$

In Stock, only 2 left!

0

61

Husqvarna 532401630

Washer, Cylindrical

$4.99

$

In Stock, only 3 left!

0

66

Husqvarna 532420611

Throttle

$

$

Not available

Husqvarna 532182191

Warning Decal

Note: (not shown)

$3.49

$

Usually ships in 3-10 days

0

Husqvarna 532419064

Operator's Manual, European

$

$

Currently unavailable

Husqvarna 532419066

Operator's Manual, Scandinavian

$

$

Currently unavailable

Husqvarna 532419065

Operator's Manual, East Bloc

$

$

Currently unavailable

Husqvarna 532419067

Operator's Manual, Baltic

$

$

Currently unavailable
