J 5000 ER - Electrolux/AYP Tiller MAINFRAME, RIGHT SIDE Parts Diagram

Tiller

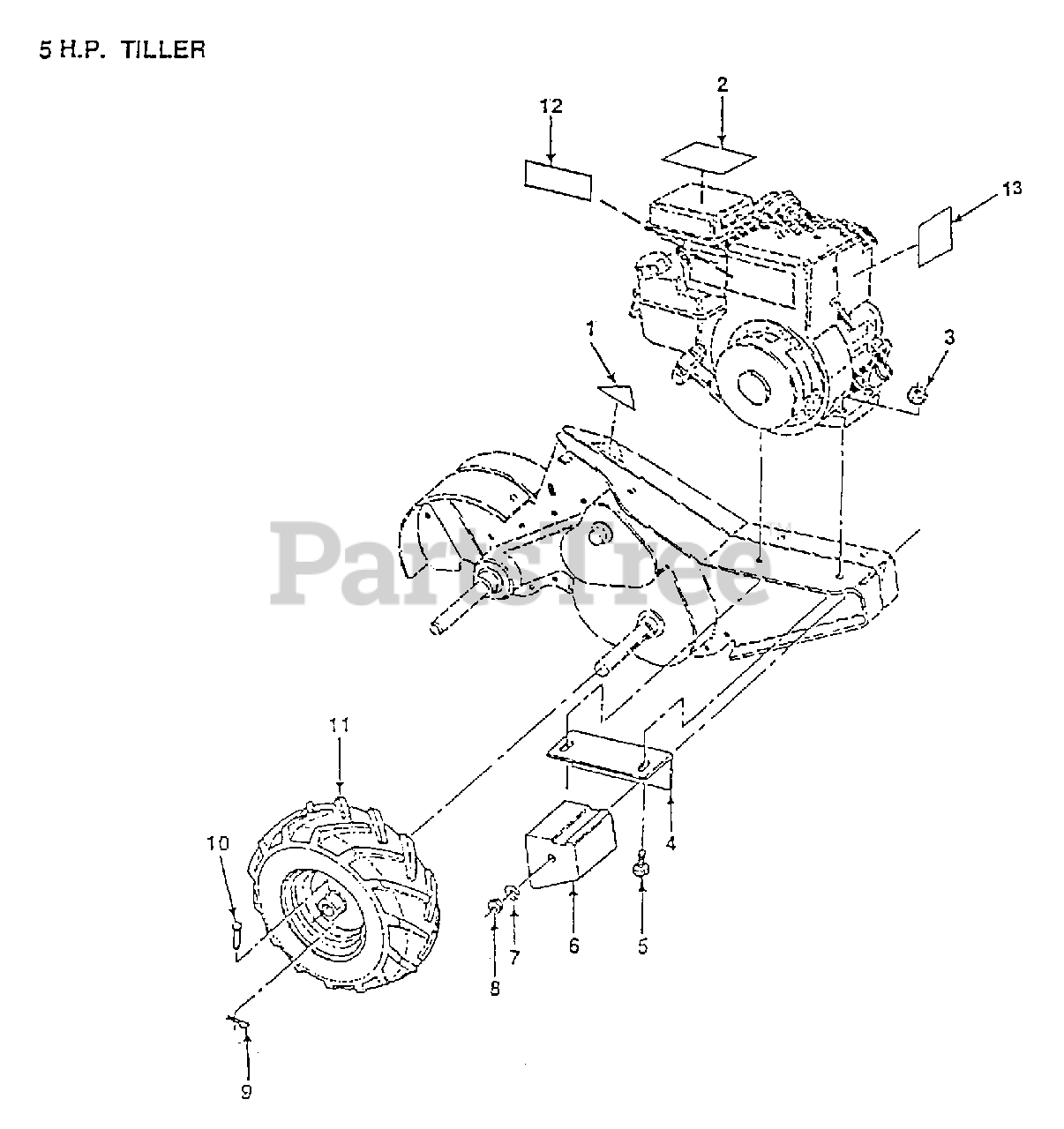

MAINFRAME, RIGHT SIDE Parts Diagram

  • Title

1

REFER TO IMAGE

$

$

Not available

2

Electrolux/AYP 110612X

DECAL TI
(Superseded to 532110612)

$

$

Not available

3

Electrolux/AYP 73510500

NUT

$2.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 102332X

BRACKET RH CRT
(Superseded to 532102332)

$

$

Not available

5

Electrolux/AYP 74760524

BOLT.HEX.5/16-1.5

$2.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 102173X

COUNTERWEIGHT CRT
(Superseded to 532102173)

$42.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 73220600

NUT.HEX.3/8-16UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

9

Electrolux/AYP 4497H

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

10

Electrolux/AYP 102841X

SUB= 126875X

$

$

Not available

11

Electrolux/AYP 102190X

TIRE.CHV.13X5.0-6
(Superseded to 532102190)

$93.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 124258X

RIM
(Superseded to 532124258)

$122.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 795R

SUB= 65139

$

$

Not available

12

Electrolux/AYP 121543X

SUB= 271948

$

$

Not available

13

Electrolux/AYP 102697X

DECAL - 5HP

$

$

Not available
