J 5000 DR - Electrolux/AYP Tiller ENGINE, LEFT SIDE Parts Diagram

Tiller

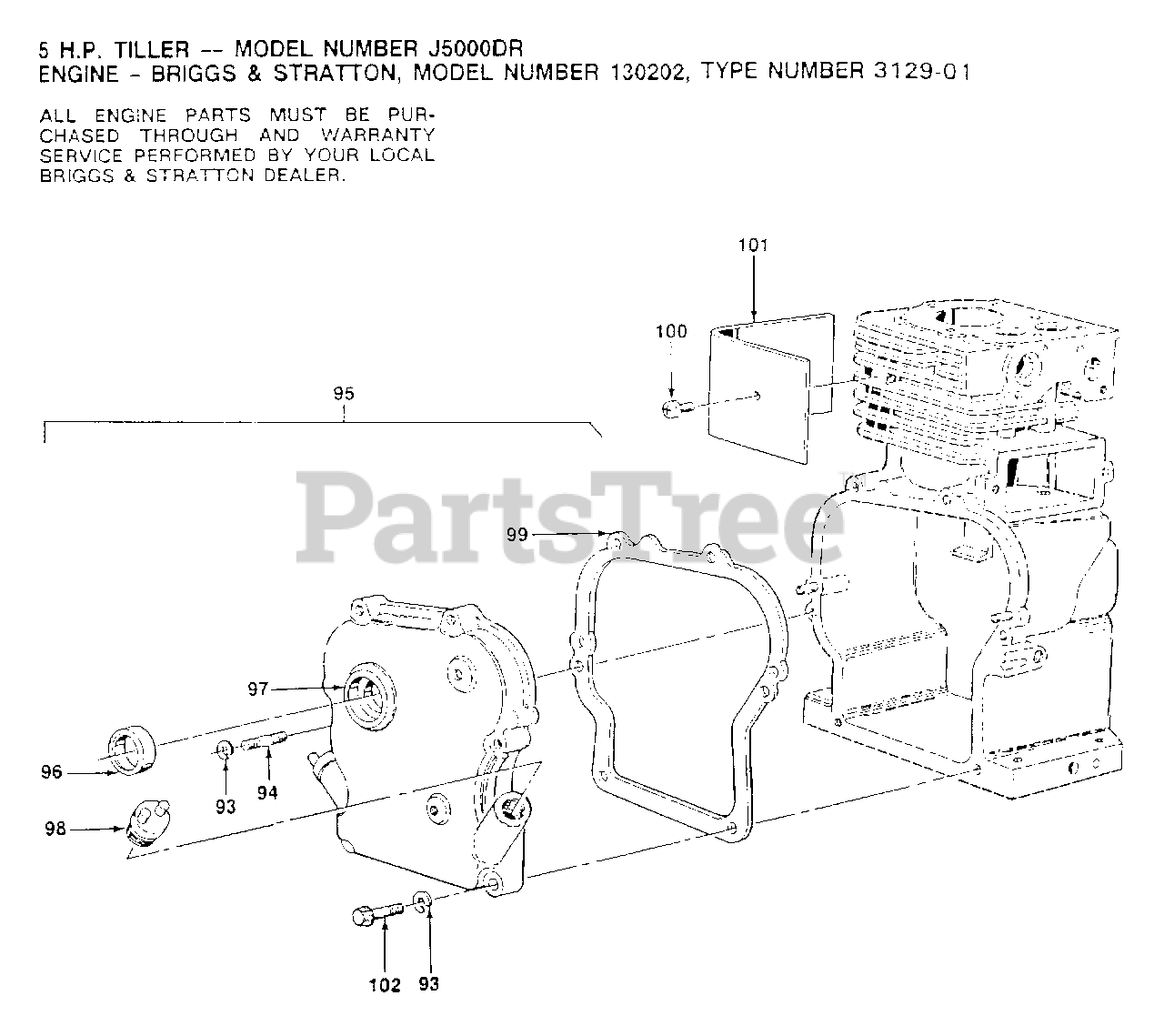

ENGINE, LEFT SIDE Parts Diagram

  • Title
93

Briggs & Stratton 90832

WASHER, LOCK
(Superseded to 22097GS)

$3.49

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 93656

STUD
(Superseded to 691120)

$12.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 297602

COVER ASSEMBLY, CRANKCASE
(Superseded to 694350)

$149.99

$

Usually ships in 2-12 days

0

96

Briggs & Stratton 294606

SEAL, OIL
(Superseded to 294606S)

$9.49

$

In Stock, Qty 11

0

97

Briggs & Stratton 297603

BUSHING, CRANKCASE COVER

$

$

Not available

98

Briggs & Stratton 66768

PLUG, OIL FILLER
(Superseded to 281658S)

$4.49

$

In Stock, Qty 20+

0

99

Briggs & Stratton 270080

GASKET CRANKCASE STANDARD .015"
(Superseded to 692213)

$3.99

$

In Stock, only 4 left!

0

100

Briggs & Stratton 93490

SCREW, HEX HEAD
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

101

Briggs & Stratton 221511

SHIELD, CYLINDER
(Superseded to 694514)

$28.99

$

In Stock, only 1 left!

0

102

Briggs & Stratton 93032

SCREW, SEM, MOUNTING
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0
