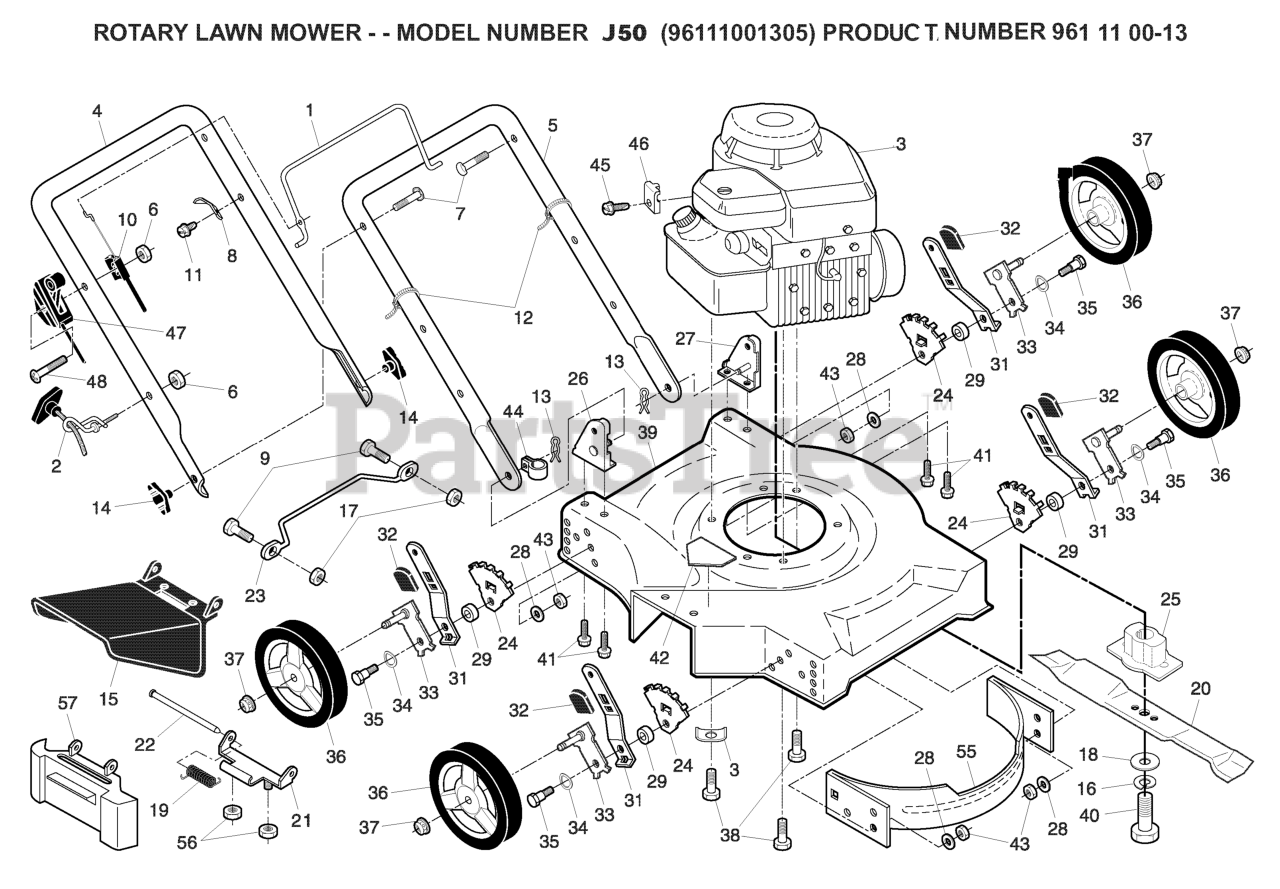

J 50 (961110013-05) - Husqvarna Walk-Behind Mower (2008-02) PRODUCT COMPLETE Parts Diagram

Walk-Behind Mower

PRODUCT COMPLETE Parts Diagram

  • Title
-

Husqvarna 532400058

NEEDS DESCRIPTION

$

$

Currently unavailable

35

Husqvarna 532401638

SHOULDER BOLT 5/16-18
(Superseded to 596203801)

$4.99

$

In Stock, Qty 8

0

-

Husqvarna 532141520

REAR BAFFLE
(Superseded to 532133379)

$

$

Not available

44

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0

36

Husqvarna 532413183

WHEEL AND TIRE ASSY, REAR
(Superseded to 532401272)

$31.99

$

In Stock, only 4 left!

0

21

Husqvarna 532088602

HINGE DEFLECTOR

$4.99

$

Usually ships in 3-10 days

0

-

Husqvarna 532400057

NEEDS DESCRIPTION

$

$

Currently unavailable

42

Husqvarna 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, Qty 5

0

17

$6.49

$

Usually ships in 3-10 days

0

39

Husqvarna 532416695

NEEDS DESCRIPTION

$

$

Currently unavailable

33

Husqvarna 532407871

AXLE ARM ASSY.
(Superseded to 532401179)

$7.49

$

In Stock, only 1 left!

0

14

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$9.49

$

In Stock, Qty 13

0

31

Husqvarna 532406428

SELECTOR SPRING, FRONT
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

1

Husqvarna 532196025

BAIL.CONT.D.STRAIGHT.PUSH.BLK

$

$

Not available

34

Husqvarna 532401630

WASHER.CURVED.CYLINDRICAL

$4.99

$

In Stock, only 3 left!

0

46

Husqvarna 532111190

CABLE CLAMP(ENGINE)

$

$

Not available

6

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

10

Husqvarna 532700892

CABLE.CONTROL.MZR.RH.SP/PUSH

$

$

Not available

45

Husqvarna 532083816

SCREW.HEX.HEAD.WASHER.10-16

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 2 left!

0

2

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

15

Husqvarna 532413568

NEEDS DESCRIPTION

$

$

Not available

57

Husqvarna 532412400

PLATE.MULCHER.20.ECONOMY.BLK.
(Superseded to 583337601)

$9.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 2 left!

0

55

Husqvarna 532141519

FRONT BAFFLE
(Superseded to 588548801)

$5.99

$

Usually ships in 3-10 days

0

56

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

19

Husqvarna 532411832

SPRING.SIDE.DISCHARGE

$5.99

$

In Stock, only 4 left!

0

41

Husqvarna 532149741

SCREW.5/16-18X3/4
(Superseded to 532171877)

$7.49

$

In Stock, Qty 6

0

29

Husqvarna 532401629

SPACER.HEIGHT.ADJUSTER

$6.49

$

In Stock, only 4 left!

0

5

Husqvarna 532153406

HANDLE
(Superseded to 532151590)

$22.99

$

In Stock, only 1 left!

0

37

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 532145106

BLADE.20.MULCH.(50DK,6020MD)

$20.99

$

In Stock, only 1 left!

0

38

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

3

Husqvarna 532125078

WASHER.ENGINE.BZP

$5.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

-

Husqvarna 532400055

NEEDS DESCRIPTION

$

$

Currently unavailable

23

$

$

Not available

26

Husqvarna 532170975

HANDLE BRACKET ASM. RH
(Superseded to 532170345)

$7.49

$

In Stock, only 1 left!

0

28

Husqvarna 532061537

WASHER
(Superseded to 819132012)

$3.49

$

Usually ships in 3-10 days

0

22

$6.49

$

Usually ships in 3-10 days

0

47

Husqvarna 532700417

THROTTLE CONTROL

$24.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

13

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532170977

HANDLE BRACKET ASM. LH
(Superseded to 532170346)

$7.49

$

In Stock, only 1 left!

0

24

Husqvarna 532410807

BRACKET.ADJ.WHEEL.5POS.ADS

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532085825

REPL BY 817 02 10-08
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

4

Husqvarna 532196024

NEEDS DESCRIPTION

$

$

Currently unavailable

12

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

43

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

25

Husqvarna 532850977

BLADE ADAPTOR
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

40

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

$6.49

$

In Stock, only 1 left!

0

-

Husqvarna 532400056

NEEDS DESCRIPTION

$

$

Currently unavailable
