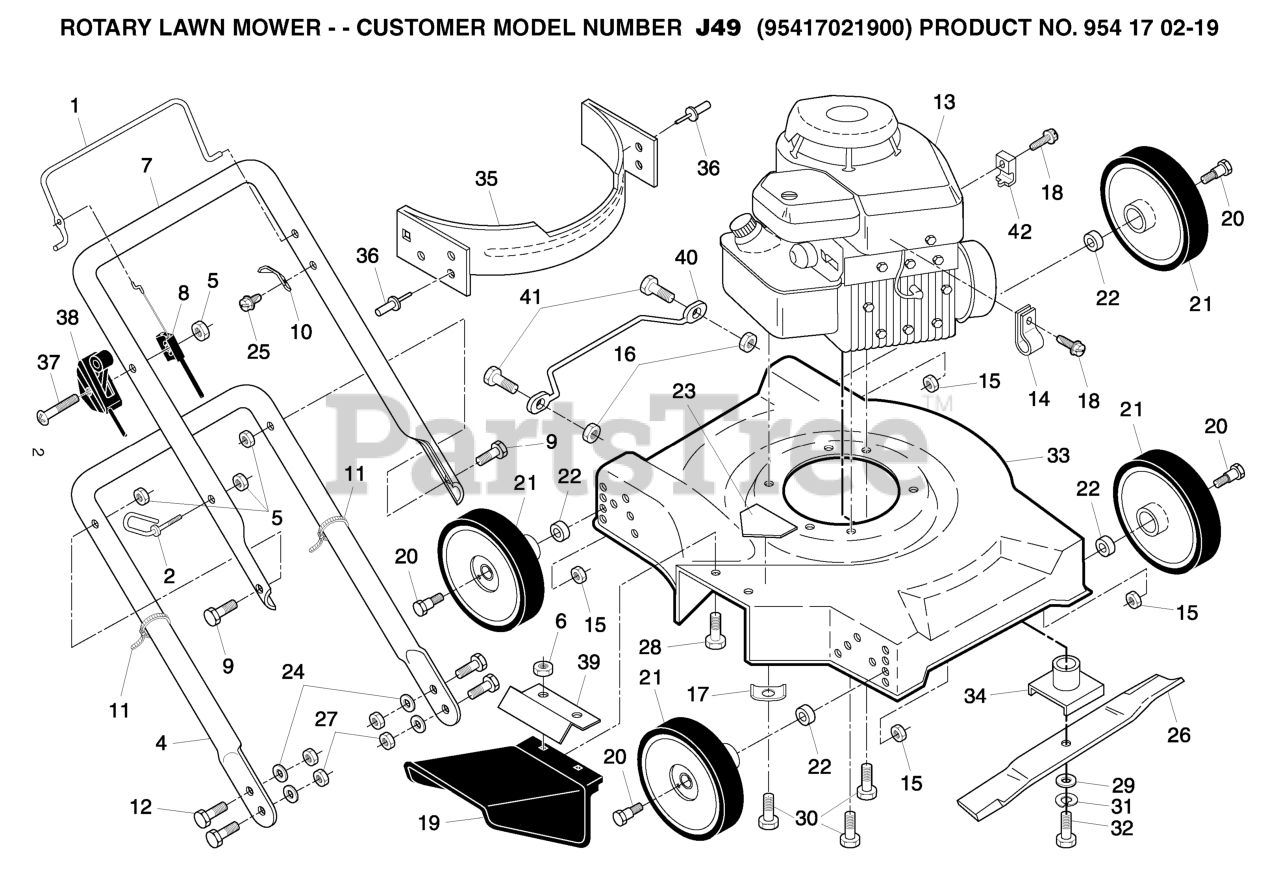

J 49 (954170219) - Husqvarna Walk-Behind Mower (2005-02) PRODUCT COMPLETE Parts Diagram

Walk-Behind Mower

PRODUCT COMPLETE Parts Diagram

  • Title

34

Husqvarna 532850977

BLADE ADAPTOR
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

31

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 14

0

4

Husqvarna 532173542

NEEDS DESCRIPTION

$

$

Currently unavailable

- -

Husqvarna 532141520

REAR BAFFLE
(Superseded to 532133379)

$

$

Not available

10

Husqvarna 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

26

Husqvarna 532850972

20" Blade
(Superseded to 532145106)

$20.99

$

In Stock, only 1 left!

0

27

Husqvarna 532132010

FLANGED LOCKNUT 3/8-16 ZINC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 532213146

WASHER
(Superseded to 532125078)

$5.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532128415

RIVET BLIND

$4.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532154147

PROTECTOR

$

$

Not available

- -

Husqvarna 532196660

NEEDS DESCRIPTION

$

$

Currently unavailable

23

Husqvarna 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532136624

SPACER.WHEEL.390.X1.0X.380.RTA

$9.99

$

In Stock, only 1 left!

0

17

Husqvarna 532125078

WASHER.ENGINE.BZP

$5.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

12

Husqvarna 532137009

NEEDS DESCRIPTION

$2.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532085825

REPL BY 817 02 10-08
(Superseded to 817021008)

$4.99

$

In Stock, Qty 16

0

18

Husqvarna 532083816

SCREW.HEX.HEAD.WASHER.10-16

$6.49

$

Usually ships in 3-10 days

0

24

Husqvarna 532055611

WASHER

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 874350424

BOLT
(Superseded to 874780424)

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532069180

LOCKNUT

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

20

Husqvarna 532067609

AXLE BOLT

$

$

Not available

33

Husqvarna 532189631

NEEDS DESCRIPTION

$

$

Currently unavailable

42

Husqvarna 532087930

GUIDE CLIP PM

$5.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532141519

FRONT BAFFLE
(Superseded to 588548801)

$5.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532750634

SCREW

$6.49

$

In Stock, Qty 5

0

39

Husqvarna 532162234

BRACKET

$27.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532182158

NEEDS DESCRIPTION

$

$

Currently unavailable

30

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532700892

CABLE.CONTROL.MZR.RH.SP/PUSH

$

$

Not available

19

Husqvarna 532752052

PROTECTOR

$

$

Not available

2

Husqvarna 532179585

ROPE, GUIDE
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

6

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

28

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, only 1 left!

0

1

Husqvarna 532195574

BAIL.MZR.STD.BLACK
(Superseded to 532194177)

$

$

Not available

21

Husqvarna 532800060

WHEEL
(Superseded to 584458801)

$13.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532751592

LOCKNUT PM
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 1 left!

0

32

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 532196658

NEEDS DESCRIPTION

$

$

Currently unavailable

37

Husqvarna 532158755

SCREW.PAN.HEAD

$

$

Not available

- -

Husqvarna 532196659

NEEDS DESCRIPTION

$

$

Currently unavailable
