J 2118A A - Jonsered Lawn Tractor (2004) Steering Assembly Parts Diagram

Lawn Tractor

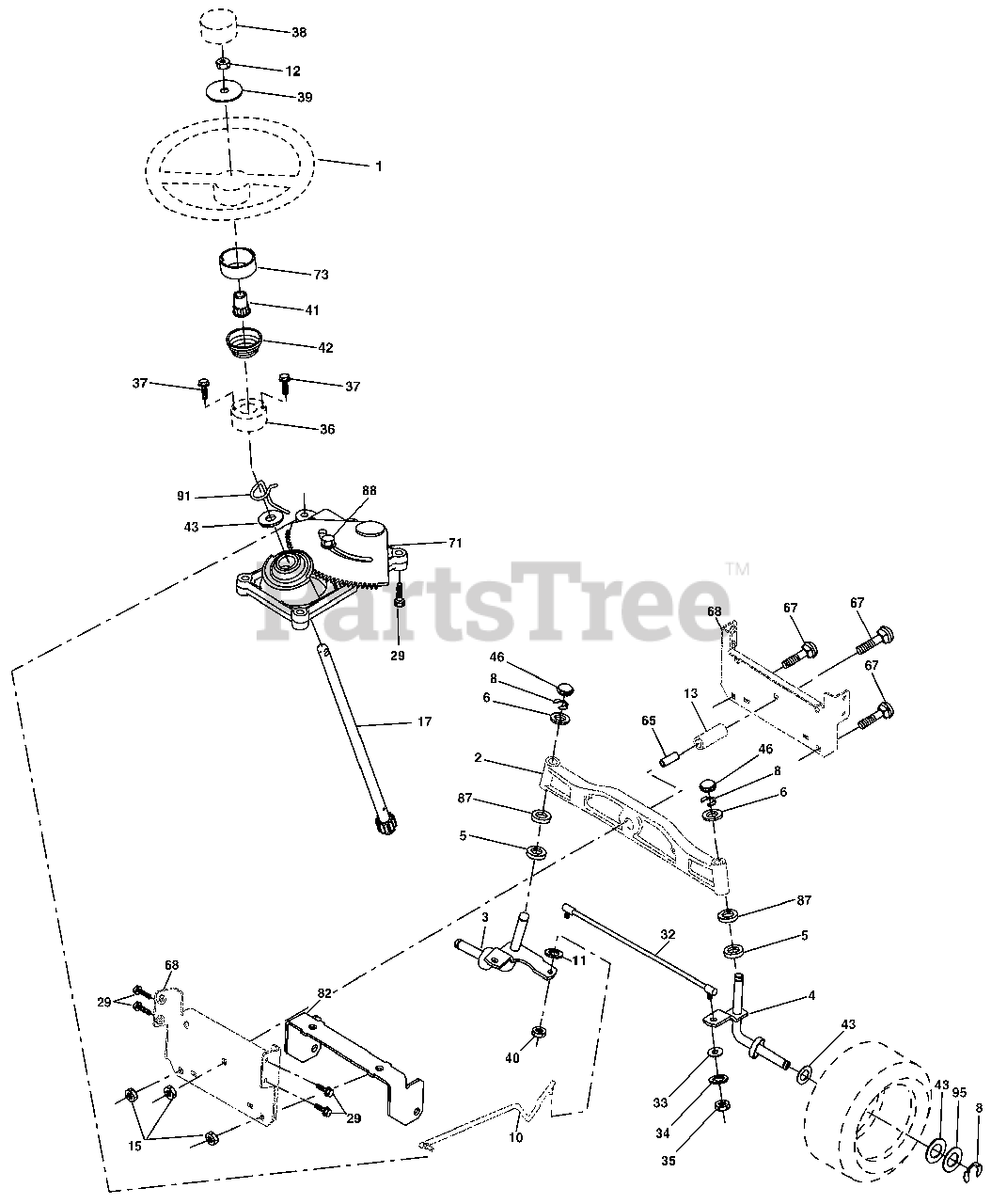

Steering Assembly Parts Diagram

  • Title

1

Electrolux/AYP 532172092

Wheel Steering

$17.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532184706

Axle Front Cast Iron
(Superseded to 532193542)

$169.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 532169840

Spindle Asm LH
(Superseded to 596873901)

$18.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 532169839

Spindle Asm Stmp RH
(Superseded to 596873801)

$31.99

$

In Stock, only 1 left!

0

5

Electrolux/AYP 532124931

Bearing Race Thrust Harden
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

6

Electrolux/AYP 532121748

Washer 25/32 x 1-5/8 x 16 Ga

$4.99

$

In Stock, Qty 20+

0

8

Electrolux/AYP 812000029

Ring Klip #t5304-75

$4.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532175121

Link Drag

$68.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 810040600

Washer Lock Hvy Hlcl Spr 3/8
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 873940800

Nut Hex Jam Top Lock 1/2-20

$7.49

$

In Stock, only 4 left!

0

13

Electrolux/AYP 532136518

Spacer Bearing Axle Front

$9.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 532145212

Nut Hex Flange Lock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 532177883

Shaft Asm Strg

$120.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 817000612

Screw 3/8-16 x .75 SMGML

$4.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 532171888

Rod Asm Tie Ball J Solid

$68.99

$

In Stock, only 1 left!

0

33

Electrolux/AYP 819111216

Washer 11/32 x 3/4 x 16 Ga.
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 810040500

Washer Lock Hvy HLCL Spr. 5/16

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 873540500

Nut Crown Lock 5/16-24

$7.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 532155105

Bushing Strg
(Superseded to 532155108)

$7.99

$

In Stock, only 1 left!

0

37

Electrolux/AYP 532152927

Screw TT #32.5 x 5 x 3/8 Flange

$7.49

$

In Stock, only 2 left!

0

38

Electrolux/AYP 532172093

Cap Wheel Steer

$

$

Not available

39

Electrolux/AYP 819182411

Washer 9/16 ID x 1 1/2 OD. 11 G. Zin

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 873540600

Nut Crownlock 3/8-24

$4.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 532159945

Adaptor Wheel Strg

$

$

Not available

42

Electrolux/AYP 532177149

Boot Dash Steering

$36.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 532121749

Washer 25/32 x 1-1/4 x 16 Ga

$3.49

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 532121232

Cap Spindle Fr Top Blk

$4.99

$

In Stock, Qty 9

0

65

Electrolux/AYP 532160367

Spacer
(Superseded to 532414736)

$6.99

$

In Stock, Qty 5

0

67

Electrolux/AYP 872110618

Bolt Rdhd Sqnk 3/8-16 x 2-1/4

$6.49

$

In Stock, only 2 left!

0

68

Electrolux/AYP 532169827

Brace, Axle

$21.99

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 532175146

Steering Asm

$182.99

$

In Stock, only 3 left!

0

73

Electrolux/AYP 532181449

Extension Steering

$

$

Not available

82

Electrolux/AYP 532169835

Bracket Susp Chassis
(Superseded to 532199978)

$15.99

$

Usually ships in 3-10 days

0

87

Electrolux/AYP 532173966

Washer Flat .781 x 1-1/2 x .14

$7.49

$

Usually ships in 3-10 days

0

88

Electrolux/AYP 532175118

Bolt Shoulder 7/16-20

$6.49

$

Usually ships in 3-10 days

0

91

Electrolux/AYP 532175553

Clip Steering

$13.99

$

In Stock, only 1 left!

0

95

Electrolux/AYP 532188967

Washer Harden .793 x 1 .637 x 060

$4.99

$

In Stock, Qty 20+
