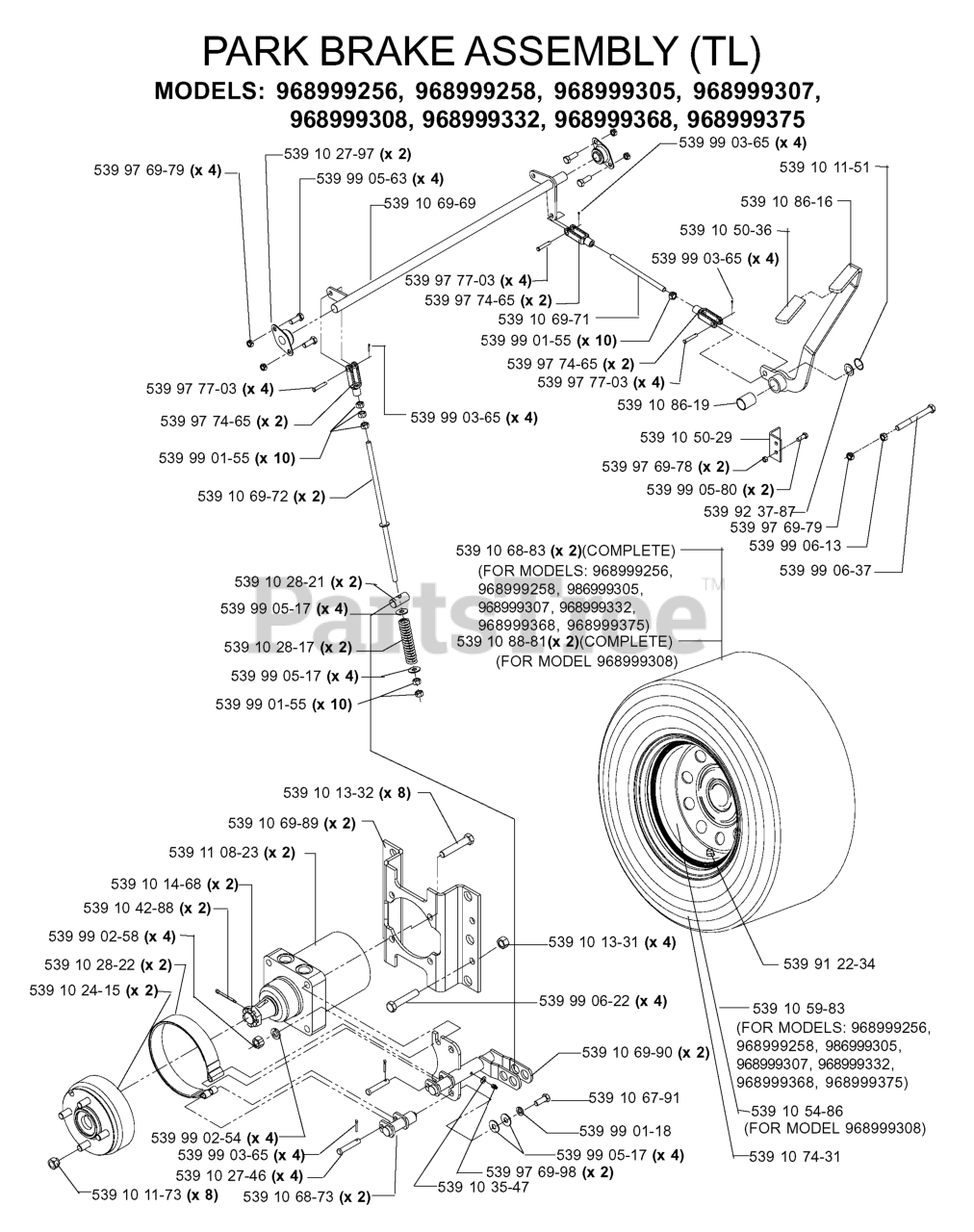

iZ 6125 (968999308) - Husqvarna 61" Zero-Turn Mower (2005-12) PARKING BRAKE 2 Parts Diagram

61" Zero-Turn Mower

PARKING BRAKE 2 Parts Diagram

  • Title
539 10 50-36

Husqvarna 539105036

GRIP, PARK BRAKE

$6.49

$

In Stock, only 2 left!

0

539 99 05-80

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

539 99 06-22

Husqvarna 539990622

HCS 1/2C X 1 1/4 SERRATED HEAD

$4.99

$

Usually ships in 3-10 days

0

539 10 24-15

Husqvarna 539102415

HUB W/BRAKE DRUM

$

$

Not available

539 91 22-34

Husqvarna 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

539 10 68-73

Husqvarna 539106873

BRAKE BAND SUPPORT

$34.99

$

Usually ships in 3-10 days

0

539 97 77-03

Husqvarna 539977703

CLEVIS PIN 3/8 X 1 1/8

$5.99

$

In Stock, Qty 11

0

539 10 69-89

Husqvarna 539106989

MOTOR STANDOFF

$48.99

$

Usually ships in 3-10 days

0

539 97 69-79

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539 99 01-55

$4.99

$

In Stock, Qty 16

0

539 97 74-65

Husqvarna 539977465

YOKE-3/8-24 PLTD

$24.99

$

In Stock, Qty 11

0

539 10 86-19

$3.99

$

Usually ships in 3-10 days

0

539 10 86-16

Husqvarna 539108616

BRAKE LEVER WLDMT

$54.99

$

Usually ships in 3-10 days

0

539 10 13-32

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

539 10 54-86

Husqvarna 539105486

WHEEL/TIRE.ASM.24X12-12.SILVER

$433.99

$

Usually ships in 3-10 days

0

539 10 42-88

Husqvarna 539104288

PIN COTTER 4MM X 45MM

$3.99

$

Usually ships in 3-10 days

0

539 10 88-81

Husqvarna 539108881

RP WHEEL.ASM.23X10.5-12.TURFMA
(Superseded to 576356701)

$

$

Not available

539 99 03-65

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

539 99 05-63

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.99

$

Usually ships in 3-10 days

0

539 97 69-78

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

539 10 35-47

$0.99

$

In Stock, only 2 left!

0

539 10 28-22

Husqvarna 539102822

BRAKE BAND

$

$

Not available

539 10 69-69

Husqvarna 539106969

BRAKE CROSS SHAFT

$33.99

$

Usually ships in 3-10 days

0

539 10 68-83

Husqvarna 539106883

WHEEL/TIRE.ASM.23X10.5-12.GREY

$339.99

$

Usually ships in 3-10 days

0

539 99 06-37

Husqvarna 539990637

HCS 3/8C X 2 1/2

$1.99

$

Usually ships in 3-10 days

0

539 10 69-90

Husqvarna 539106990

BRAKE WLDMNT

$

$

Not available

539 97 69-79

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539 92 37-87

Husqvarna 539923787

BSHG .875 X 1.375 X .074 ZD

$3.99

$

In Stock, only 1 left!

0

539 10 14-68

Husqvarna 539101468

NUT 3/4-16 HEX SLTD GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

539 99 05-17

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

539 10 67-91

Husqvarna 539106791

HEX BOLT 3/8 X 1"

$3.99

$

Usually ships in 3-10 days

0

539 99 01-18

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$4.99

$

In Stock, Qty 20+

0

539 10 28-21

Husqvarna 539102821

TRUNION PIN

$5.99

$

Usually ships in 3-10 days

0

539 10 69-71

Husqvarna 539106971

LINKAGE - SHORT

$2.99

$

Usually ships in 3-10 days

0

539 10 28-17

Husqvarna 539102817

COMPRESSION SPRING

$

$

Not available

539 10 50-29

$8.99

$

Usually ships in 3-10 days

0

539 10 11-51

Husqvarna 539101151

RETAINING RING, 7/8"

$

$

Not available

539 10 74-31

Husqvarna 539107431

TIRE.TURF.MASTER.23X10.5-12

$423.99

$

Usually ships in 3-10 days

0

539 10 59-83

Husqvarna 539105983

RIM 0 OFFSET 8.5" WIDE

$

$

Not available

539 99 06-13

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

539 99 02-58

Husqvarna 539990258

NUT HEX 1/2

$4.99

$

In Stock, Qty 14

0

539 10 69-72

$10.99

$

Usually ships in 3-10 days

0

539 10 27-97

Husqvarna 539102797

FLANGE BEARING

$9.49

$

Usually ships in 3-10 days

0

539 99 02-54

Husqvarna 539990254

WASHER 1/2" SPLIT LOCK

$3.99

$

Usually ships in 3-10 days

0

539 10 27-46

Husqvarna 539102746

CLEVIS PIN

$3.99

$

Usually ships in 3-10 days

0

539 97 69-98

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

539 10 11-73

Husqvarna 539101173

LUG NUT 1/2F

$

$

Not available

539 10 13-31

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

539 11 08-23

Husqvarna 539110823

TL15 WHEEL MOTOR

$1139.99

$

Usually ships in 3-10 days

0
