iZ 5224 (968999332) - Husqvarna 52" Zero-Turn Mower (2005-12) WIRING HARNESS Parts Diagram

52" Zero-Turn Mower

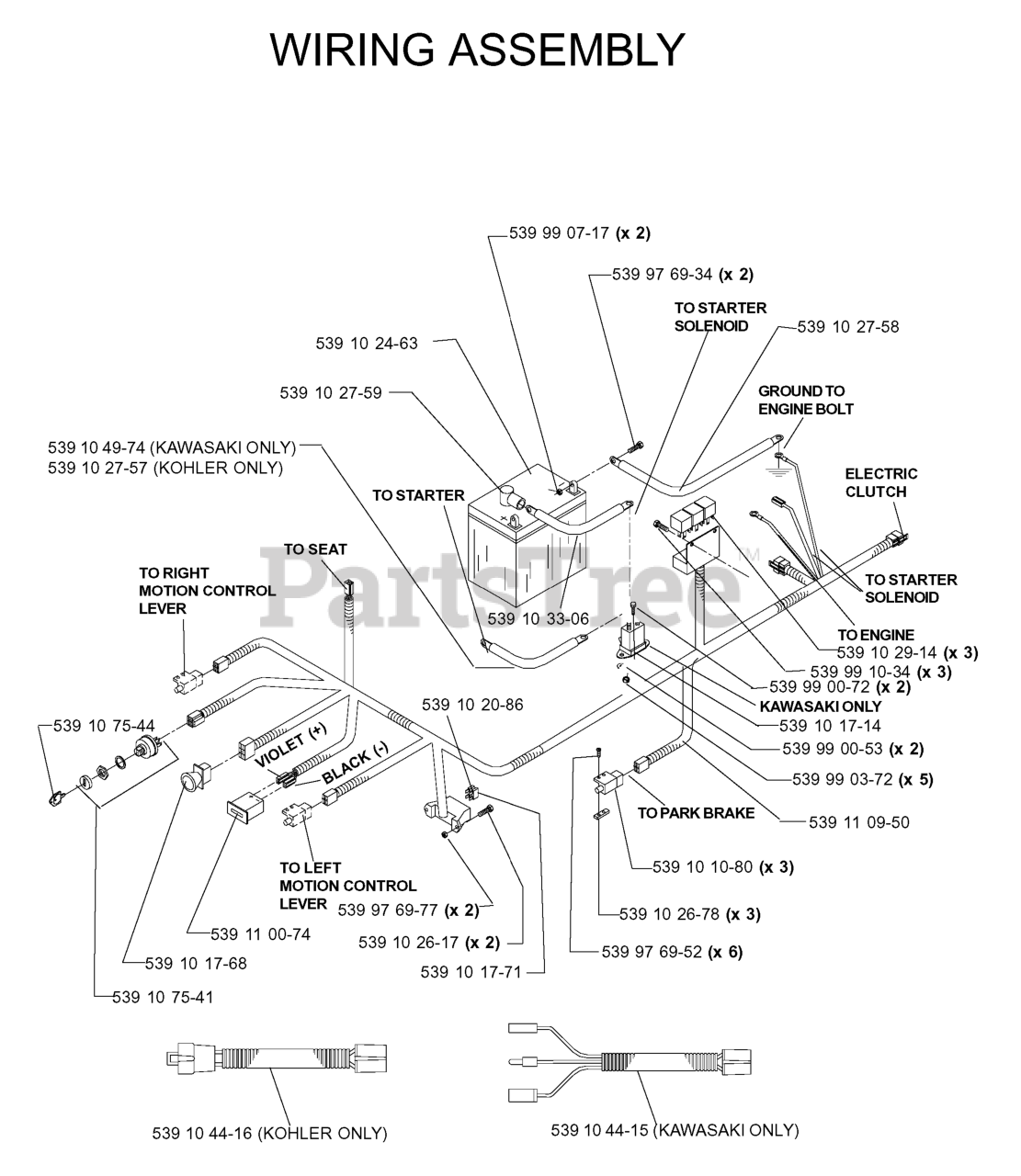

WIRING HARNESS Parts Diagram

  • Title
539 10 44-15

Husqvarna 539104415

KAW PIGTAIL

$34.99

$

Usually ships in 3-10 days

0

539 10 27-57

Husqvarna 539102757

CABLE POSITIVE

$15.99

$

Usually ships in 3-10 days

0

539 10 27-59

$4.99

$

In Stock, only 2 left!

0

539 97 69-34

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

539 99 10-34

Husqvarna 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

539 10 20-86

Husqvarna 539102086

FUSE, 20 AMP 32 VOLT ATO

$

$

Not available

539 99 00-72

Husqvarna 539990072

HCS 1/4C X 5/8

$3.99

$

In Stock, only 1 left!

0

539 99 00-53

Husqvarna 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 3 left!

0

539 10 75-44

Husqvarna 539107544

KEY
(Superseded to 532140401)

$6.99

$

In Stock, Qty 7

0

539 10 26-17

Husqvarna 539102617

SCREW, #1--24 X 1/2 SLOTTED

$3.99

$

In Stock, only 3 left!

0

539 10 29-14

$26.99

$

In Stock, Qty 8

0

539 10 17-14

$26.99

$

Usually ships in 3-10 days

0

539 97 69-77

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

539 10 26-78

Husqvarna 539102678

TAPPED PLATE

$15.99

$

In Stock, Qty 9

0

539 10 49-74

Husqvarna 539104974

POST.CABLE LONG

$

$

Not available

539 10 44-16

Husqvarna 539104416

KOH PIGTAIL

$42.99

$

Usually ships in 3-10 days

0

539 10 27-58

Husqvarna 539102758

CABLE-NEGATIVE

$

$

Not available

539 10 17-71

Husqvarna 539101771

FUSE, 7.5 AMP 32 VOLT ATO

$

$

Not available

539 10 24-63

Husqvarna 539102463

BATTERY WET NOT SELLABLE
(Superseded to 579411601)

$

$

Not available

539 99 03-72

Husqvarna 539990372

NUT 1/4C CENTERLOCK
(Superseded to 539990761)

$4.99

$

In Stock, only 4 left!

0

539 97 69-52

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

539 10 75-41

Husqvarna 539107541

RP IGNITION SWITCH
(Superseded to 532175566)

$26.99

$

In Stock, only 4 left!

0

539 11 09-50

Husqvarna 539110950

FRAME HARNESS

$

$

Not available

539 10 17-68

Husqvarna 539101768

RP.SWITCH, BLADE
(Superseded to 582107601)

$28.99

$

In Stock, Qty 6

0

539 10 33-06

Husqvarna 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

$10.99

$

In Stock, only 2 left!

0

539 10 10-80

Husqvarna 539101080

SWITCH, INTERLOCK

$17.99

$

Usually ships in 3-10 days

0

539 99 07-17

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539 11 00-74

Husqvarna 539110074

HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 6

0
