iZ 5223 VAN - Husqvarna 52" Zero-Turn Mower (2008-12) FUEL SYSTEM Parts Diagram

52" Zero-Turn Mower

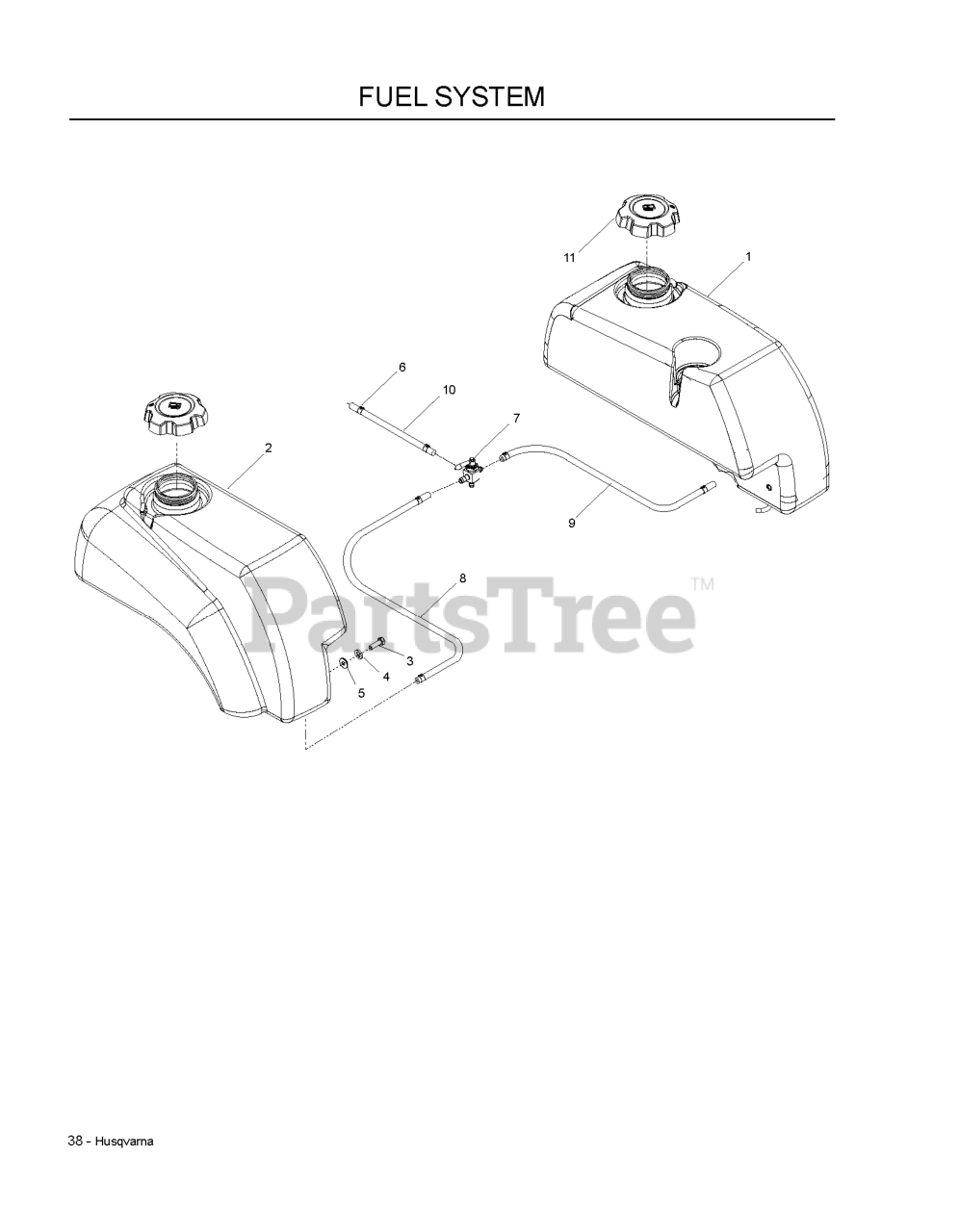

FUEL SYSTEM Parts Diagram

  • Title
6

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

8

Husqvarna 539105527

FUEL LINE 24"
(Superseded to 539110424)

$7.99

$

In Stock, only 2 left!

0

10

Husqvarna 539108212

FUEL LINE 13"

$2.49

$

In Stock, Qty 5

0

7

Husqvarna 539102679

FUEL VALVE

$56.99

$

In Stock, only 2 left!

0

1

Husqvarna 539104409

LEFT TANK W/CUP HOLDER

Note: LT

$

$

Not available

3

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 539117050

HOSE 1/4 X 28

$103.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539104410

FUEL TANK RT

Note: RT

$

$

Not available

4

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

11

Husqvarna 539130393

FUEL CAP, HTC

$

$

Not available
