iZ 5223 VAN - Husqvarna 52" Zero-Turn Mower (2008-12) ENGINE PLATE Parts Diagram

52" Zero-Turn Mower

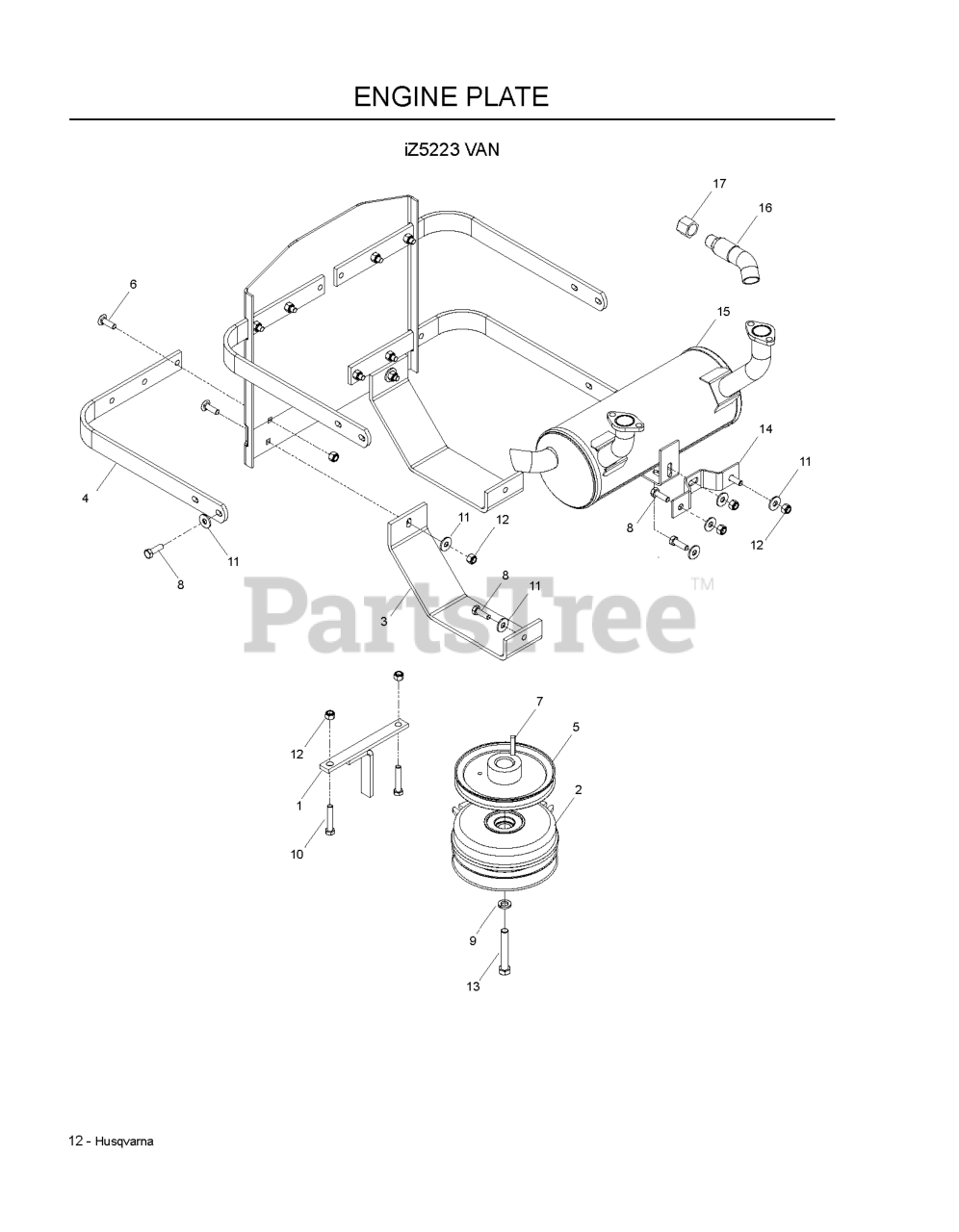

ENGINE PLATE Parts Diagram

  • Title

12

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 539110419

MUFFLER VANGUARD 23HP

$

$

Not available

Husqvarna 539102757

CABLE POSITIVE

$15.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539106961

ENGINE SHROUD BRKT

$21.99

$

In Stock, only 1 left!

0

14

Husqvarna 539110418

BRACKET, MUFFLER

$18.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539106880

CLUTCH-200 FT LB(RPLS 5218-102

$

$

Not available

1

Husqvarna 539106819

CLUTCH TIE DOWN

$

$

Not available

6

Husqvarna 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.99

$

In Stock, Qty 6

0

10

Husqvarna 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 2 left!

0

3

Husqvarna 539106957

SKID PLATE

$21.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539101362

OIL DRAIN HOSE

$47.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

5

Husqvarna 539106992

PULLEY

$

$

Not available

7

Husqvarna 539912757

KEY, 1/4 SQ X 1 1/4

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539110065

HCS 7/16-20 X 2-3/4

$4.99

$

Usually ships in 3-10 days

0

Husqvarna 539107516

KOHLER PIGTAIL-CV490S

$

$

Not available

17

Husqvarna 539101364

DRAIN CAP

$7.49

$

Usually ships in 3-10 days

0
