iZ 5223 VAN - Husqvarna 52" Zero-Turn Mower (2008-12) CHASSIS / FRAME Parts Diagram

52" Zero-Turn Mower

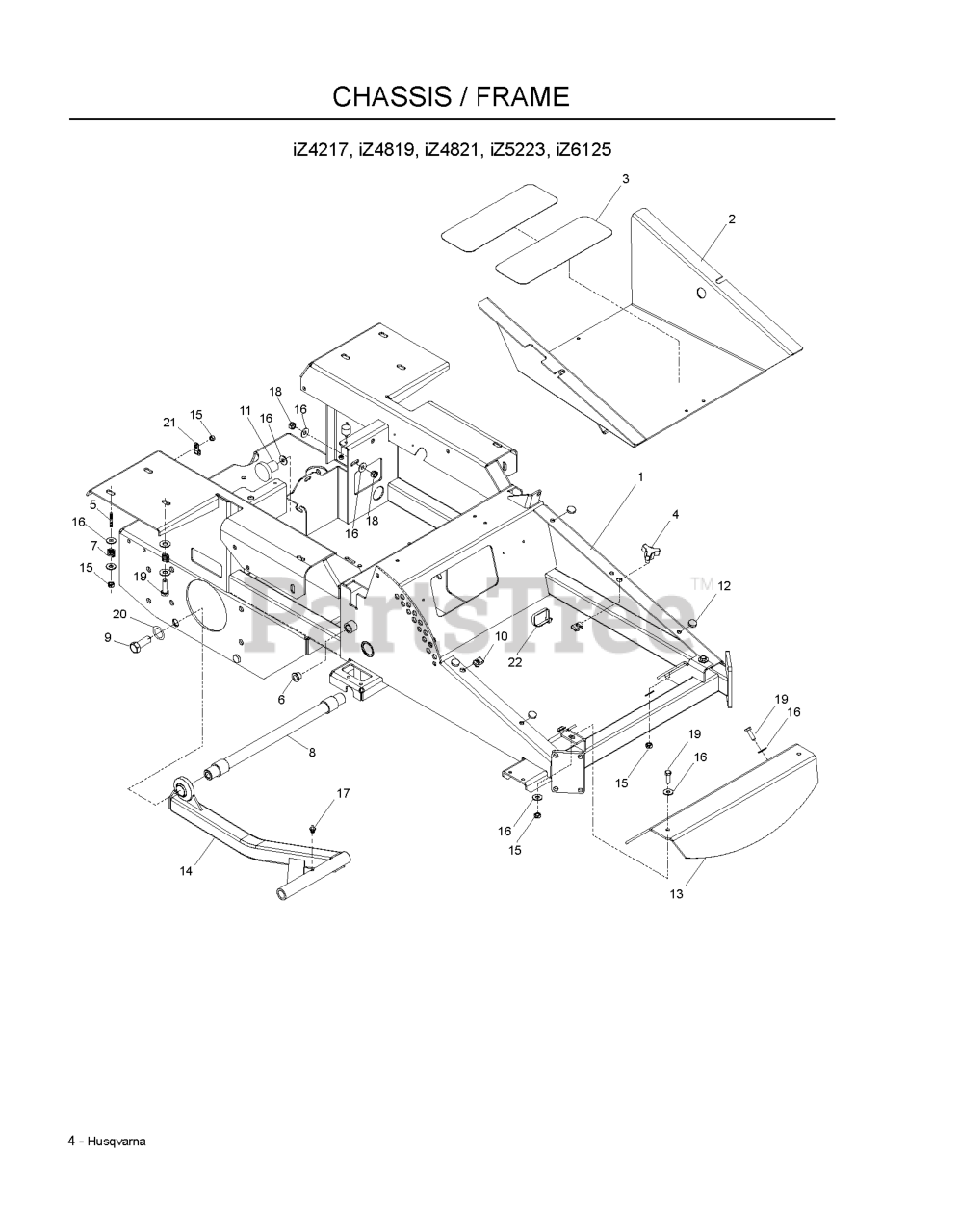

CHASSIS / FRAME Parts Diagram

  • Title

13

Husqvarna 539106941

FOOTREST ORANGE

$70.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 9

0

21

Husqvarna 539109867

DOUBLE TUBE CLAMP

$6.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539102502

STUD, 5/16C

$10.99

$

In Stock, only 4 left!

0

8

Husqvarna 539104197

STRUT MOUNT WELDMENT

$

$

Not available

11

Husqvarna 539105169

KNOB

$9.49

$

Usually ships in 3-10 days

0

4

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

1

Husqvarna 539111098

IZ FRAME W/DECALS

$897.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539977778

ANTI-SKID PAD

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539102845

SPRING

$4.99

$

In Stock, only 1 left!

0

20

Husqvarna 539990333

LOCKWASHER 5/8

$1.99

$

In Stock, Qty 6

0

14

Husqvarna 539110807

STRUT, LT

Note: LT

$424.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539104199

HCS 5/8C X 2 GR.5

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

2

Husqvarna 539111573

IZ FOOTPLATE W/DECAL

$

$

Not available

17

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

18

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 539102519

BUSHING

$

$

Not available

12

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

22

Husqvarna 539976856

TIE, PLASTIC

$5.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539110806

STRUT, RT

Note: RT

$424.99

$

Usually ships in 3-10 days

0
