iZ 5223 TXPKOA (968999307) - Husqvarna 52" Zero-Turn Mower (2006-08) Accessories (DFS Collection System - Hopper Assembly) Parts Diagram

52" Zero-Turn Mower

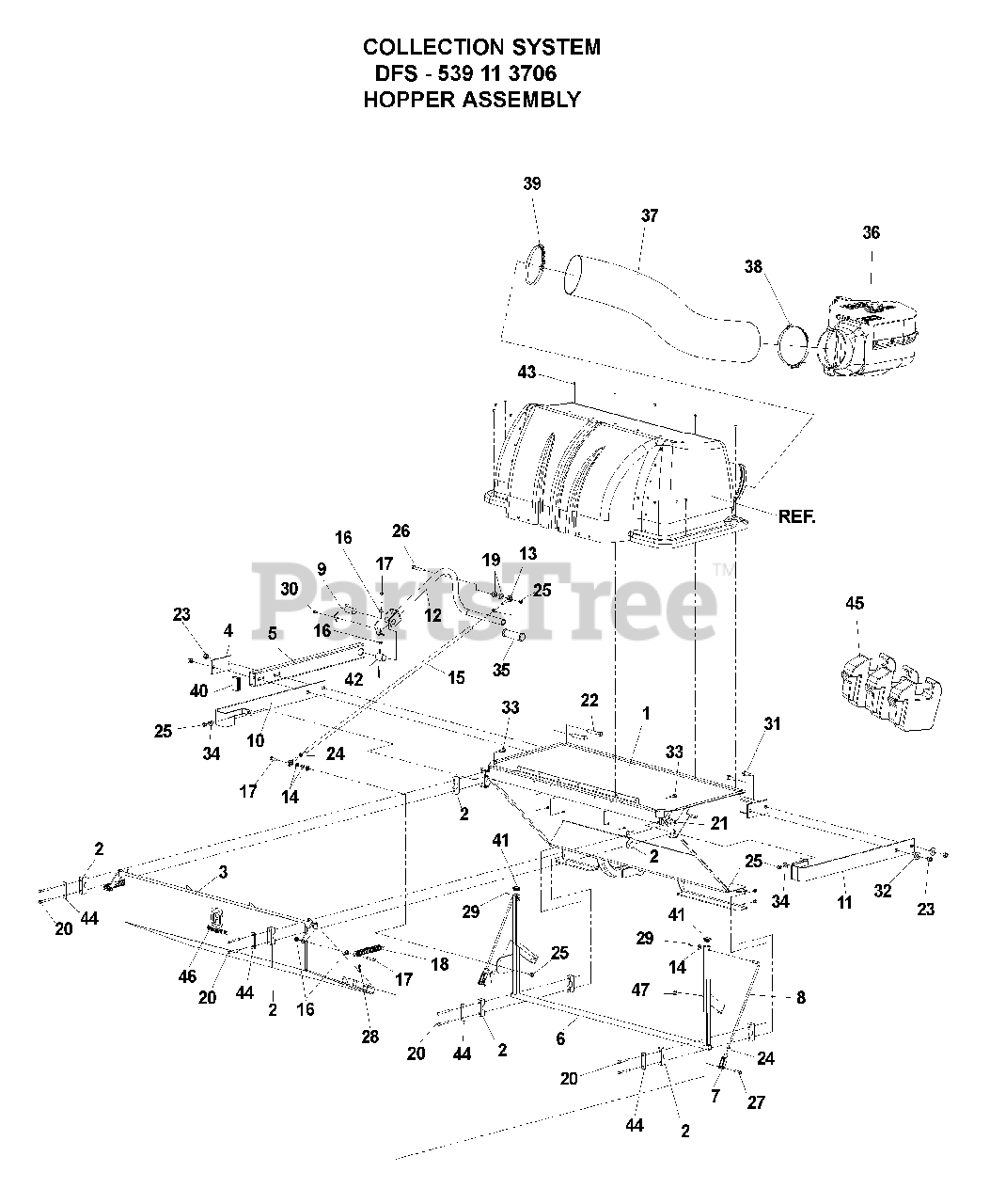

Accessories (DFS Collection System - Hopper Assembly) Parts Diagram

  • Title

1

Husqvarna 539113754

HOPPER

$1133.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539104808

PILLOW BLOCK

$9.49

$

Usually ships in 3-10 days

0

3

Husqvarna 539113747

DOOR

$512.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539113755

PLATE - BACKING

$13.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539113748

TUBE, SUPPORT, HANDLE

$

$

Not available

6

Husqvarna 539113746

BELL CRANK

$

$

Not available

7

Husqvarna 539977465

YOKE, 3/8F

$24.99

$

In Stock, Qty 11

0

8

Husqvarna 539113722

ROD, DOOR

$79.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539113749

PIN, PIVOT

$56.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539113750

GUARD, LEFT

$85.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539113751

GUARD, RIGHT

$96.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539113752

HANDLE

$279.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539113739

ROD END, 3/8-24, RH

$14.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539990122

WASHER, 3/8, SAE
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 539113753

TUBE, THREADED

$205.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990613

NUT, 3/8-16, WHIZLK

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990655

HCS, 3/8-16 X 1 1/2, GR5

$4.99

$

In Stock, only 2 left!

0

18

Husqvarna 539107315

SPRING

$9.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539102656

SPACER

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539991046

HCS, 5/16-18 X 2 1/2, GR5

$4.99

$

In Stock, Qty 8

0

21

Husqvarna 539990717

NUT, 5/16-18, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 539101572

HCS, 1/2-13 X 3, GR5

$5.99

$

In Stock, Qty 10

0

23

Husqvarna 539101331

NUT, 1/2-13, NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 539108732

NUT, 3/8-24, JAM

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539976979

NUT, 3/8-16, NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 539106492

HCS, 3/8-16 X 2 3/4, GR5

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539109232

PIN CLEVIS, 3/8 X 1 1/4

$4.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539976988

HAIRPIN COTTER

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990365

PIN, COTTER, 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

30

Husqvarna 539990302

SCREW, 1/4C X 3/8, THREAD FORMING

$

$

Not available

31

Husqvarna 539108369

HCS, 1/2-13 X 1 1/4, GR5

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539109554

WASHER, 1/2

$

$

Not available

33

Husqvarna 539990563

HCS, 3/8-16 X 1, GR5

$1.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990517

WASHER, 3/8

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539000033

GRIP, HANDLE

$

$

Not available

36

Husqvarna 539111230

BLOWER
(Superseded to 580715301)

$

$

Not available

37

Husqvarna 539111287

HOSE, L

$339.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539109901

OVER CENTER BAND

$78.99

$

In Stock, only 1 left!

0

39

Husqvarna 539097076

HOSE CLAMP, 6-7

$8.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539113757

PLUG, RECTANGULAR TUBING

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539113758

PLUG, SQUARE TUBE

$3.49

$

Usually ships in 3-10 days

0

42

Husqvarna 539113731

BUSHING, 1

$45.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539200684

RIVET, 3/6, STAVEX

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539104807

REINFORCEMENT BAR
(Superseded to 584392702)

$13.99

$

In Stock, only 4 left!

0

45

Husqvarna 539000019

WEIGHT CAST, FRONT
(Superseded to 539092531)

$133.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539111055

DECAL, CROWN

$24.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539102587

GROMMET, BUMPER 69

$5.99

$

In Stock, Qty 15

0

539113706

Husqvarna 539113706

Hopper Assembly Collection (DFS)

$

$

Not available
