iZ 5223 TVAN (968999526) - Husqvarna 52" Zero-Turn Mower (2006-08) Main Frame Assembly (Part 1) Parts Diagram

52" Zero-Turn Mower

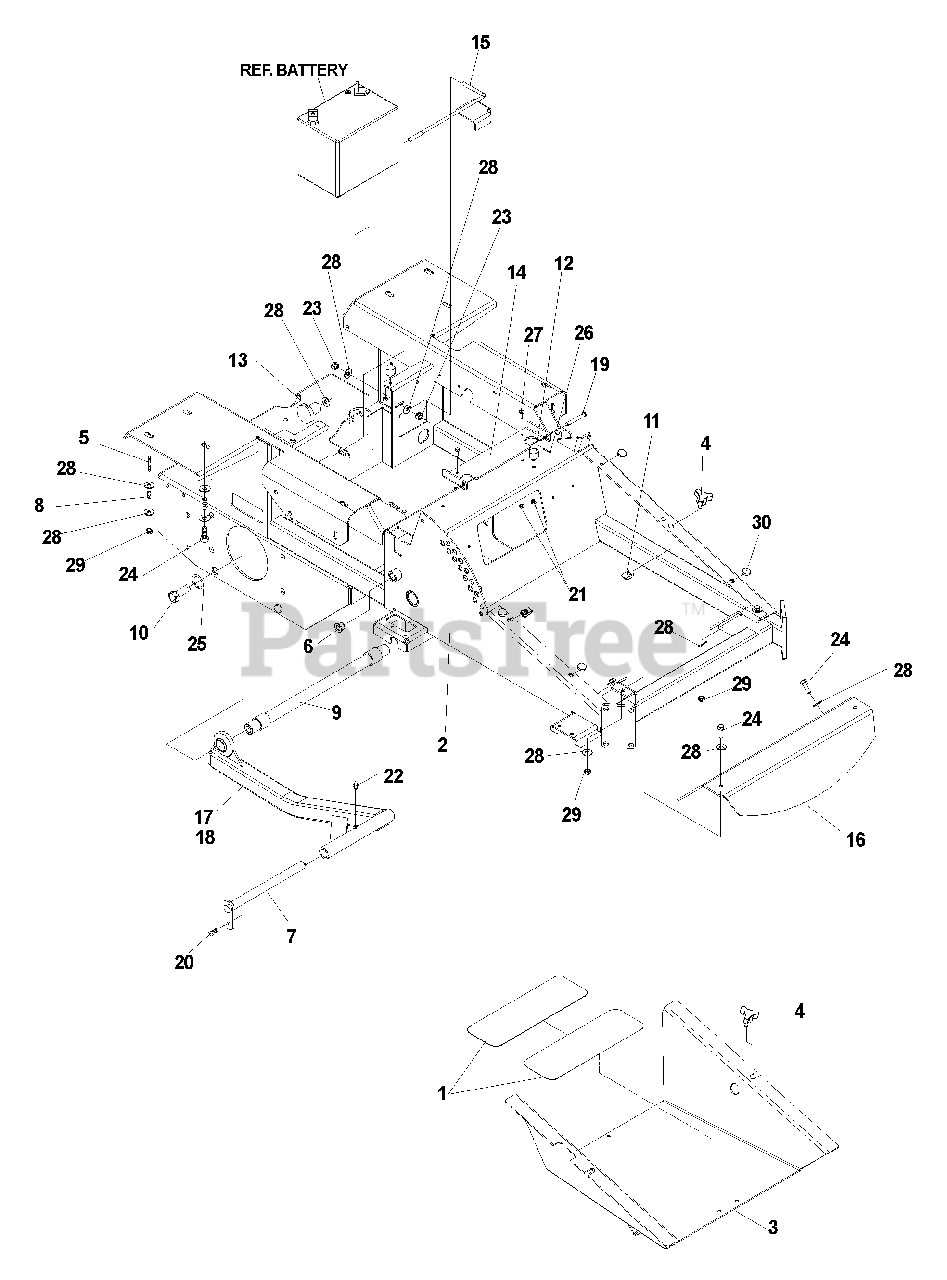

Main Frame Assembly (Part 1) Parts Diagram

  • Title
1

Husqvarna 539977778

PAD-ADRASIVE

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 539111098

FRAME W/DECALS

$897.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539111573

FOOT PLATE W/DECALS

$

$

Not available

4

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 539102502

TANK-STUD FUEL

$10.99

$

In Stock, only 4 left!

0

$

$

Not available

7

Husqvarna 539102619

PIN, PIVOT

$40.99

$

In Stock, only 3 left!

0

8

Husqvarna 539102845

SPRING, FUEL TANK

$4.99

$

In Stock, only 3 left!

0

9

Husqvarna 539104197

STRUT MOUNT

$

$

Not available

10

Husqvarna 539104199

HCS, 5/8-11 X 2, GR5

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539104763

NUT, 5/16-18, U-TYPE

$6.49

$

In Stock, Qty 12

0

12

Husqvarna 539105039

MOUNT-STUD-PLATE

$6.49

$

Usually ships in 3-10 days

0

$9.49

$

Usually ships in 3-10 days

0

14

Husqvarna 539105224

SEAT BRACKET W/DECAL

$30.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539106899

BATTERY HOLD DOWN

$68.99

$

In Stock, only 1 left!

0

16

$70.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539110806

STRUT, RIGHT

$424.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539110807

STRUT, LEFT

$424.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539110819

CLEVIS PIN, 3/8

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539976934

HCS, 5/16-18 X 3/4, GR5
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 539976978

NUT, 1/4-20, NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

22

Husqvarna 539976998

ZERK, STRAIGHT, 1/4-28
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

23

Husqvarna 539990184

NUT, 5/16-18, CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539990209

HCS, 5/16-18 X 1, GR5

$1.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539990333

LOCKWASHER, 5/8

$1.99

$

In Stock, Qty 6

0

26

Husqvarna 539990365

PIN COTTER, 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

27

Husqvarna 539990580

HCS, 1/4-20 X 3/4, GR5

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539990692

WASHER, 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

29

Husqvarna 539990717

NUT, 5/16-18, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 539102587

GROMMENT, BUMPER

$5.99

$

In Stock, Qty 15

0

Husqvarna 539112654

FLOOR PAN PAD

Note: MODEL 968999307 ONLY, (NOT SHOWN)

$84.99

$

Usually ships in 3-10 days

0

Husqvarna 539112655

FOOT REST PAD

Note: MODEL 968999307 ONLY, (NOT SHOWN)

$30.99

$

Usually ships in 3-10 days

0
