iZ 4821 TSKAA (968999256) - Husqvarna 48" Zero-Turn Mower (2006-08) Main Frame Assembly (Part 2) Parts Diagram

48" Zero-Turn Mower

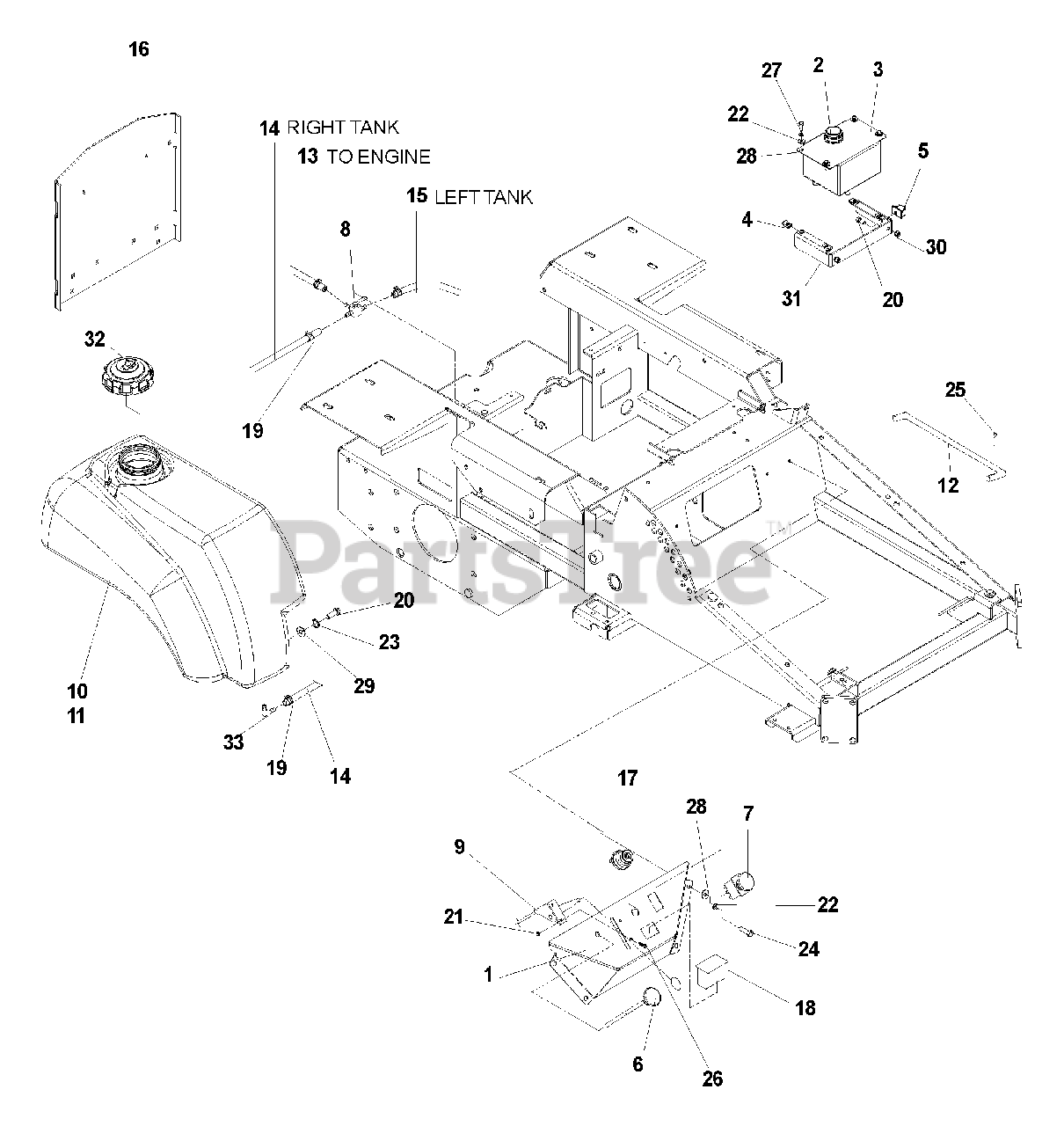

Main Frame Assembly (Part 2) Parts Diagram

  • Title

1

Husqvarna 539111147

CONSOLE W/DECALS

$51.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539101202

CAP-HYDRO RESERVOIR

$24.99

$

In Stock, only 1 left!

0

3

Husqvarna 539105024

OIL TANK

$

$

Not available

4

Husqvarna 539110813

RETAINER, U TYPE

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539110815

PUSH-MOUNT WIRE CLIP

$3.49

$

In Stock, only 1 left!

0

6

Husqvarna 539102733

CHOKE CABLE

Note: MODELS: 968999258, 968999307, 968999308

$56.99

$

In Stock, Qty 5

0

6

Husqvarna 539113458

CHOKE CABLE

Note: MODELS: 968999254, 968999255, 968999256, 968999526

$47.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539101768

SWITCH
(Superseded to 582107601)

$28.99

$

In Stock, Qty 8

0

8

Husqvarna 539102679

VALVE, FUEL

$56.99

$

In Stock, only 2 left!

0

9

Husqvarna 539103275

CONTROL, THROTTLE

$34.99

$

In Stock, only 1 left!

0

10

Husqvarna 539104409

TANK, FUEL, LEFT

$

$

Not available

11

Husqvarna 539104410

TANK, FUEL, RIGHT

$

$

Not available

12

Husqvarna 539104525

ROD, SEAT

$12.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539105281

FUEL LINE
(Superseded to 539105382)

$13.99

$

In Stock, only 2 left!

0

14

Husqvarna 539105527

FUEL LINE
(Superseded to 539110424)

$7.99

$

In Stock, only 2 left!

0

15

Husqvarna 539105530

FUEL LINE

$6.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539106959

ENGINE GUARD

$48.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539107541

IGNITION SWITCH
(Superseded to 532175566)

$26.99

$

In Stock, only 4 left!

0

18

Husqvarna 539110074

HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 6

0

19

Husqvarna 539912222

CLAMP, HOSE

$4.99

$

In Stock, only 1 left!

0

20

Husqvarna 539976934

HCS, 5/16-18 X 3/4, GR5
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 539976977

NUT, #10-24, NYLOC

$

$

Not available

22

Husqvarna 539990052

LOCKWASHER, 1/4

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539990187

LOCKWASHER, 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

24

Husqvarna 539990362

SCREW, 1/4-20 X 5/8, SELF TAP

$4.99

$

In Stock, Qty 12

0

25

Husqvarna 539990365

PIN COTTER, 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

26

Husqvarna 539990411

SCREW, #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990580

HCS, 1/4-20 X 3/4, GR5

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539990598

WASHER, 1/4

$

$

Not available

29

Husqvarna 539990692

WASHER, 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

30

Husqvarna 539990717

NUT, 5/16-18, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 539110814

TANK MOUNT

$18.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539106188

FUEL CAP, ANTISPLASH
(Superseded to 539130394)

$31.99

$

In Stock, only 1 left!

0

33

Husqvarna 539102650

TANK FITTING

$

$

Not available
