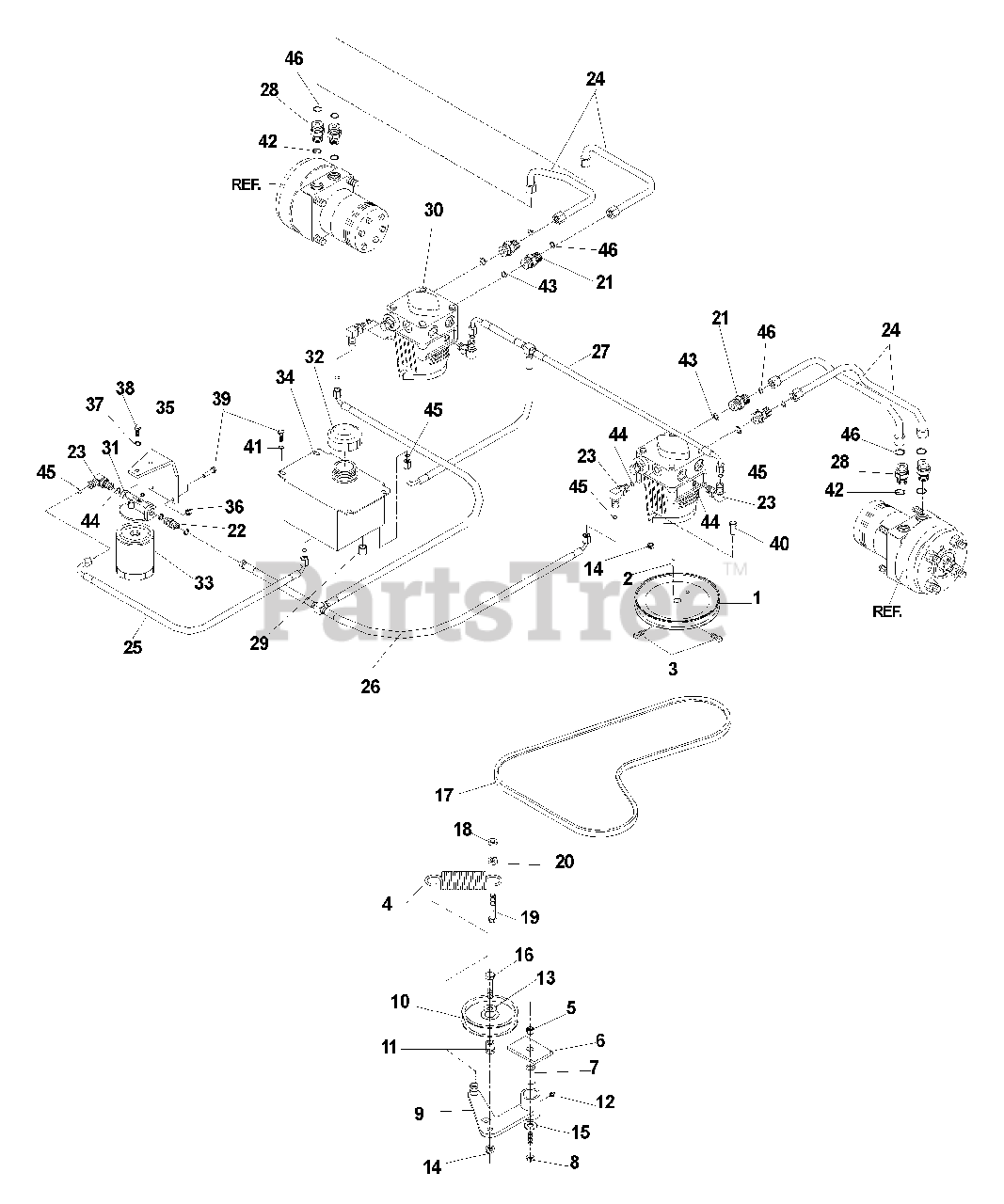

iZ 4821 TSKAA (968999256) - Husqvarna 48" Zero-Turn Mower (2006-08) Hydraulic Assembly (TL) Parts Diagram

48" Zero-Turn Mower

Hydraulic Assembly (TL) Parts Diagram

  • Title

1

Husqvarna 539101176

PULLEY

$

$

Not available

2

Husqvarna 539101177

KEY, 5MM SQ X 30MM

$8.99

$

In Stock, only 2 left!

0

3

Husqvarna 539102717

SCREW, 5/16-18 X 5/8, SET

$3.99

$

In Stock, only 4 left!

0

4

Husqvarna 539103256

SPRING, EXTENSION

$12.99

$

In Stock, Qty 6

0

5

Husqvarna 539101331

NUT, 1/2-13, NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 539102236

PAD

$27.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539103427

BUSHING, PIVOT

$9.49

$

In Stock, only 4 left!

0

8

Husqvarna 539103433

HCS, 1/2-13 X 3 1/4, GR5

$6.99

$

In Stock, only 4 left!

0

9

Husqvarna 539104388

IDLER ARM
(Superseded to 539130532)

$182.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539976688

PULLEY, IDLER

$

$

Not available

11

Husqvarna 539976695

BUSHING, FLANGE IDLER

$

$

Not available

12

Husqvarna 539976998

ZERK, STRAIGHT, 1/4-28
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

13

Husqvarna 539990517

WASHER, 3/8

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539990546

NUT, 3/8-16, CENTERLOCK

$

$

Not available

15

Husqvarna 539990550

WASHER, 9/16

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990730

HCS, 3/8-16 X 1 3/4, GR5

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539106887

PUMP BELT
(Superseded to 510201401)

$

$

Not available

18

Husqvarna 539976979

NUT, 3/8-16, NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 539990588

HCS, 3/8-16 X 2, GR5

$4.99

$

In Stock, Qty 10

0

20

Husqvarna 539990613

NUT, 3/8-16, WHIZLK

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539101237

FITTING, F6400-8-8-0

$12.99

$

In Stock, only 2 left!

0

22

Husqvarna 539113782

HYDRAULIC FITTING

$7.49

$

In Stock, only 3 left!

0

23

Husqvarna 539101238

FITTING, F6801-6-6-0

$15.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539106896

HYDRAULIC LINE

$

$

Not available

25

Husqvarna 539104722

HOSE, 7

$

$

Not available

26

Husqvarna 539111814

"T" ASSEMBLY

$

$

Not available

27

Husqvarna 539110837

"T" ASSEMBLY

$

$

Not available

28

Husqvarna 539102396

STRAIGHT FITTING

$

$

Not available

29

Husqvarna 539105168

CAP

$3.99

$

In Stock, only 3 left!

0

30

Husqvarna 539112671

10CC PUMP W/RTN'S
(Superseded to 539132144)

$

$

Not available

31

Husqvarna 539101165

FILTER HEAD

$

$

Not available

32

Husqvarna 539101202

CAP-HYDRO RESERVIOR

$24.99

$

In Stock, only 1 left!

0

33

Husqvarna 539102606

FILTER ELEMENT

$44.99

$

In Stock, Qty 8

0

34

Husqvarna 539105024

OIL TANK

$

$

Not available

35

Husqvarna 539106933

OIL FILTER BRACKET

$27.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539976978

NUT, 1/4-20, NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

37

Husqvarna 539990052

LOCKWASHER, 1/4

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539990072

HCS, 1/4-20 X 5/8, GR5

$3.99

$

In Stock, only 1 left!

0

39

Husqvarna 539990580

HCS, 1/4-20 X 3/4, GR5

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539990582

HCS, 3/8-16 X 1, GR5, WHIZLK

$

$

Not available

41

Husqvarna 539990598

WASHER, 1/4

$

$

Not available

42

Husqvarna 539103115

"O" RING, 3/4

$

$

Not available

43

Husqvarna 539103116

"O" RING, 1/2

$

$

Not available

44

Husqvarna 539103117

"O" RING, 3/8

$

$

Not available

45

Husqvarna 539103118

"O" RING FLARE, 3/8

$

$

Not available

46

Husqvarna 539103119

"O" RING FLARE, 1/2

$4.99

$

In Stock, only 3 left!

0
