iZ 4821 T (968999256) - Husqvarna 48" Zero-Turn Mower (2005-08) ACCESSORIES Parts Diagram

48" Zero-Turn Mower

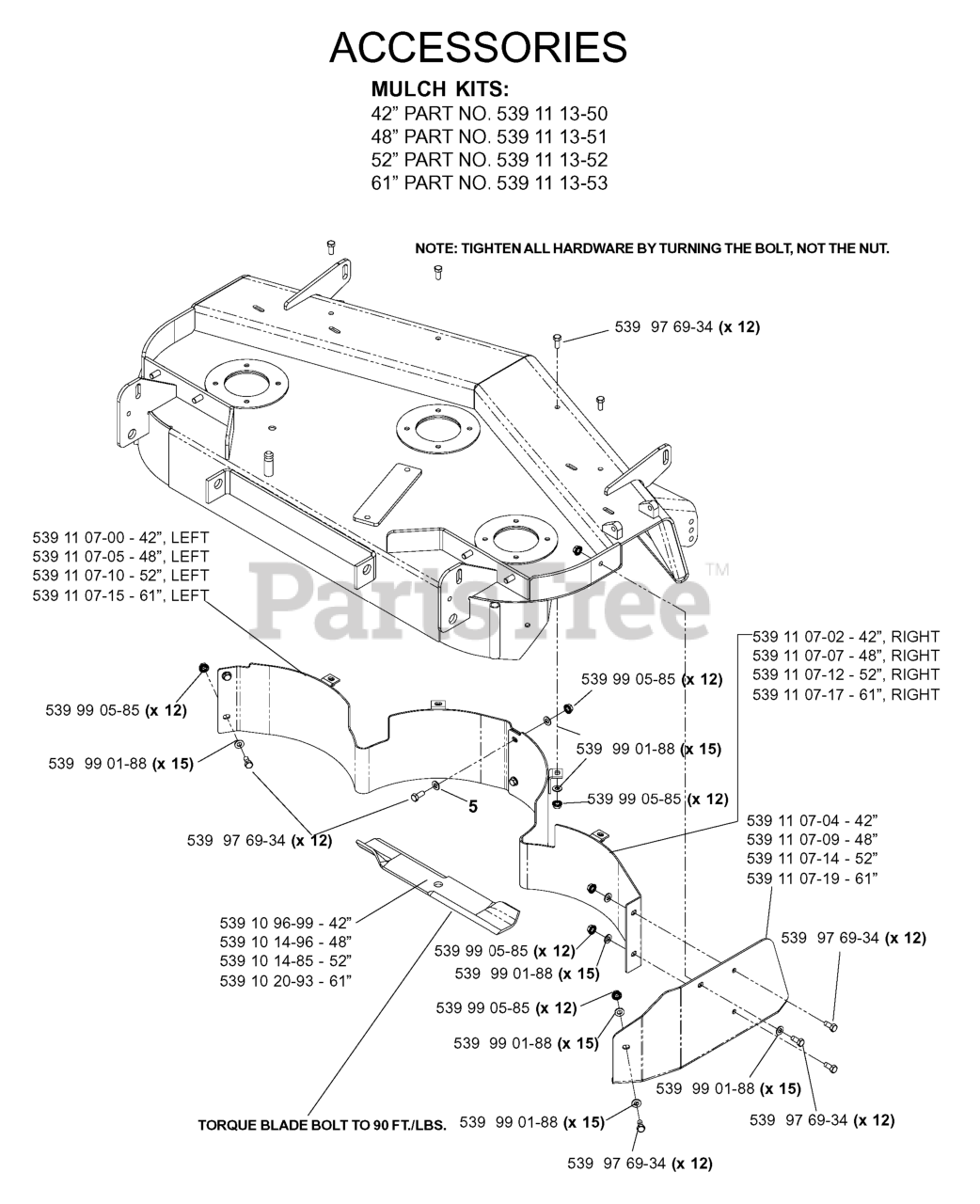

ACCESSORIES Parts Diagram

  • Title

539 99 05-85

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

539 11 07-02

Husqvarna 539110702

BAFFLE WLDMT, 42" R.H. MULCH

Note: 42, RIGHT

$

$

Not available

539 11 07-09

Husqvarna 539110709

MULCH CAP 48

Note: 48

$

$

Not available

539 11 07-00

Husqvarna 539110700

MULCH BAFFLE, LEFT, 42

Note: 42, LEFT

$

$

Not available

539 10 14-96

Husqvarna 539101496

BLADE, MULCH, 16 1/4"

Note: 48

$

$

Not available

539 97 69-34

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

539 11 07-15

Husqvarna 539110715

BAFFLE WLDMT, 61" L.H. MULCH

Note: 61, LEFT

$

$

Not available

539 11 07-05

Husqvarna 539110705

BAFFLE WLDMT 42" LH

Note: 48, LEFT

$

$

Not available

539 11 13-52

Husqvarna 539111352

MULCH KIT, 52 "

Note: 52 PART NO.

$

$

Not available

539 11 13-53

Husqvarna 539111353

MULCH KIT, 61 "

Note: 61 PART NO.

$323.99

$

Usually ships in 3-10 days

0

539 11 07-19

Husqvarna 539110719

MULCH CAP 61

Note: 61

$

$

Not available

539 10 20-93

Husqvarna 539102093

BLADE, MULCH 21"

Note: 61

$24.99

$

In Stock, only 3 left!

0

539 10 14-85

Husqvarna 539101485

BLADE, MULCH 18"

Note: 52

$26.99

$

In Stock, only 1 left!

0

539 11 07-17

Husqvarna 539110717

BAFFLE WLDMT 61" R.H. MULCH

Note: 61, RIGHT

$

$

Not available

539 11 13-51

Husqvarna 539111351

MULCH KIT, 48 "

Note: 48 PART NO.

$

$

Not available

539 99 01-88

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

539 11 07-07

Husqvarna 539110707

BAFFLE WLDMT 48 RH

Note: 48, RIGHT

$

$

Not available

539 11 13-50

Husqvarna 539111350

MULCH KIT, 42 "

Note: 42 PART NO.

$242.99

$

Usually ships in 3-10 days

0

539 10 96-99

Husqvarna 539109699

BLADE, MULCH, 14 5/8"
(Superseded to 539109681)

Note: 42

$

$

Not available

539 11 07-14

Husqvarna 539110714

MULCH CAP 52

Note: 52

$

$

Not available

539 11 07-10

Husqvarna 539110710

BAFFLE WLDMT, 52" L.H.

Note: 52, LEFT

$

$

Not available

539 11 07-12

Husqvarna 539110712

BAFFLE WLDMT, 52" R.H. MULCH

Note: 52, RIGHT

$193.99

$

Usually ships in 3-10 days

0

539 11 07-04

Husqvarna 539110704

MULCH CAP 42"

Note: 42

$85.99

$

Usually ships in 3-10 days

0

539 99 01-88

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

Note: TORQUE BLADE BOLT TO 90 FT./LBS.

$3.99

$

In Stock, Qty 20+

0
