iZ 4821 KAA (968999206) - Husqvarna 48" Zero-Turn Mower (2004-08) Deck Assembly 48" Parts Diagram

48" Zero-Turn Mower

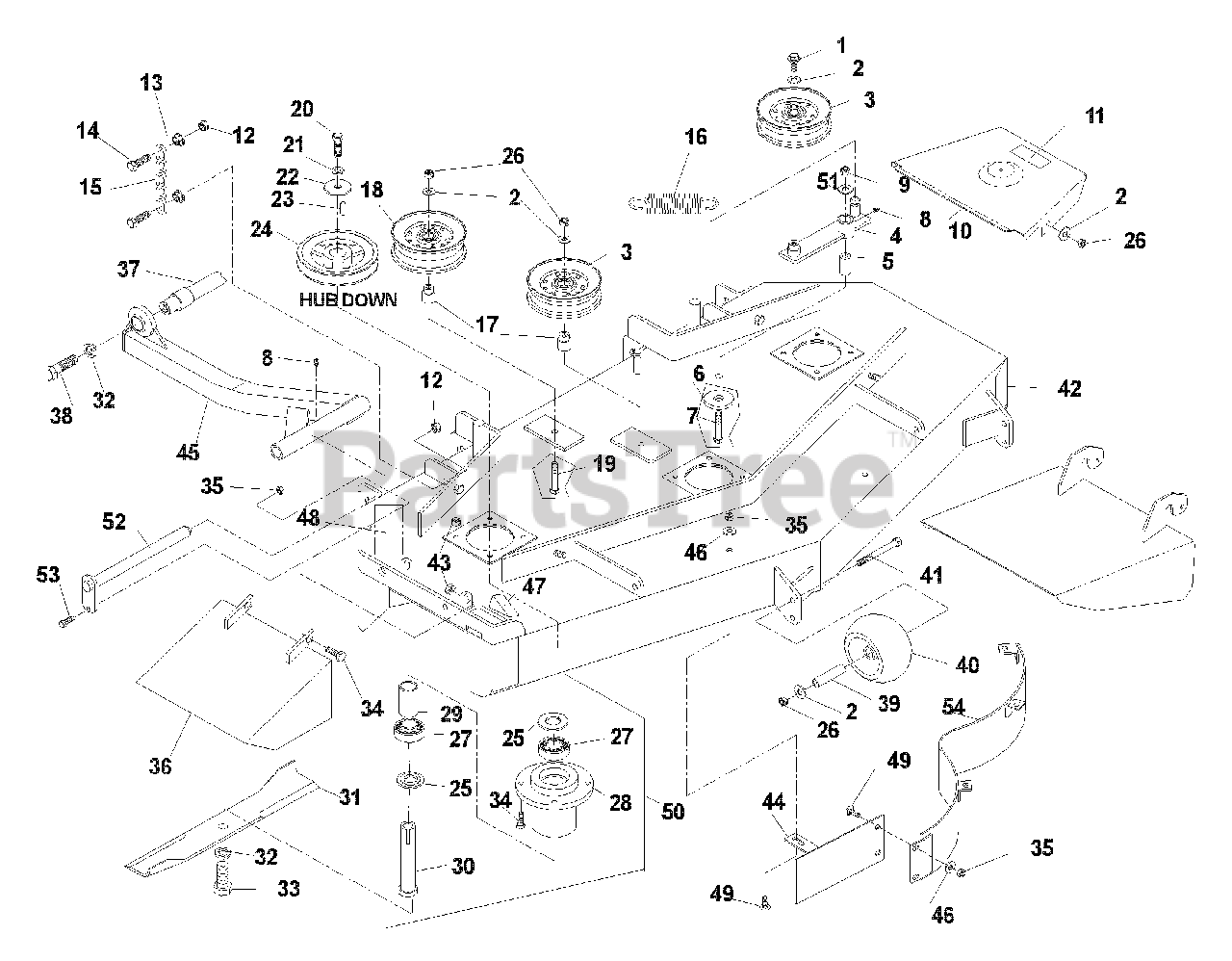

Deck Assembly 48" Parts Diagram

  • Title
1

Husqvarna 539990582

HCS 3/8C X 1 SERRATED HD

$

$

Not available

2

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, only 1 left!

0

4

$

$

Not available

5

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 2 left!

0

6

Husqvarna 539102243

SUPPORT WASHER

$

$

Not available

7

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

8

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

9

Husqvarna 539101331

NUT 1/2C NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 539104605

BELTSHIELD

$

$

Not available

11

Husqvarna 539102892

DECAL, NO STEP

$0.99

$

In Stock, only 2 left!

0

12

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.99

$

In Stock, only 3 left!

0

13

Husqvarna 539102582

7/16C WHIZ NUT

$

$

Not available

14

Husqvarna 539101175

HCS 7/16C X 1 1/2

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539102641

LIFT CHAIN

$8.99

$

Usually ships in 3-10 days

0

$12.99

$

In Stock, Qty 6

0

17

Husqvarna 539103295

IDLER BUSHING

$14.99

$

In Stock, only 4 left!

0

18

Husqvarna 539103258

IDLER PULLEY(TALL)

$53.99

$

In Stock, only 1 left!

0

19

Husqvarna 539102612

HCS 3/8C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

20

Husqvarna 539100141

HCS 7/16F X 1 1/2

$

$

Not available

21

Husqvarna 539990247

LOCKWASHER 7/16

$

$

Not available

22

Husqvarna 539106504

HEAVY WASHER

$

$

Not available

23

Husqvarna 539101995

KEY 1/4 SQ. X 1 1/8

$

$

Not available

$93.99

$

In Stock, Qty 5

0

25

Husqvarna 539107272

COMBO SPACER

$3.99

$

In Stock, only 2 left!

0

26

Husqvarna 539976979

NUT 3/8C NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 539102677

BEARING
(Superseded to 539115279)

$37.99

$

In Stock, Qty 20+

0

28

$

$

Not available

$13.99

$

In Stock, only 4 left!

0

30

$

$

Not available

31

Husqvarna 539100340

16 1/4" BLADE

$26.99

$

In Stock, only 3 left!

0

32

Husqvarna 539990333

LOCKWASHER 5/8

$1.99

$

In Stock, Qty 6

0

33

Husqvarna 539103299

HCS 5/8F X 1 1/4

$

$

Not available

34

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 1 left!

0

35

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539104546

DEFLECTOR CHUTE

$169.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539104197

STRUT MOUNT

$

$

Not available

38

Husqvarna 539104199

HCS 5/8C X 2 GR.5

$3.99

$

Usually ships in 3-10 days

0

39

$

$

Not available

40

Husqvarna 539102643

ANTI-SCALP ROLLER

$

$

Not available

41

Husqvarna 539102754

HCS 3/8C X 3 1/2

$4.99

$

In Stock, Qty 13

0

42

Husqvarna 539105779

DECK W/DECALS

$

$

Not available

43

Husqvarna 539990717

NUT 5/16C, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

44

Husqvarna 539105444

CENTER BAFFLE

$

$

Not available

45

Husqvarna 539104609

STRUT - RT
(Superseded to 539108350)

$667.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539104621

STRUT - LT
(Superseded to 539108351)

Note: (NOT SHOWN)

$169.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539990692

5/16 FLAT WASHER
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

47

Husqvarna 539913010

DECAL, CPSC

$4.99

$

In Stock, only 1 left!

0

48

Husqvarna 539100344

DECAL, DANGER

$

$

Not available

48

Husqvarna 539103687

48" DECK BELT
(Superseded to 539111949)

Note: (NOT SHOWN)

$

$

Not available

49

Husqvarna 539990799

CARRIAGE BOLT
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

50

Husqvarna 539103298

COMPLETE HOUSING
(Superseded to 539107410)

Note: (ITEMS 25 THRU 30)

$

$

Not available

51

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

52

$40.99

$

In Stock, only 3 left!

0

53

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

54

Husqvarna 539105448

MAIN BAFFLE

$364.99

$

In Stock, only 1 left!

0
