iZ 4821 - Husqvarna 48" Zero-Turn Mower (2003-03) PARKING BRAKE Parts Diagram

48" Zero-Turn Mower

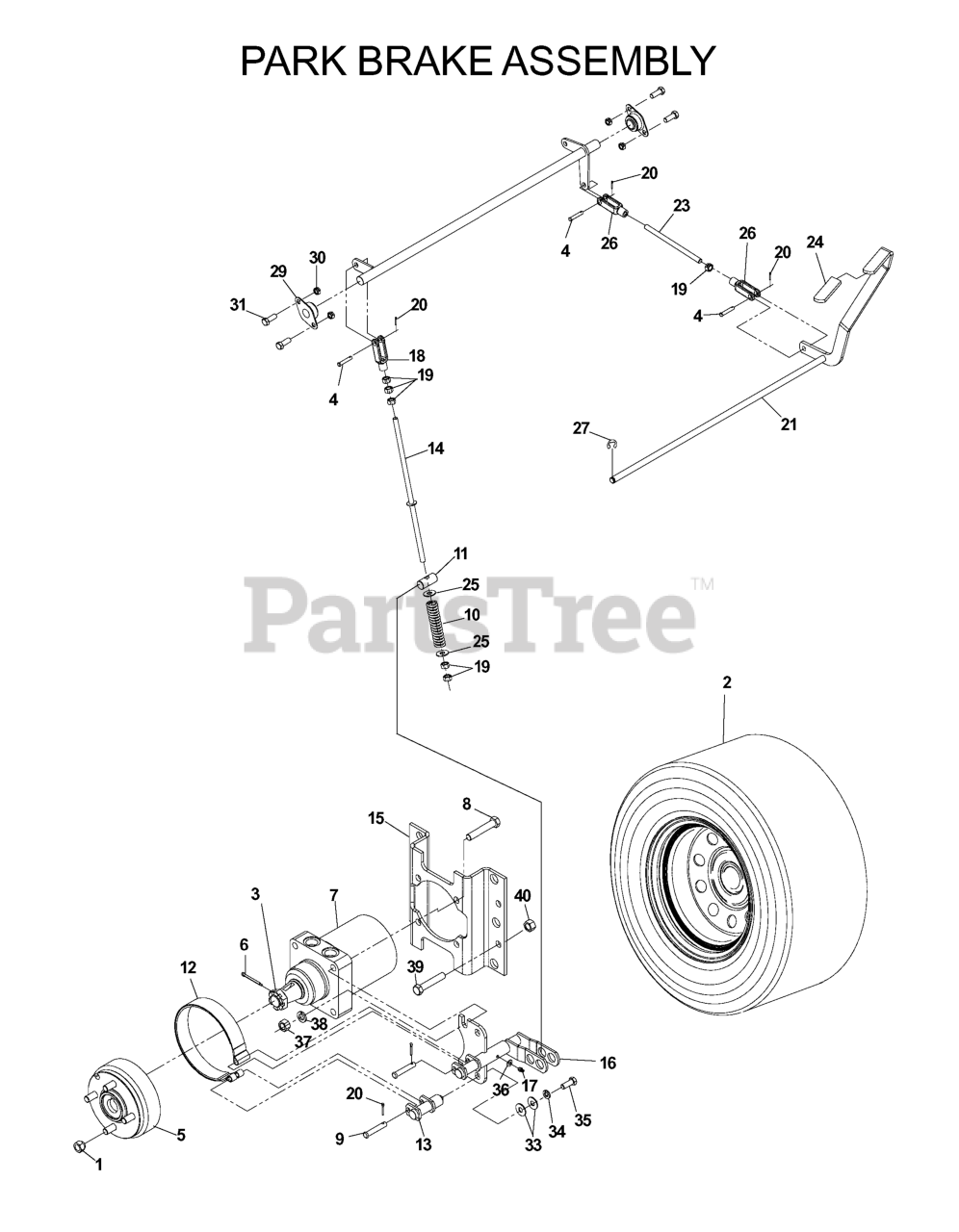

PARKING BRAKE Parts Diagram

  • Title

15

Husqvarna 539106989

MOTOR STANDOFF

$48.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$4.99

$

In Stock, Qty 19

0

5

Husqvarna 539102415

HUB W/BRAKE DRUM

$

$

Not available

24

Husqvarna 539105036

GRIP, PARK BRAKE

$6.49

$

In Stock, only 2 left!

0

39

Husqvarna 539990622

HCS 1/2C X 1 1/4 SERRATED HEAD

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539990258

NUT HEX 1/2

$4.99

$

In Stock, Qty 14

0

23

Husqvarna 539106971

LINKAGE - SHORT

$2.99

$

Usually ships in 3-10 days

0

539107392

Husqvarna 539107392

RIM.12X7.GRAY.+1".OFFSET.ZTR
(Superseded to 539106882)

$

$

Not available

22

Husqvarna 539106969

BRAKE CROSS SHAFT

$33.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539106990

BRAKE WLDMNT

$

$

Not available

3

Husqvarna 539101468

NUT 3/4-16 HEX SLTD GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539977465

YOKE-3/8-24 PLTD

$24.99

$

In Stock, Qty 11

0

2

Husqvarna 539106882

WHEEL/TIRE.ASM.23X8.5-12.GREY

$

$

Not available

6

Husqvarna 539104288

PIN COTTER 4MM X 45MM

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539102822

BRAKE BAND

$

$

Not available

8

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

36

Husqvarna 539103547

WASHER

$0.99

$

In Stock, only 2 left!

0

33

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

13

Husqvarna 539106873

BRAKE BAND SUPPORT

$34.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539102817

COMPRESSION SPRING

$

$

Not available

14

Husqvarna 539106972

LINKAGE

$10.99

$

Usually ships in 3-10 days

0

539106883

Husqvarna 539106883

WHEEL/TIRE.ASM.23X10.5-12.GREY

$339.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539102797

FLANGE BEARING

$9.49

$

Usually ships in 3-10 days

0

11

Husqvarna 539102821

TRUNION PIN

$5.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 539101949

E-RING 1/2 (2 2)

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

19

Husqvarna 539990155

NUT 3/8F

$4.99

$

In Stock, Qty 16

0

4

Husqvarna 539977703

CLEVIS PIN 3/8 X 1 1/8

$5.99

$

In Stock, Qty 11

0

35

Husqvarna 539106791

HEX BOLT 3/8 X 1"

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539102843

WASHER, 7/16 DISC SPRING
(Superseded to 539115528)

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539106888

BRAKE LEVER WLDMNT

$

$

Not available

539107432

Husqvarna 539107432

TIRE - 23X8.5-12
(Superseded to 522905001)

$399.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

539912234

Husqvarna 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

28

Husqvarna 539990155

NUT 3/8F

$4.99

$

In Stock, Qty 16

0

539105983

Husqvarna 539105983

RIM 0 OFFSET 8.5" WIDE

$

$

Not available

30

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

1

Husqvarna 539101173

LUG NUT 1/2F

$

$

Not available

38

Husqvarna 539990254

WASHER 1/2" SPLIT LOCK

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539977465

YOKE-3/8-24 PLTD

$24.99

$

In Stock, Qty 11

0

7

Husqvarna 539104417

MB WHEEL MOTOR

$1092.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539102746

CLEVIS PIN

$3.99

$

Usually ships in 3-10 days

0

539107431

Husqvarna 539107431

TIRE.TURF.MASTER.23X10.5-12

$423.99

$

Usually ships in 3-10 days

0
