iZ 4821 (968999705) - Husqvarna 48" Zero-Turn Mower (2008-12) 48" Cutting Deck Parts Diagram

48" Zero-Turn Mower

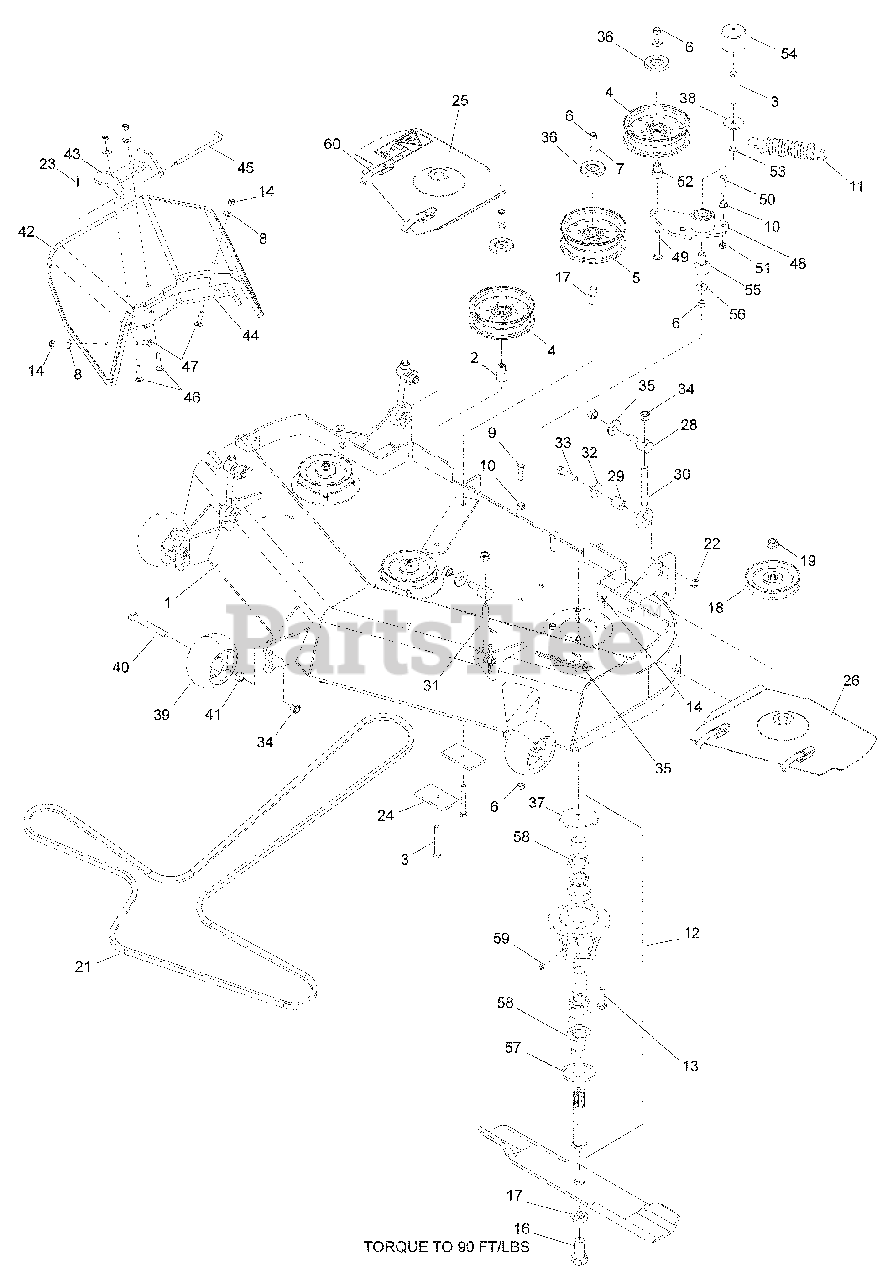

48" Cutting Deck Parts Diagram

  • Title
1

Husqvarna 539111376

DECK w/DECALS

$

$

Not available

2

Husqvarna 539103295

BUSHING, IDLER

$14.99

$

In Stock, only 4 left!

0

3

Husqvarna 539101341

HCS 3/8-16 x 3

$5.99

$

In Stock, Qty 12

0

4

Husqvarna 539103257

PULLEY, IDLER

$74.99

$

In Stock, only 4 left!

0

5

Husqvarna 539103258

PULLEY, IDLER

Note: (TALL)

$53.99

$

In Stock, only 1 left!

0

6

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 522023401

WASHER 3/8 THICK

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 539990692

WASHER 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 539976941

HCS 3/8-16 x 1¼

$4.99

$

In Stock, only 1 left!

0

10

Husqvarna 539990613

NUT 3/8-16 WHIZLK

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539103256

SPRING, EXTENSION

$12.99

$

In Stock, Qty 5

0

12

Husqvarna 539131383

SPINDLE ASSEMBLY
(Superseded to 966956101)

$148.99

$

In Stock, only 2 left!

0

13

Husqvarna 539990627

HCS 5/16-18 x 1¼

$4.99

$

In Stock, only 1 left!

0

14

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 539100340

BLADE, 16¼

$26.99

$

In Stock, only 3 left!

0

16

Husqvarna 539103299

HCS 5/8-18 x 1¼

$

$

Not available

17

Husqvarna 539990333

WASHER 5/8 SPLIT LOCK

$1.99

$

In Stock, Qty 6

0

$43.99

$

In Stock, only 1 left!

0

19

Husqvarna 539130653

NUT ¾-16 FLANGE
(Superseded to 598490501)

$9.49

$

In Stock, only 2 left!

0

20

Husqvarna 539112120

HCS 7/16-20 x 1½ GR8

$30.99

$

In Stock, only 1 left!

0

21

Husqvarna 539111949

BELT, DECK

$

$

Not available

22

Husqvarna 539990839

NUT 7/16-14 HEX CTRLK GR A

$3.99

$

In Stock, only 3 left!

0

23

Husqvarna 539990365

PIN, COTTER 1/8 x ¾
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

24

Husqvarna 539103303

PAD
(Superseded to 539106504)

$

$

Not available

25

Husqvarna 539108686

BELT SHIELD ASSM RT

$218.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539108687

BELT SHIELD ASSM LT

$133.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539111812

DECAL, TUNNEL RAM

$14.99

$

Usually ships in 3-10 days

0

$18.99

$

Usually ships in 3-10 days

0

$7.99

$

Usually ships in 3-10 days

0

30

$18.99

$

In Stock, only 3 left!

0

31

Husqvarna 539114698

EYE BOLT ½-13

$27.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539109554

WASHER ½ SPRING

$

$

Not available

33

Husqvarna 539108073

HCS 7/16-14 x 1¾

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539101331

NUT ½-13 HEX NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

$4.99

$

In Stock, only 2 left!

0

36

Husqvarna 510254501

SHIELD, DUST

$

$

Not available

37

Husqvarna 539108450

DUST CAP, TOP

$5.99

$

In Stock, only 1 left!

0

38

Husqvarna 539111897

WASHER 3/8 SPECIAL

$

$

Not available

39

Husqvarna 539107610

WHEEL, GAUGE
(Superseded to 532133957)

$13.99

$

In Stock, Qty 10

0

40

Husqvarna 539108366

HCS ½-13 x 4

$6.99

$

In Stock, Qty 17

0

41

$4.99

$

In Stock, Qty 14

0

42

Husqvarna 539130778

CHUTE, DISCHARGE

$

$

Not available

43

Husqvarna 539130923

BRACKET, CHUTE

$43.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539130925

REINFORCEMENT, BRKT

$159.99

$

In Stock, only 1 left!

0

45

Husqvarna 539131813

PIN, CLEVIS

$7.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539102933

RHSNB 5/16-18 x 1½

$

$

Not available

47

Husqvarna 539100472

RHSNB 5/16-18 x 1¼

$3.99

$

In Stock, Qty 20+

0

48

Husqvarna 539130391

ARM, IDLER w/BEARINGS

$

$

Not available

49

Husqvarna 539130235

RHSNB 3/8-16 x 2¾

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539107042

HCS 3/8-16 x 1½ GR8

$3.99

$

In Stock, Qty 6

0

51

Husqvarna 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

In Stock, only 3 left!

0

52

Husqvarna 539130242

BUSHING, IDLER

$3.99

$

In Stock, only 4 left!

0

53

Husqvarna 539990122

WASHER 3/8 SAE FLT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

54

Husqvarna 539114823

CAP, VINYL

$3.99

$

In Stock, only 1 left!

0

55

Husqvarna 510206301

BEARING, PIVOT

$6.49

$

In Stock, only 2 left!

0

56

Husqvarna 539990517

WASHER 3/8 FLAT STD

$3.99

$

Usually ships in 3-10 days

0

57

Husqvarna 539108449

DUST CAP, BOTTOM

$4.99

$

In Stock, Qty 15

0

58

Husqvarna 539108754

SEAL, SHAFTL

$7.99

$

In Stock, Qty 7

0

59

Husqvarna 539977326

GREASE POPPET

$13.99

$

Usually ships in 3-10 days

0

60

Husqvarna 539109660

DRAW LATCH

$14.99

$

Usually ships in 3-10 days

0
