iZ 4821 (968999256) - Husqvarna 48" Zero-Turn Mower (2005-03) Deck Assembly (48") (Part 1) Parts Diagram

48" Zero-Turn Mower

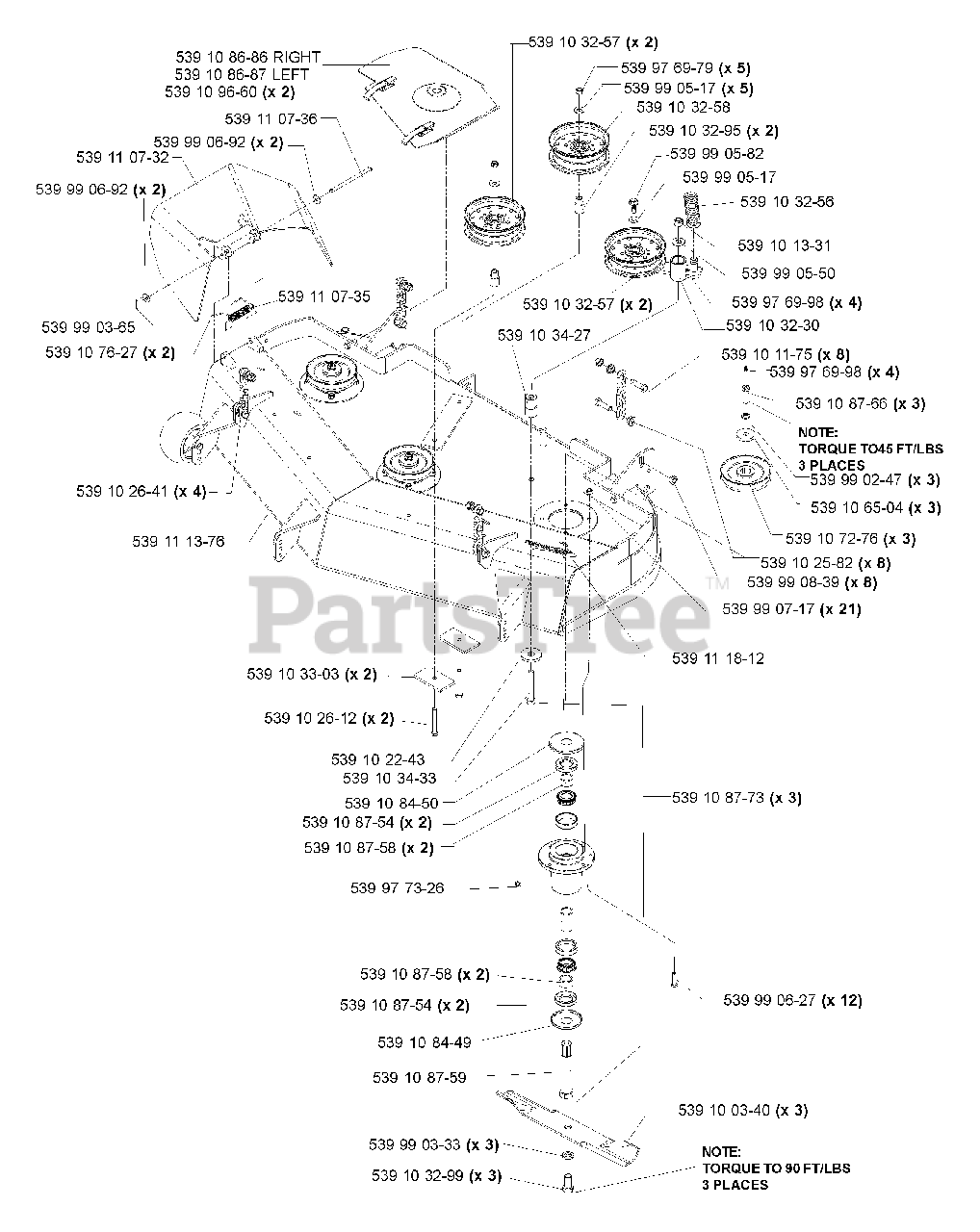

Deck Assembly (48") (Part 1) Parts Diagram

  • Title
539100340

Husqvarna 539100340

BLADE OEM 16 1/4"

$26.99

$

In Stock, only 3 left!

0

539101175

Husqvarna 539101175

HCS 7/16C X 1 1/2

$3.99

$

Usually ships in 3-10 days

0

539101331

Husqvarna 539101331

RP NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

539102243

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

539102582

Husqvarna 539102582

NUT 7/16C WHIZ

$

$

Not available

539102612

Husqvarna 539102612

SCREW 3/8C X 2 3/4 HEX CAP

$5.99

$

In Stock, only 3 left!

0

539102641

Husqvarna 539102641

LIFT CHAIN

$8.99

$

Usually ships in 3-10 days

0

539103230

$

$

Not available

539103256

$12.99

$

In Stock, Qty 6

0

539103257

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, only 1 left!

0

539103258

Husqvarna 539103258

IDLER PULLEY (TALL)

$53.99

$

In Stock, only 1 left!

0

539103295

Husqvarna 539103295

IDLER BUSHING

$14.99

$

In Stock, only 4 left!

0

539103299

Husqvarna 539103299

HCS 5/8F X 1 1/4

$

$

Not available

539103303

Husqvarna 539103303

SUPPORT PLATE
(Superseded to 539106504)

$

$

Not available

539103427

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 4 left!

0

539103433

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

539106504

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

539107276

Husqvarna 539107276

RP PULLEY - 42/48"
(Superseded to 539112141)

$43.99

$

Usually ships in 3-10 days

0

539107627

Husqvarna 539107627

CAP-SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

539108449

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 15

0

539108450

Husqvarna 539108450

TOP DUST CAP

$5.99

$

In Stock, only 1 left!

0

539108686

Husqvarna 539108686

48 BELT SHIELD ASM - RH

$218.99

$

Usually ships in 3-10 days

0

539108687

Husqvarna 539108687

48 BELT SHIELD ASM - LH

$133.99

$

Usually ships in 3-10 days

0

539108754

Husqvarna 539108754

SHAFT SEAL

$7.99

$

In Stock, Qty 11

0

539108758

$

$

Not available

539108759

Husqvarna 539108759

SPLINED SHAFT - 42/48"

$

$

Not available

539108766

Husqvarna 539108766

DRILLED BOLT 7/16-20 X 1 1/2"
(Superseded to 539112120)

$30.99

$

In Stock, only 1 left!

0

539108773

Husqvarna 539108773

SPINDLE ASSY - 52/61"
(Superseded to 966956101)

$148.99

$

In Stock, only 2 left!

0

539109660

Husqvarna 539109660

DRAW LATCH

$14.99

$

Usually ships in 3-10 days

0

539110732

Husqvarna 539110732

DISCHARGE CHUTE 48"

$53.99

$

In Stock, Qty 6

0

539110735

Husqvarna 539110735

SPRING - TORSION
(Superseded to 596646001)

$4.99

$

In Stock, only 3 left!

0

539110736

Husqvarna 539110736

PIN-CLEVIS 5/16 DIA X 5.19 ZD

$3.49

$

Usually ships in 3-10 days

0

539111376

Husqvarna 539111376

DECK W/DECALS 48" HUS

$

$

Not available

539111812

Husqvarna 539111812

DECAL, TUNNEL RAM 6"

$14.99

$

Usually ships in 3-10 days

0

539976979

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539976998

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

539977326

Husqvarna 539977326

PLUG-VENTED

$13.99

$

Usually ships in 3-10 days

0

539990247

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

539990333

Husqvarna 539990333

LOCKWASHER 5/8

$1.99

$

In Stock, Qty 6

0

539990365

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

539990517

Husqvarna 539990517

RP WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

539990550

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

539990582

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

539990627

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, Qty 9

0

539990692

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

539990717

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539990839

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.99

$

In Stock, only 3 left!

0
